JJJ 400kw diesel genset
5 week agoYuchai engines are developed using German FEV technology. The engine body and cylinder head are made of cast iron alloy, which is highly reinforced, and use an integral forged steel crankshaft and sliding bearings, which are small in size and light in weight, run stably, and have a major overhaul period of more than 12,000 hours. This engine set features a compact structure, large power reserve, high reliability, and good speed regulation performance.
Guohua Diesel Genset Introduction with Yuchai Engine
Genset Model | Output Power(KW) | Current (A) | Engine Model | Number of Cylinders | Bore x Stroke (mm) | Displacement (L) | Consumption (g/kw.h) | Dimensions (L × W × H) |
Weight (kg) | |
Main | Standby | |||||||||
GHDY33 | 30 | 33 | 54 | 4D24YG0 | 4 | 108*115 | 4.214 | 195 | 2000*780*1350 | 810 |
GHDY45 | 40 | 45 | 72 | YC4D75-D34 | 4 | 108*115 | 4.214 | 208 | 1850*650*1400 | 1000 |
GHDY55 | 50 | 55 | 90 | YC4D90-D34 | 4 | 108*115 | 6.871 | 208 | 1850*650*1400 | 1000 |
GHDY65 | 60 | 65 | 108 | YC4D100-D39 | 4 | 108*115 | 4.837 | 205 | 2400*900*1350 | 1300 |
GHDY90 | 80 | 90 | 144 | YC4A140-D30 | 6 | 108*125 | 6.871 | 210 | 1800*700*1500 | 1140 |
GHDY100 | 90 | 100 | 162 | YC4A155-D30 | 4 | 108*125 | 6.871 | 210 | 2500*900*1500 | 1140 |
GHDY140 | 120 | 140 | 180 | YC6A205-D30 | 6 | 108*132 | 7.2 | 200 | 2500*1000*1600 | 1600 |
GHDY80 | 70 | 80 | 126A | YC4A115-D30 | 4 | 108*132 | 7.255 | 210 | 1800*760*1500 | 1500 |
GHDY150 | 140 | 150 | 252 | YC6A230-D30 | 6 | 108*0125 | 7.255 | 205 | 2500*1000*1650 | 1600 |
GHDY160 | 150 | 160 | 270 | YC6A245-D30 | 6 | 108*132 | 7.2 | 200 | 2900*1200*1400 | 2500 |
GHDY220 | 200 | 220 | 360 | YC6MK350-D30 | 6 | 123*145 | 10.3 | 195 | 3100*1100*1700 | 2140 |
GHDY270 | 250 | 270 | 450 | YC6MK420-D30 | 6 | 123*145 | 10.338 | 195 | 3100*1100*1700 | 2500 |
GHDY330 | 300 | 330 | 540 | YC6K500-D30 | 6 | 129*155 | 12.16 | 192 | 3100*1100*1800 | 2800 |
GHDY350 | 320 | 350 | 576 | YC6K520-D30 | 6 | 129*155 | 12.16 | 192 | 3100*1100*1900 | 3330 |
GHDY400 | 350 | 400 | 630A | YC6K570-D30 | 6 | 129*165 | 12.16 | 192 | 3100*1100*1900 | 3300 |
GHDY440 | 400 | 440 | 720 | YC6T660-D31 | 6 | 145*165 | 16.35 | 195 | 3950*1100*2000 | 4200 |
GHDY460 | 420 | 460 | 756 | YC6T700L-D20 | 6 | 145*165 | 16.35 | 195 | 3950*1100*2000 | 4200 |
GHDY500 | 450 | 500 | 810 | YC6TD780-D31 | 6 | 152*180 | 19.598 | 195 | 4050*1050*2050 | 4100 |
GHDY550 | 500 | 550 | 900 | YC6TD840-D31 | 6 | 152*180 | 19.598 | 195 | 4000*1430*2050 | 4100 |
PYS-Y660 | 600 | 660 | 1080 | YC6C1020-D31 | 6 | 200*210 | 39.584 | 195 | 4700*2100*2000 | 7500 |
GHDY710 | 650 | 710 | 1170 | YC6C1070-D31 | 6 | 200*210 | 39.584 | 200 | 4700*1500*2050 | 7500 |
GHDY800 | 730 | 800 | 1314 | YC6C1220-D31 | 6 | 200*210 | 39.584 | 195 | 4700*1500*2050 | 7500 |
GHDY900 | 800 | 900 | 1440 | YC6C1320-D31 | 6 | 200*210 | 39.584 | 195 | 4750*1500*2050 | 7500 |
GHDY1100 | 1000 | 1100 | 1800 | YC12VC1680-D31 | 12 | 200*210 | 78.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1350 | 1200 | 1350 | 2160 | YC12VC2070-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1500 | 1350 | 1500 | 2430 | YC12V2270-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1600 | 1500 | 1600 | 2700 | YC12VC2510-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1800 | 1700KW | 1800kW | 3060A | YC12VC2700-D31 | 12 | 200*210 | 79.17 | 196 | 7500*2300*2800 | 15350 |
GHDY2000 | 1800KW | 2000kW | 3240A | YC16VC3000-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17000 |
GHDY2200 | 2000KW | 2200kW | 3600A | YC16VC3300-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17300 |
GHDY2400 | 2200KW | 2400kW | 3960A | YC16VC3600-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17700 |
GHDY600 | 550 | 600 | 990 | YC6TD900-D31 | 6 | 152*180 | 19.6 | 195 | 4000*1430*2050 | 4100 |
GHDY1000 | 900KW | 1000kW | 1620A | YC6C1520-D31 | 6 | 200*210 | 39.58 | 195 | 4750*1870*2480 | 8500 |
Features of Guohua Diesel Generator Sets:
1. Yuchai has been manufacturing diesel engines for over 40 years, with products widely used in military, civilian, and marine applications;
2. All power units for Yuchai generator sets are equipped with high-quality diesel engines produced by Yuchai itself;
3. The motors are all products from well-known domestic and international manufacturers, with main generators including: Meao Di, Stanford, Marathon, Lilliput, and Siemens;
4. Digital control system with high intelligence; can provide products with different functions such as remote computer control, group control, remote measurement, automatic parallel operation, and automatic fault protection according to users' different needs;
5. Powerful performance, capable of delivering rated power at altitudes below 1,000 meters and exceeding 110% of rated power within one hour;
6. Fuel consumption and lubricant consumption rates significantly outperform domestic counterparts;
7. Low vibration, low noise, and high reliability;
8. Low emissions, compliant with national environmental protection standards;
9. Product quality fully meets or exceeds national standards;
10. A warranty period of 14 months or 1,500 hours, the longest in the country;
11. Guohua generator sets are supported by 1,168 service stations nationwide, providing users with fast, timely, and high-quality service.

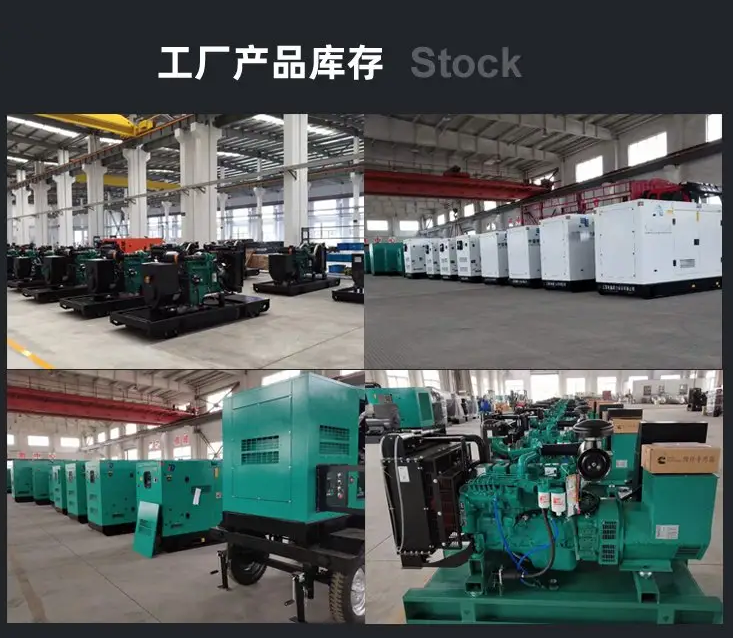

Product Picture


1. Fuel tank: offers an economical and flexible solution to meet the extensive specification requirements of diesel fuel tanks.
2. Warranty and service - backed by a comprehensive warranty.
3. Alternators - Various sizes of alternators offer selectable engine starting capability, 2/3 step windings with low reactance, low waveform distortion under non-linear loads and fault compensating short circuit capability. Industrial diesel engines provide reliable power, low emissions and fast response to load changes.
4. Control system - Provides full genset system integration, including remote automatic start/stop, precise frequency and voltage regulation, alarm and status message display, output metering.
Choose us, choose rest assured. We will provide you with reliable after-sales and body maintenance support, avoid your subsequent troubles.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.

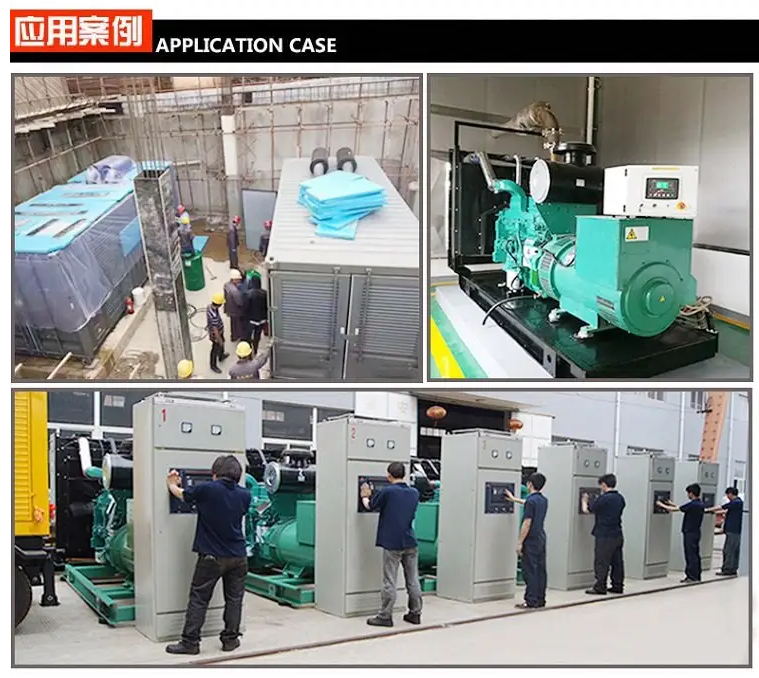

Application
