JJJ weichai diesel generator
5 week agoGuohua Diesel Genset Introduction with Yuchai Engine
Genset Model | Output Power(KW) | Current (A) | Engine Model | Number of Cylinders | Bore x Stroke (mm) | Displacement (L) | Consumption (g/kw.h) | Dimensions (L × W × H) |
Weight (kg) | |
Main | Standby | |||||||||
GHDY33 | 30 | 33 | 54 | 4D24YG0 | 4 | 108*115 | 4.214 | 195 | 2000*780*1350 | 810 |
GHDY45 | 40 | 45 | 72 | YC4D75-D34 | 4 | 108*115 | 4.214 | 208 | 1850*650*1400 | 1000 |
GHDY55 | 50 | 55 | 90 | YC4D90-D34 | 4 | 108*115 | 6.871 | 208 | 1850*650*1400 | 1000 |
GHDY65 | 60 | 65 | 108 | YC4D100-D39 | 4 | 108*115 | 4.837 | 205 | 2400*900*1350 | 1300 |
GHDY90 | 80 | 90 | 144 | YC4A140-D30 | 6 | 108*125 | 6.871 | 210 | 1800*700*1500 | 1140 |
GHDY100 | 90 | 100 | 162 | YC4A155-D30 | 4 | 108*125 | 6.871 | 210 | 2500*900*1500 | 1140 |
GHDY140 | 120 | 140 | 180 | YC6A205-D30 | 6 | 108*132 | 7.2 | 200 | 2500*1000*1600 | 1600 |
GHDY80 | 70 | 80 | 126A | YC4A115-D30 | 4 | 108*132 | 7.255 | 210 | 1800*760*1500 | 1500 |
GHDY150 | 140 | 150 | 252 | YC6A230-D30 | 6 | 108*0125 | 7.255 | 205 | 2500*1000*1650 | 1600 |
GHDY160 | 150 | 160 | 270 | YC6A245-D30 | 6 | 108*132 | 7.2 | 200 | 2900*1200*1400 | 2500 |
GHDY220 | 200 | 220 | 360 | YC6MK350-D30 | 6 | 123*145 | 10.3 | 195 | 3100*1100*1700 | 2140 |
GHDY270 | 250 | 270 | 450 | YC6MK420-D30 | 6 | 123*145 | 10.338 | 195 | 3100*1100*1700 | 2500 |
GHDY330 | 300 | 330 | 540 | YC6K500-D30 | 6 | 129*155 | 12.16 | 192 | 3100*1100*1800 | 2800 |
GHDY350 | 320 | 350 | 576 | YC6K520-D30 | 6 | 129*155 | 12.16 | 192 | 3100*1100*1900 | 3330 |
GHDY400 | 350 | 400 | 630A | YC6K570-D30 | 6 | 129*165 | 12.16 | 192 | 3100*1100*1900 | 3300 |
GHDY440 | 400 | 440 | 720 | YC6T660-D31 | 6 | 145*165 | 16.35 | 195 | 3950*1100*2000 | 4200 |
GHDY460 | 420 | 460 | 756 | YC6T700L-D20 | 6 | 145*165 | 16.35 | 195 | 3950*1100*2000 | 4200 |
GHDY500 | 450 | 500 | 810 | YC6TD780-D31 | 6 | 152*180 | 19.598 | 195 | 4050*1050*2050 | 4100 |
GHDY550 | 500 | 550 | 900 | YC6TD840-D31 | 6 | 152*180 | 19.598 | 195 | 4000*1430*2050 | 4100 |
PYS-Y660 | 600 | 660 | 1080 | YC6C1020-D31 | 6 | 200*210 | 39.584 | 195 | 4700*2100*2000 | 7500 |
GHDY710 | 650 | 710 | 1170 | YC6C1070-D31 | 6 | 200*210 | 39.584 | 200 | 4700*1500*2050 | 7500 |
GHDY800 | 730 | 800 | 1314 | YC6C1220-D31 | 6 | 200*210 | 39.584 | 195 | 4700*1500*2050 | 7500 |
GHDY900 | 800 | 900 | 1440 | YC6C1320-D31 | 6 | 200*210 | 39.584 | 195 | 4750*1500*2050 | 7500 |
GHDY1100 | 1000 | 1100 | 1800 | YC12VC1680-D31 | 12 | 200*210 | 78.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1350 | 1200 | 1350 | 2160 | YC12VC2070-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1500 | 1350 | 1500 | 2430 | YC12V2270-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1600 | 1500 | 1600 | 2700 | YC12VC2510-D31 | 12 | 200*210 | 79.17 | 196 | 6500*2300*2600 | 13350 |
GHDY1800 | 1700KW | 1800kW | 3060A | YC12VC2700-D31 | 12 | 200*210 | 79.17 | 196 | 7500*2300*2800 | 15350 |
GHDY2000 | 1800KW | 2000kW | 3240A | YC16VC3000-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17000 |
GHDY2200 | 2000KW | 2200kW | 3600A | YC16VC3300-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17300 |
GHDY2400 | 2200KW | 2400kW | 3960A | YC16VC3600-D31 | 16 | 200*210 | 105.56 | 203 | 7800*2300*2800 | 17700 |
GHDY600 | 550 | 600 | 990 | YC6TD900-D31 | 6 | 152*180 | 19.6 | 195 | 4000*1430*2050 | 4100 |
GHDY1000 | 900KW | 1000kW | 1620A | YC6C1520-D31 | 6 | 200*210 | 39.58 | 195 | 4750*1870*2480 | 8500 |
Features of Guohua Diesel Generator Sets:
1. Yuchai has been manufacturing diesel engines for over 40 years, with products widely used in military, civilian, and marine applications;
2. All power units for Yuchai generator sets are equipped with high-quality diesel engines produced by Yuchai itself;
3. The motors are all products from well-known domestic and international manufacturers, with main generators including: Meao Di, Stanford, Marathon, Lilliput, and Siemens;
4. Digital control system with high intelligence; can provide products with different functions such as remote computer control, group control, remote measurement, automatic parallel operation, and automatic fault protection according to users' different needs;
5. Powerful performance, capable of delivering rated power at altitudes below 1,000 meters and exceeding 110% of rated power within one hour;
6. Fuel consumption and lubricant consumption rates significantly outperform domestic counterparts;
7. Low vibration, low noise, and high reliability;
8. Low emissions, compliant with national environmental protection standards;
9. Product quality fully meets or exceeds national standards;
10. A warranty period of 14 months or 1,500 hours, the longest in the country;
11. Guohua generator sets are supported by 1,168 service stations nationwide, providing users with fast, timely, and high-quality service.

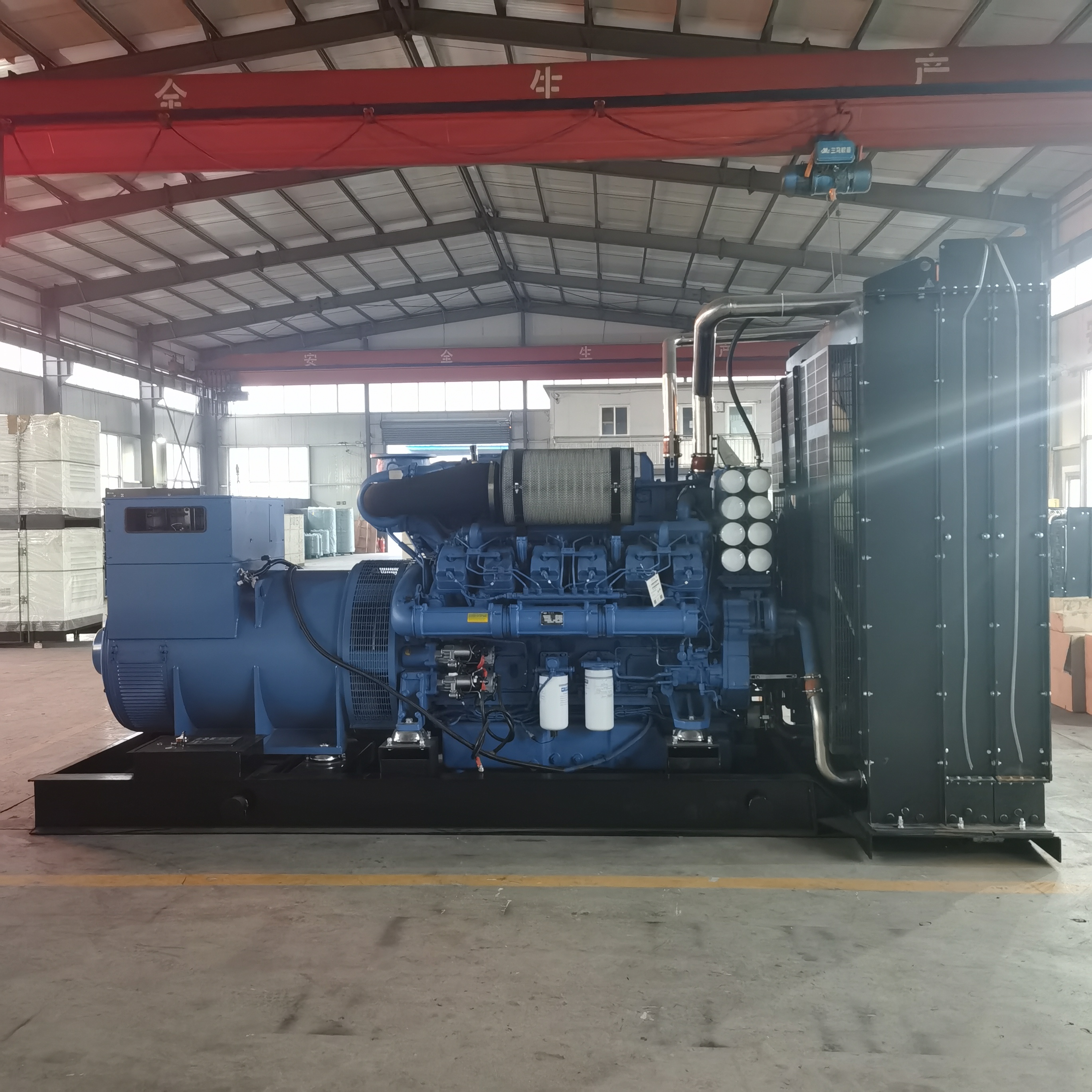

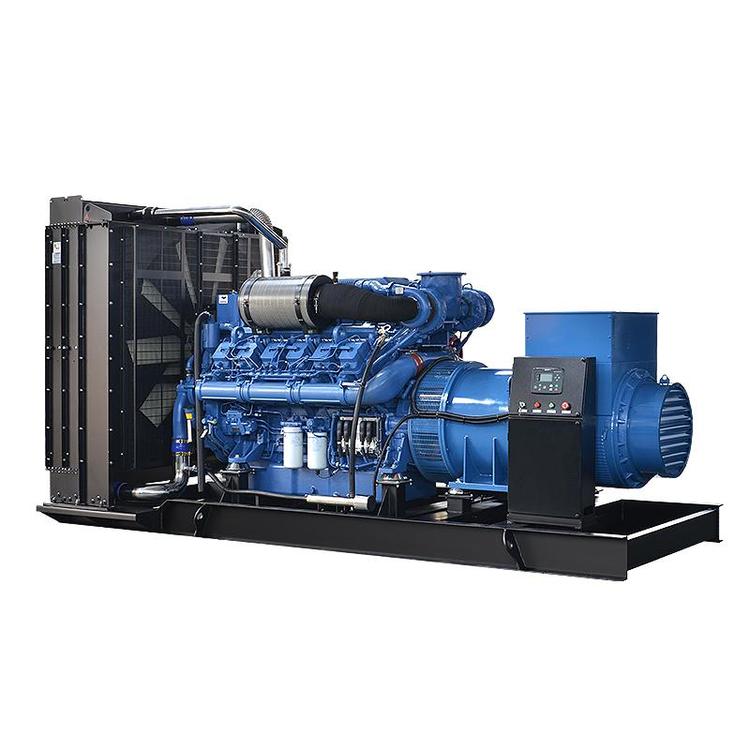

Product Picture
