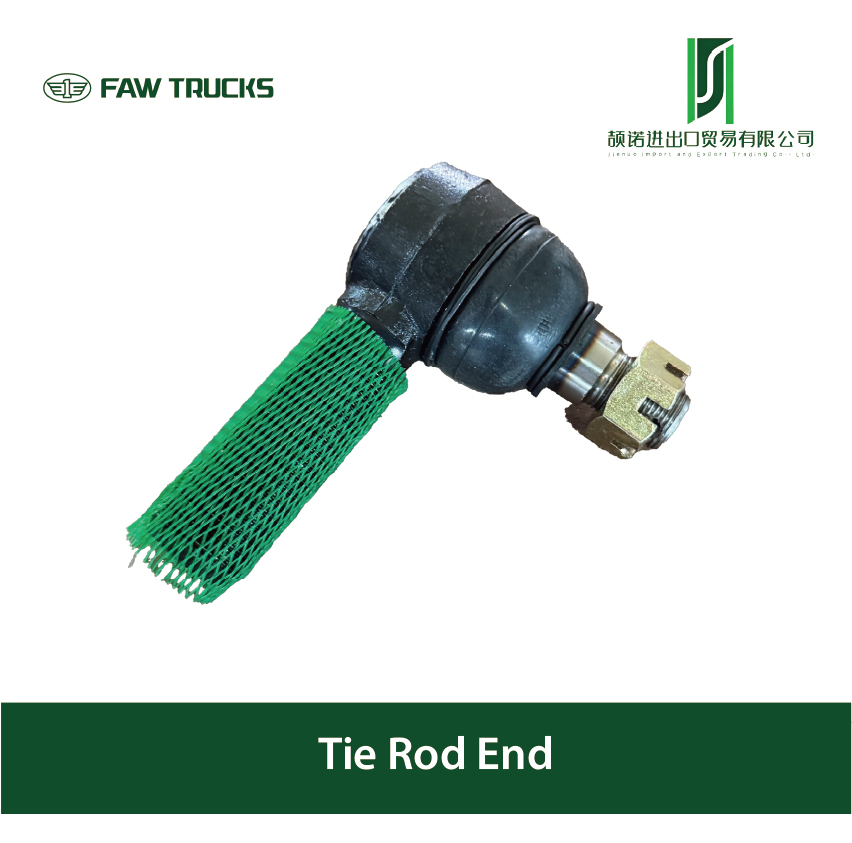

Tie Rod End For Truck

4 week ago

1 0 

5 month

Product details

The ball joint (also known as the steering ball joint or ball joint pin) is a key component in the steering system, responsible for connecting the steering rod to the steering knuckle (or wheel hub), allowing the wheels to turn flexibly. The following is a detailed introduction about the truck steering ball joint:

1. Function and Function

Transmitting steering force: The steering force of the steering wheel is transmitted to the wheels through the steering rod.

Multi directional rotation: The ball joint structure allows the wheels to swing up and down during steering (adapting to suspension motion) while maintaining steering control.

Reduce friction: The internal ball seat and lubricant design ensure smooth rotation and reduce wear.

2. Main components

Ball head pin: Steel spherical head, usually surface hardened to improve wear resistance.

Ball seat (bearing sleeve): A wear-resistant material (such as polyurethane or metal) that wraps around the ball joint pin to reduce friction.

Dust cover: Made of rubber or polyurethane material, it prevents dust and moisture from entering and keeps the lubricating grease clean.

Lubricating grease: Internally filled with specialized lubricating grease to reduce wear and corrosion.

3. Common types

Upper Ball Joint: connects the upper control arm to the steering knuckle, usually bearing a small load.

Lower Ball Joint: connects the lower control arm to the steering knuckle, bearing greater weight and impact force.

Integrated vs replaceable: Some trucks use integrated ball joints (integrated with the control arm), which need to be replaced as a whole; The independent ball head can be replaced separately.

4. Symptoms of malfunction

Abnormal noise: make a "clunking" sound when turning (due to damaged dust cover causing lubrication failure).

Loose steering: The virtual position of the steering wheel increases and the handling decreases.

Abnormal tire wear: Loose ball joint leads to inaccurate wheel alignment.

Oil leakage: The dust cover is broken and lubricating grease is leaking out.

5. Maintenance and replacement

Regular inspection: During maintenance, check if the dust cover is damaged and if there is any gap between the ball joints.

Lubrication: Some ball joints are equipped with oil nozzles and need to be regularly lubricated with grease (those without oil nozzles are sealed).

Replacement steps:

Lift the vehicle and remove the wheels.

Remove the fixing bolts of the steering rod or control arm.

Use a specialized tool (ball head separator) to press out the old ball head.

Install the new ball joint and tighten the bolts according to the torque requirements.

Perform four-wheel alignment to ensure correct wheel angles.
