Paper Collating Machine

Paper Collating Machine

Introduction of the page matching machine:

The page matching machine is a customized model, which can be selected from 4-36 pairs. It is mainly suitable for the matching page of a single sheet of paper, but it has requirements for the flatness of the paper (the tilt is too large and the paper cannot be bent). Applicable paper size range is wide, the minimum size is 180*70 mm, and the maximum size is 1200 mm*800 mm. The main models are A4 model, A3 model, B3 model, positive four-open, A2 model, B2 model, A1 model. The products include calendar, wall calendar, and joint order (with number) ), magazines, picture albums, brochures, peritoneal paper, carbon-free copy paper, wallpaper, writing paper, cardboard, kraft paper, PP plastic paper, sponge paper, test paper, etc.

Product description:

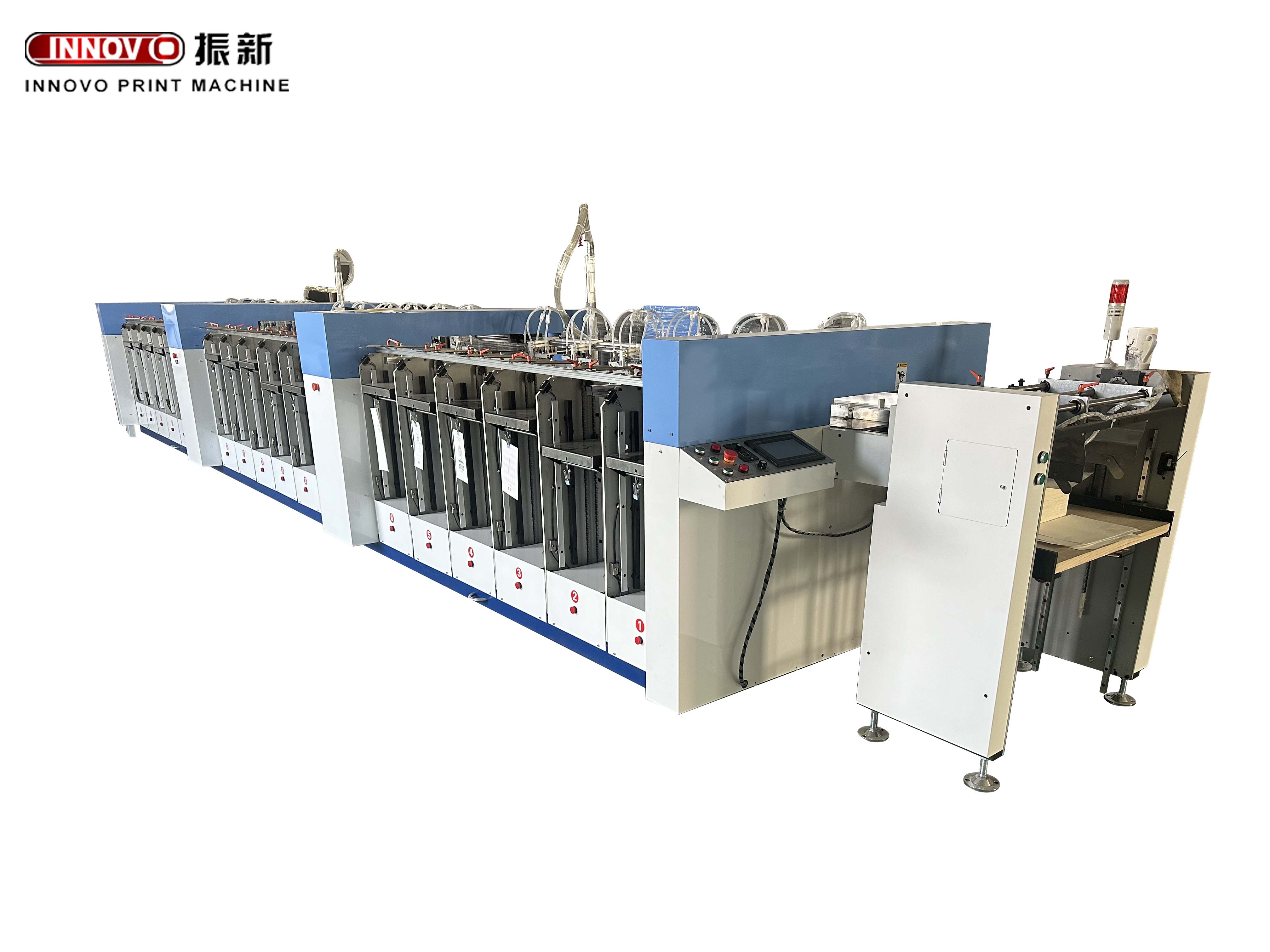

Machine features: The machine is a horizontal single sheet matching machine, and the mechanism is a cam connecting rod reciprocating mechanism. Each group of paper feed is equipped with a motor to achieve automatic lifting and is equipped with ultrasonic sensors to detect missing sheets and multiple sheets to ensure product arrangement and quantity accuracy; servo motor control synchronous belt operation; paper receiving is non-stop receiving, and the whole machine display screen set Medium control, convenient operation, and all data are clear at a glance.

Product model and specifications: a total of 7 models (length × width) mm vertical

A4（320×240） A3（420×320） B3（500×350） （540×390）

A2（650×450） B2（700×500） A1(800×600)

Product structure: two parts of page matching machine + automatic paper delivery machine

Technicai parameter：
