FSK aluminum Tape

3 week ago

0 0 

Kunshan Jieyudeng Intelligent Technology Co., Ltd.

5 year

Product details

The FSK aluminum Tape is composed of aluminum foil, fiberglass mesh cloth (or kraft paper), and adhesive layer, and has a reinforced structure to enhance tensile strength and thermal insulation performance.

Name	FSK Aluminum tape/Reinforced aluminum foil tape/Aluminum Foil Tape
Feature	Strong viscosity, high temperature resistance, sealing, insulation, waterproofing, shielding, conductive.
Material	Aluminum foil+fiberglass mesh or kraft paper+pressure-sensitive adhesive+release paper
Thickness	0.025-0.07mm (aluminum layer) as You Need
Width	48mm,50mm,60mm,100mm or as You Need
Length	20m, 50m or as You Need
Peel strength	18-27N/25mm
Tensile strength	112N/25mm
Standard specifications	50mm * 0.15mm * 20m
Applicated Temperature	-20 ºC to 120 ºC

Composite layered design

Surface layer: Soft aluminum foil (usually 7 μ m thick), providing high reflectivity (≥ 95%) and metal barrier.

Middle layer: Glass fiber mesh reinforcement (such as 8 × 12/100mm three-dimensional mesh), significantly improving tensile strength and tear resistance.

Bottom layer: Kraft paper (about 25 grams) or flame-retardant paper, providing basic support and flame retardancy.

Adhesive layer: Acrylic pressure-sensitive adhesive (partially containing flame retardant), with high initial adhesion, weather resistance, and long-lasting bonding strength.

Substrate material

Use silicone isolation paper or white coated release paper to prevent adhesive layer adhesion and facilitate construction.

Core performance characteristics

1. Excellent high temperature resistance performance

2. Excellent tensile strength and tear resistance

3. Excellent heat reflection and insulation performance

4. Excellent sealing performance (waterproof, moisture-proof, and gas resistant)

5. Excellent fire resistance and flame retardancy

6. Good weather resistance and chemical resistance

7. Reliable insulation performance (electrical, thermal)

8. Stable size, not easily shrunk or deformed

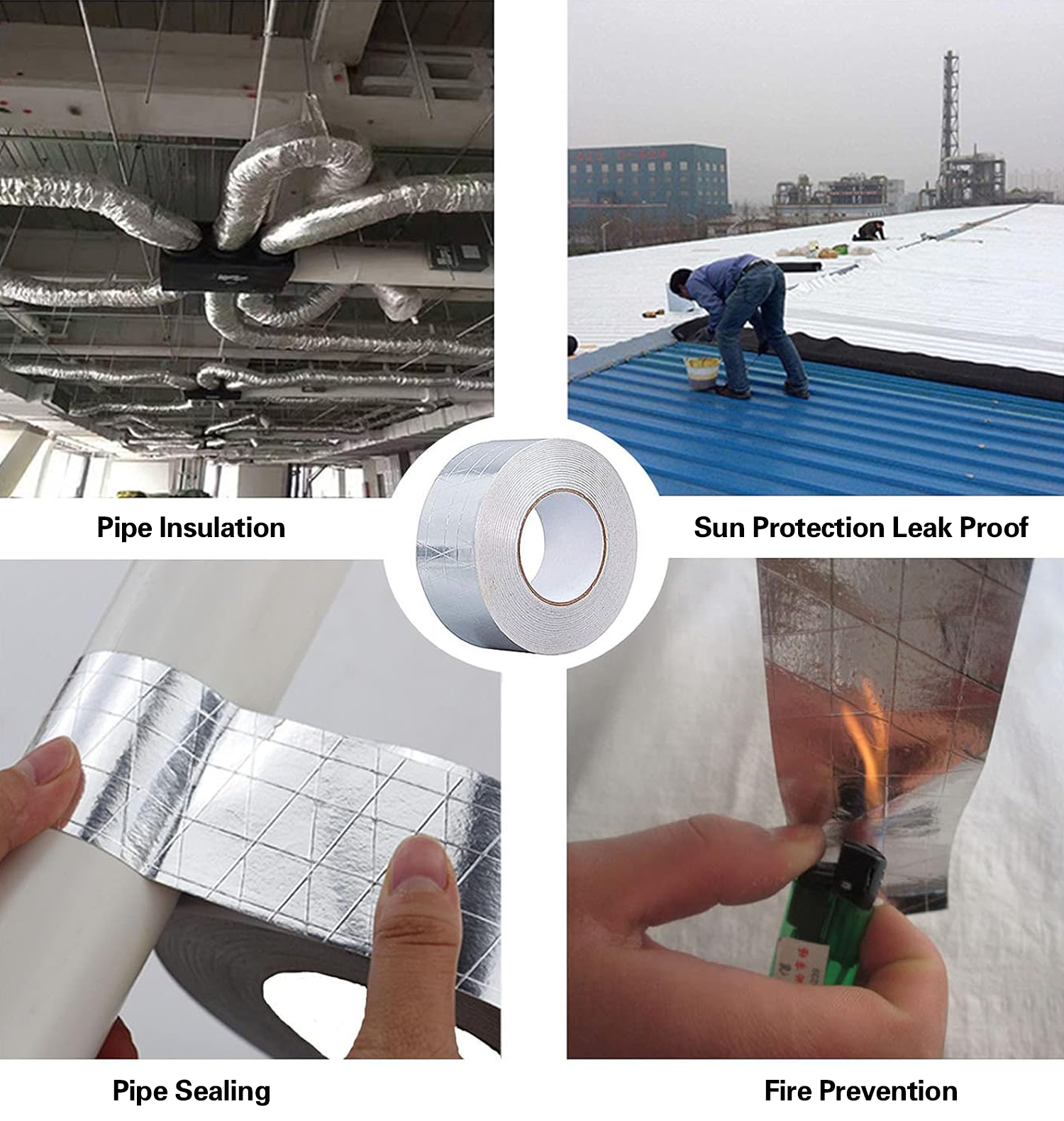

Application area

FSK Aluminum tape(Reinforced aluminum foil tape) is a high-performance composite material specifically designed for insulation, sealing, and protective engineering. It combines the advantages of multiple materials and is widely used in fields such as construction, HVAC, and industrial packaging.

Building insulation engineering

External protective sealing of wall/roof/floor insulation layer, steel structure roof soundproof veneer.

Used for waterproof sealing of glass wool board and rock wool composite board joints to prevent thermal bridging effect.

HVAC

The joint fitting and water vapor sealing of the air duct system (glass wool board air duct, galvanized iron sheet air duct).

Repair of insulation nail punctures and wrapping of pipeline insulation sleeves (such as air conditioning refrigerant pipes).

Industrial protection

Export equipment with moisture-proof, anti mold, and anti-corrosion packaging; Insulation for automotive/ship pipelines.

Electronic component heat dissipation assistance (requires insulation layer).

Special purpose

Shielding electromagnetic interference (such as wrapping data cables, inner walls of chassis), and preventing radiation.
