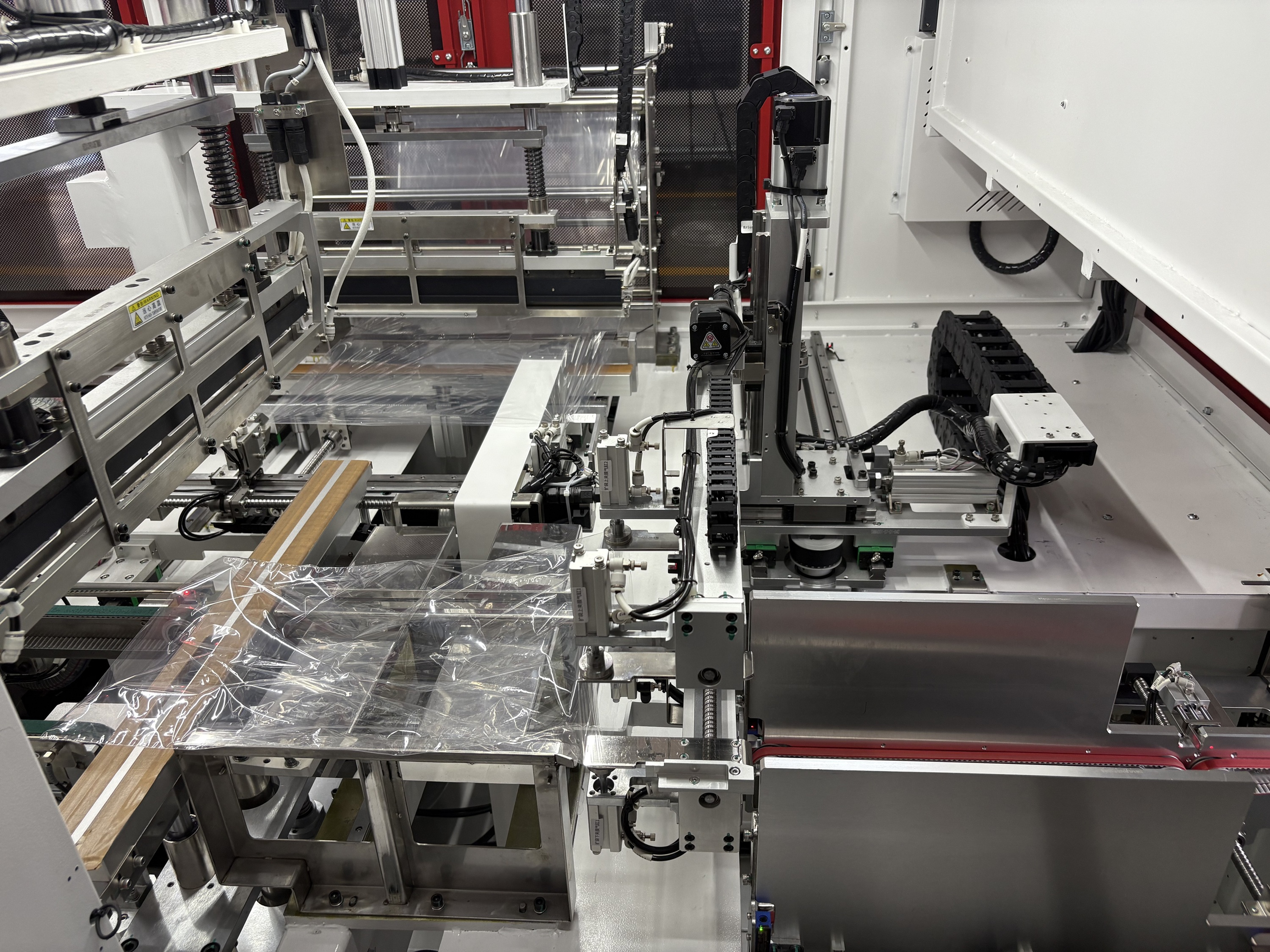

Corner Edge Cutting Machine
3 week ago
| Model | QJ-250 | QJ-400 | SM-5030LX | SM-5030LH |
| Machine Dimension(mm) | 2300 X 1400 X 1900 mm | 2600 X 1900 X 1900 mm | 1872 X 1035 X 1305 mm | 2372 X 1035 X 1305 mm |
| Tunnel Chamber Size(mm) | / | / | 1500 X 500 X 300 mm | 2000 X 500 X 300 mm |
| Minimum Packing Size(mm) | 70 X 70 X 30 mm | 250 X 250 X 80 mm | / | / |
| Maximum Packing Size(mm) | 250 X 250 X 150 mm | 400 X 400 X 250 mm | 1300 X 400 X 250 mm | 1800 X 400 X 250 mm |
| Maximum Packing Weight(Kg) | 5-8 Kgs | 5-8 Kgs | / | / |
| Sealing Blade Length | 450 mm | 600 mm | / | / |
| Packing Speed | 800-1200 (Pack per hour) | 800-1000 (Pack per hour) | / | / |
| Net Weight(Kg) | 1200 Kgs | 1500 Kgs | 650 Kgs | 700 Kgs |
| Working Platform Height(mm) | 850±50 mm | 850±50 mm | 850±50 mm | 850±50 mm |
| Power(Kw) | 5 Kw | 7.5 Kw | 16 Kw | 20 Kw |
| Power Source | 1PH 220V 50Hz | 1PH 220V 50Hz | 3PH 380V 50Hz | 3PH 380V 50Hz |
| Air Source(Kg/cm²) | 6-8 kg/cm² | 6-8 kg/cm² | / | / |
| Applicable Film | POF Thinckness 0.019-0.038 mm | POF Thinckness 0.019-0.038 mm | POF | POF |
