LED-PET Explosion-Proof Tube

Product Introduction

Product Features

• Light Homogenization: The white LED-PET heat-shrinkable tube converts LED fluorescent tube point light sources into uniform surface light sources, achieving excellent light homogenization.
• Optical Diffusion Principle: When light passes through media with different refractive indices, it undergoes multiple refractions, reflections, and scatterings to realize optical diffusion.
• High Performance: Light transmittance reaches 85-93%, haze is 95-99%, and both can be customized to meet diverse needs.
• Eco-Friendly: Complies with the EU RoHS directive. It is mercury-free, UV-free, and pollutant-free, energy-saving and low-carbon, outperforming traditional energy-saving lamps.

Suitable Applications

Operating Indicators

• Initial shrinkage temperature: 60°C
• Final shrinkage temperature: 125°C
• Operating temperature range: -55°C to 125°C

Shrinkage Method

1. Cutting: Add 5mm to each end of the glass tube length for the heat-shrinkable tube.
2. Preparation: Wear clean gloves, sleeve the cut tube onto an alcohol-cleaned and dried glass tube.
3. Shrinkage: Place in a 75-85°C constant-temperature thermal cycle tunnel furnace for 1-2 minutes. After shrinkage, check for complete shrinkage; re-shrink if needed. Avoid overheating to prevent crystallization (black spots).
4. Finishing: After cooling, trim edges with a utility knife and inspect appearance.

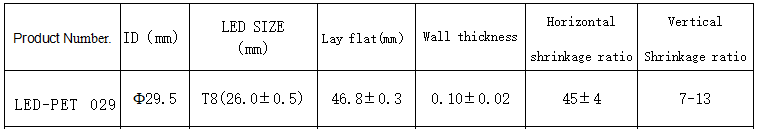

Product Specifications

Technical Performance
