JDGT-BE cake tray machine
3 week ago

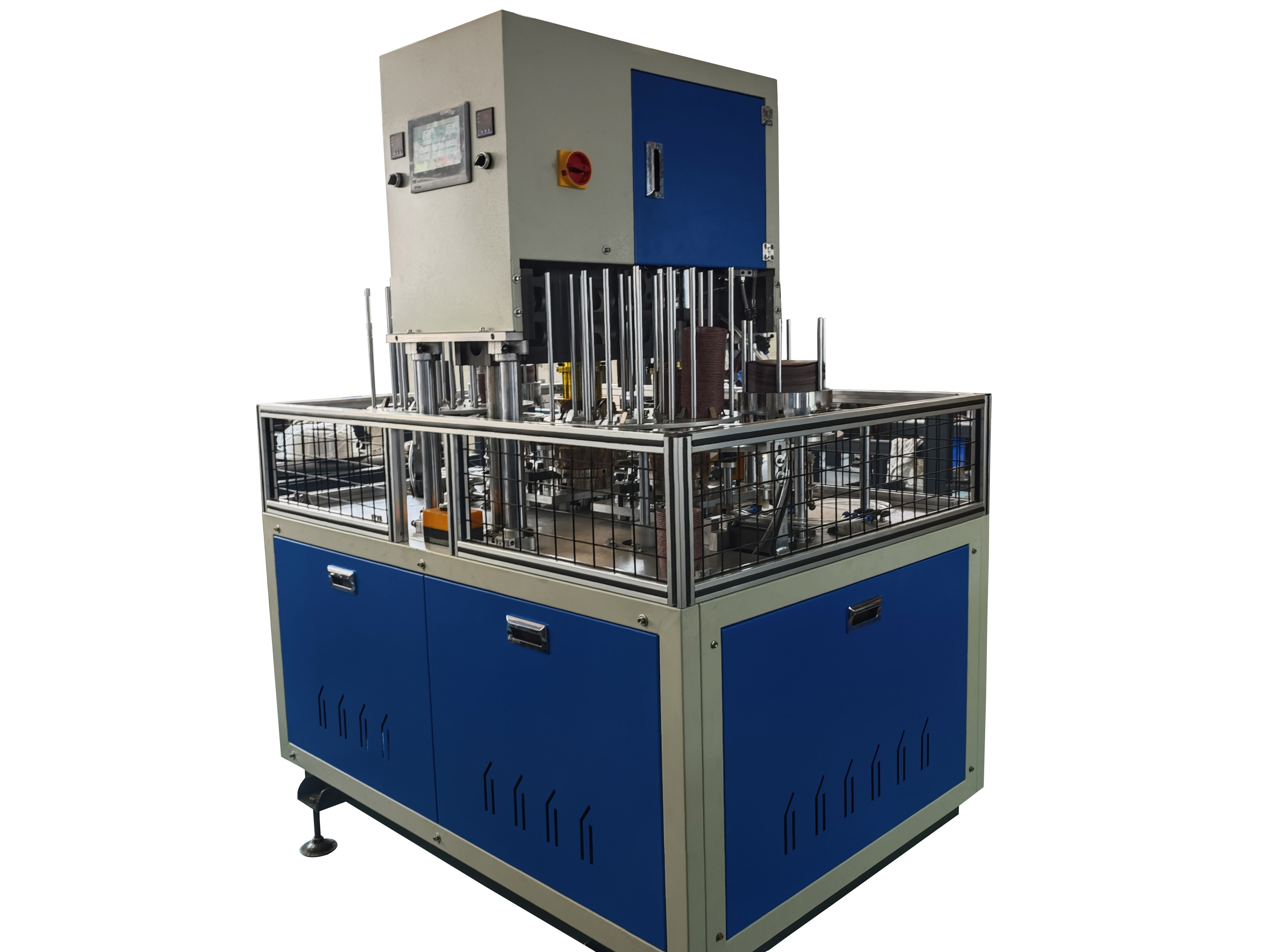

JDGT-BE automatic crimped cup machine
Description of the machine:
JDGT-BE crimped cup machine is designed for making different paper cup with roll rim edge ,The cup will be used for sauce cup ,cake cup as well .
Machine control with PLC system ,adopts with Servo motor for feeding paper ,forming cup ,picking up cup .
MAIN PARAMETER:
|
Model |
JDGT-BE |
|
Size of paper diameter (cutting paper ) |
Φ50-φ180mm |
|
Material |
greaseproof paper ,PET coated paper , aluminium coated paper ,PE paper ,food type paper |
|
Thickness of paper |
80-150gsm |
|
Speed |
50-70pcs/min |
|
Power supply |
380V,50HZ,220v ( it can be changed if customer require) |
|
Total Power |
3.0KW |
|
Machine weight |
1000kgs |
|
Measure(L*W*H) |
1800×1100×2000mm |
|
Air supply |
0.5Mpa 0.1 m3/min (need buy a separate air compressor) |
|
HS CODE |
84413090000 |
