1000m Accurate Laser Rangefinder Sensor Solutions

1000m Accurate Laser Height Measurement Sensor Solutions

Are you still looking for a remote 1km accurate measurement solutions laser ranging module? For 1000m accurate laser height measurement, especially for drone height determination,

often utilizing pulsing laser rangefinder technology. The compact laser rangefinder module is widely used in drone obstacle avoidance, periscope, infrared thermal imager, intelligent security, outdoor night vision, this is preferable. If you are interested in learning more about the capabilities and cost of this laser height measurement sensor. Please write us back so we can discuss details and quoting. Thank you.

FAQs:

Q: Are there any available laser sensor for outdoor using?

A: Sure. PTYC2-10X is JRT new series long range sensor, that can measure distances up to 1000 meters, making it suitable for large-scale projects & outdoor environments use.

Q: Can it be installed on a drone?

A: Yes, this is one of popular laser rangefinder modules, that is designed for long range projects with high accuracy & eye-safe laser. Customers usually select and integrate in drone, night vision device, golf etc. applications.

Range:

This laser distance sensor has a 5-meter small blind zone and can measure up to 1 kilometer. It offers excellent cost-effectiveness and superior physical properties.

Laser Wavelength:

The laser wavelength of this laser rangefinder module is 905nm.

Size:

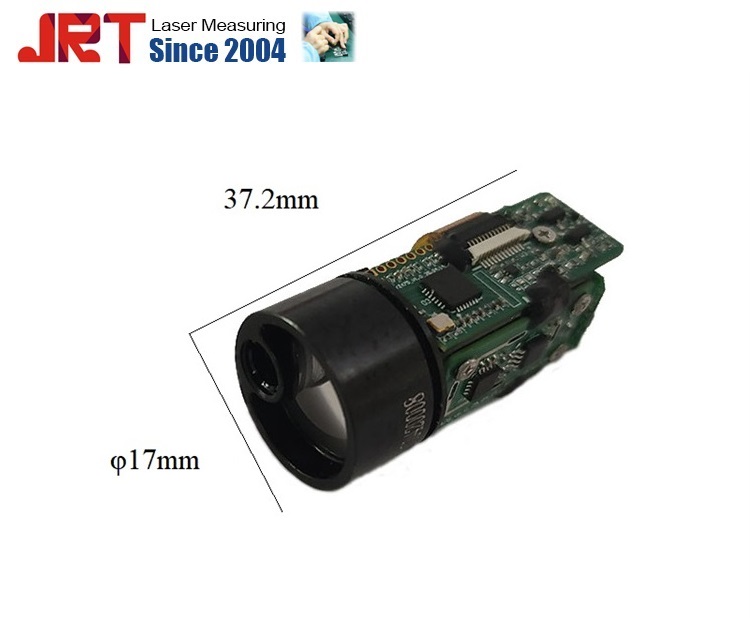

The long range laser sensor adopts a modular design method(φ17mm×37.2mm), ensuring stable performance while minimizing the product's weight and size as much as possible.

Interface:

The communication of the PTYC2-10X Radar detection system is realized through the TTL serial port.

Accuracy:

High precision, high measurement ranging accuracy: ±2m meter, the accurate laser distance sensor is crucial for precise measurements.

 Parameters:

1. Operating wavelength: 905nm

2. Eye safety level: Class 1

3. Emission aperture: Φ4.2mm

4. Receiving aperture: Φ14.5mm

5. Ranging capability: ≥1000m (Target: large target, visibility: ≥10km. Target reflectivity: 0.3)

6. Ranging blind zone: ≤5m

7. Ranging accuracy: ≤±1m (≤400m), ≤d×0.4% (>400m)

8. Ranging success rate: ≥99%

9. Ranging mode: Single shot, continuous ranging

10. Weight: ≤10g

11. Dimensions: φ17mm×37.2mm

12. Electrical interface: Connector socket: 0.8WTB-6AB-01

Connector plug: 0.8WTB-6Y-2

13. Power supply voltage: 3.3V~5V

14. Standby power consumption: ≤0.6W

15. Average power consumption: Blind zone/near range <0.85W, air/long range <1.35W

16. Operating temperature: -20℃~+60℃

17. Function: Laser ranging function

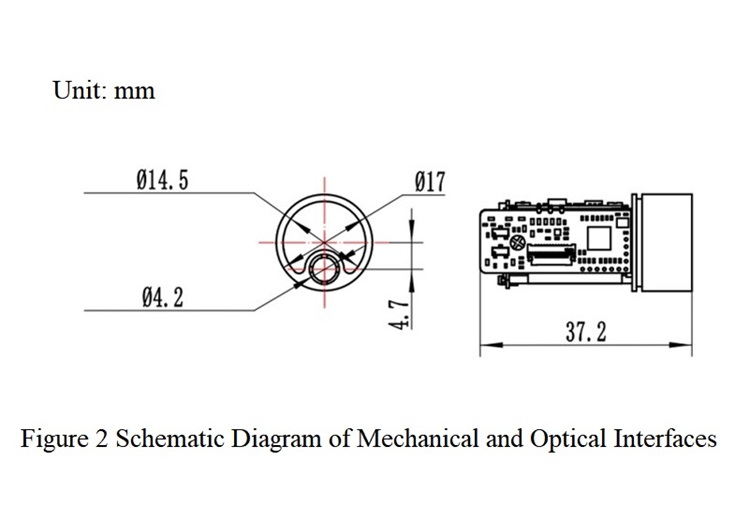

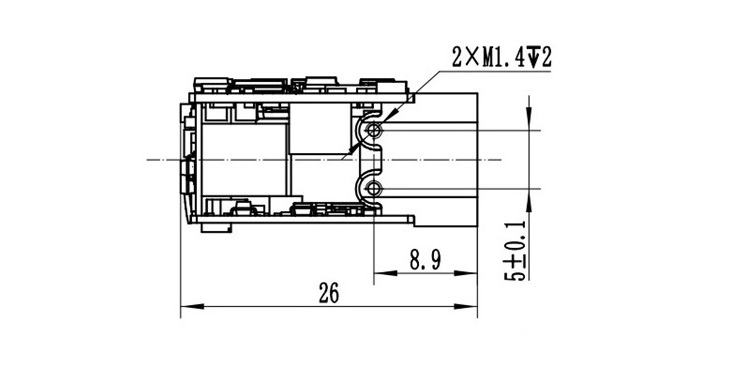

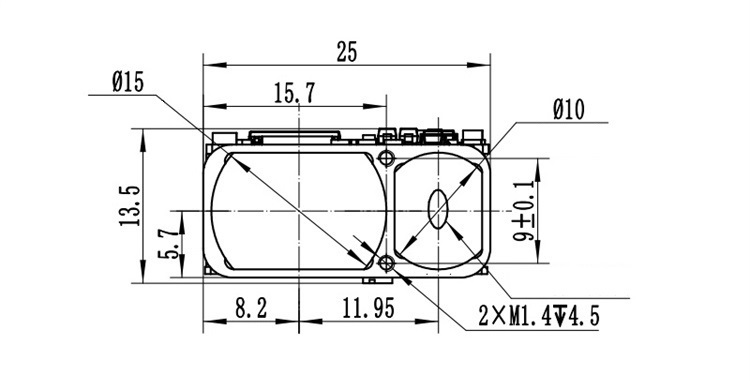

Mechanical Dimensions

Pin Definition

Applications & package

This Industrial laser range sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
