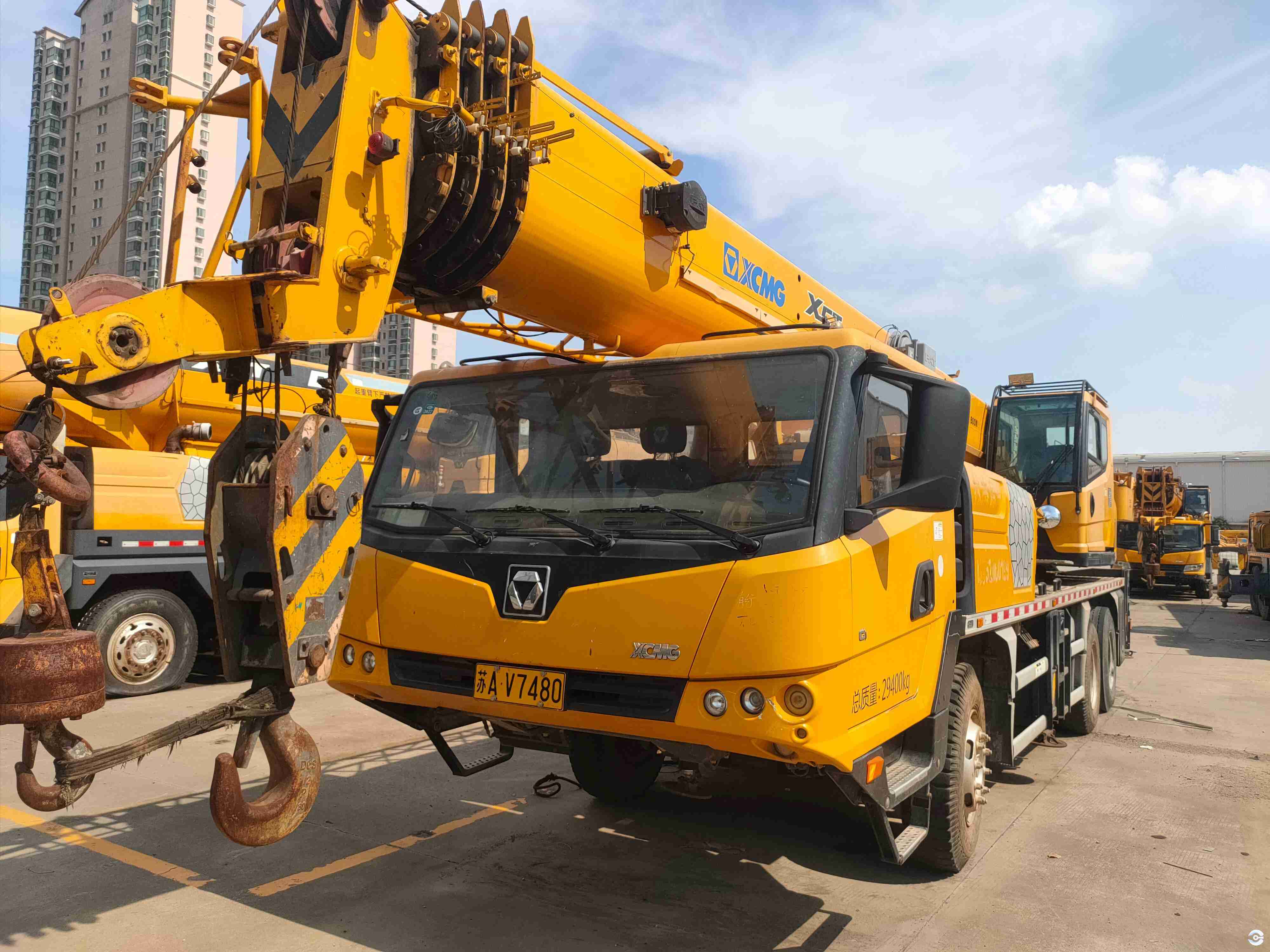

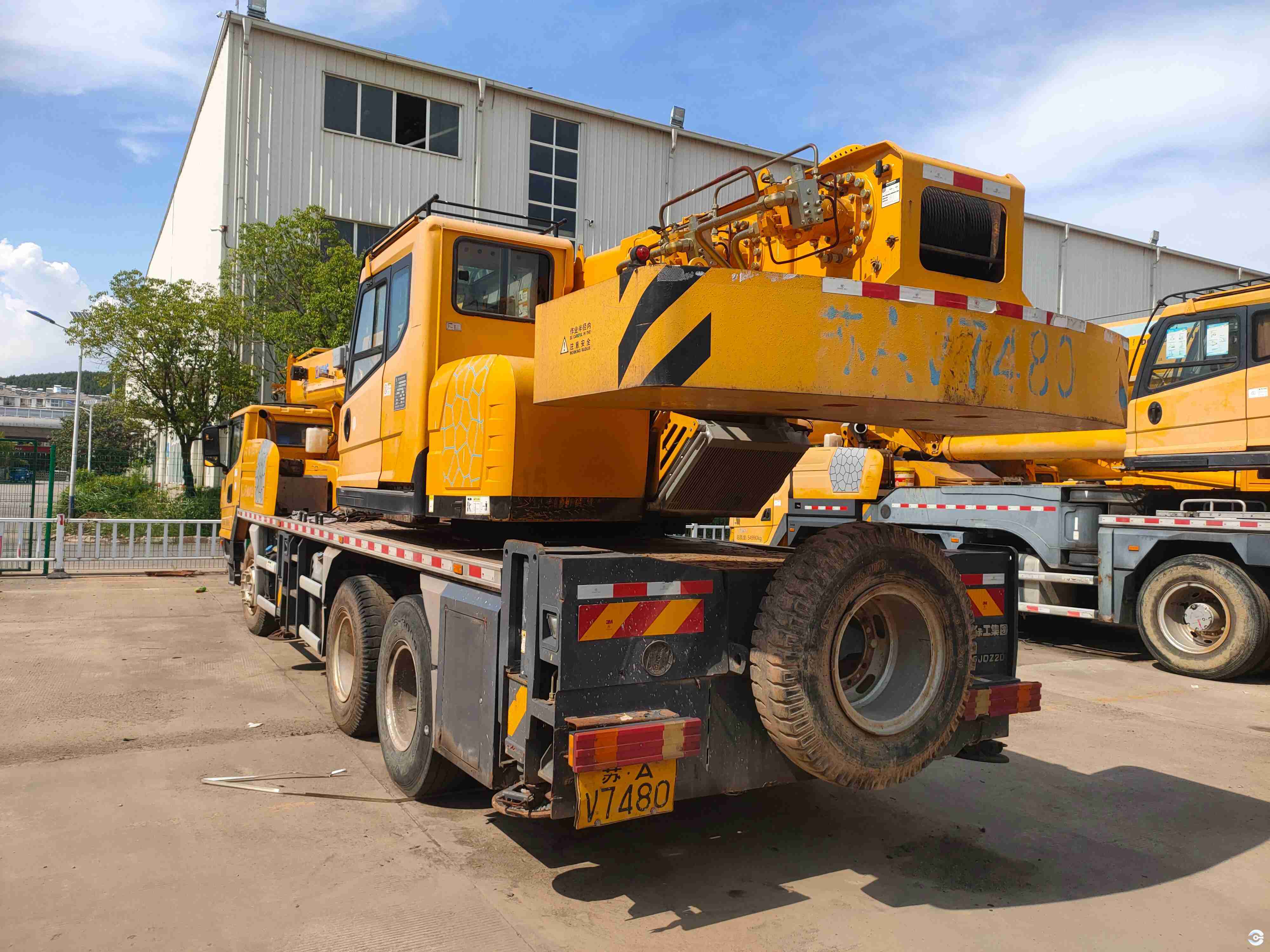

XCMG Official Xct20L5 20ton Pick up Boom Arm Mobile Crane

XCT20L5 truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments. 5-section boom of 40 m with U-type profile is adopted; the max. lifting load is 20 t; the max. lifting height is 47.6 m; the max. working radius is 38.4 m; The performance takes the lead comprehensively.

Energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s). Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the grade-ability is 42%.

Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.

Category	Item		Unit	Parameter
Outline Dimensions	Overall length		mm	12262
	Overall width		mm	2500
	Overall height		mm	3410
	Wheel base	Axles 1 and 2	mm	4425
		Axles 2 and 3	mm	1350
Weight	Dead weight in travel configuration		kg	29400
	Axle load	Axle 1	kg	6400
		Axles 2 and 3	kg	23000
Travel	Travel speed	Max. travel speed	km/h	80/85
		Min. stable travel speed	km/h	2~3
	Min. turning diameter		m	20
	Min. ground clearance		mm	261
	Departure angle		°	13
	Braking distance (at 30 km/h)		m	≤10
	Max. grade ability		%	42
	Oil consumption per 100 km (theoretical)		L	33
