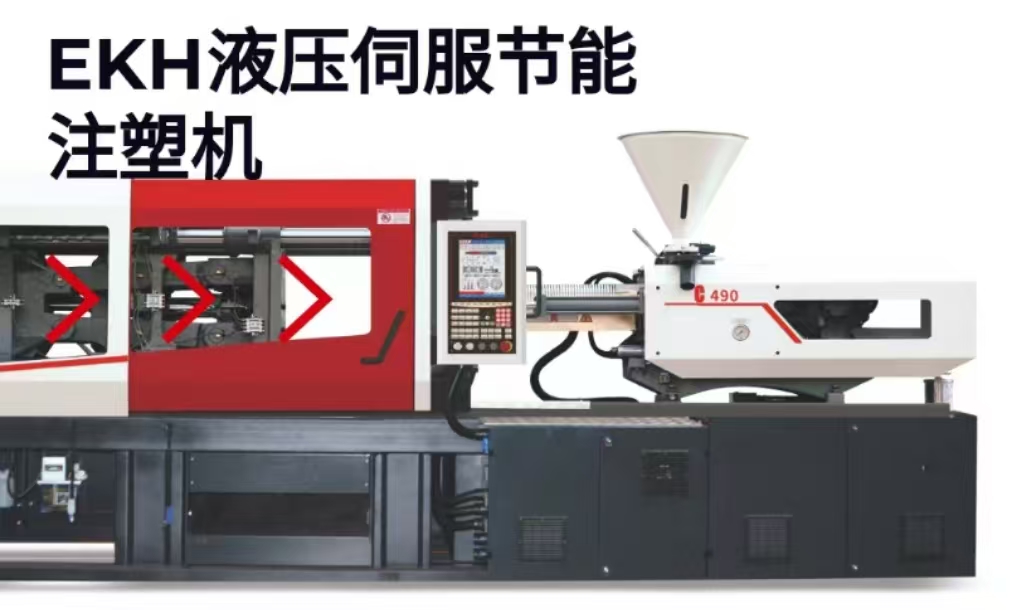

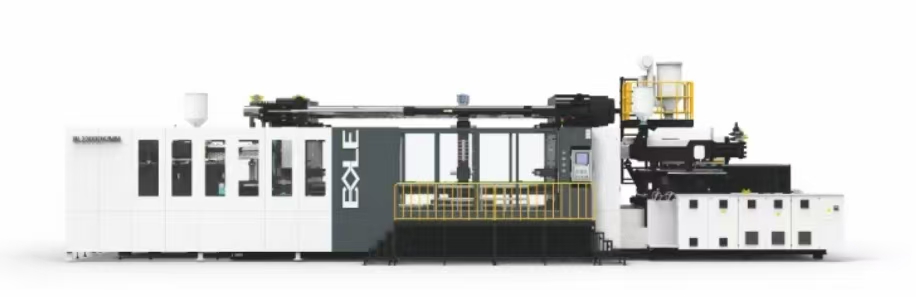

Hydraulic Servo Energy-Saving Injection Molding Machine

I. Introduction

A hydraulic servo energy - saving injection molding machine represents a significant advancement in the field of plastic injection molding technology. It combines the robust power transmission of hydraulic systems with the precise control and energy - efficiency features of servo technology. This innovative integration offers numerous benefits over traditional injection molding machines, including reduced energy consumption, enhanced performance, and improved product quality.

II. Working Principle

1. Hydraulic System Basics

The hydraulic system of the injection molding machine is responsible for generating and transmitting the force required for various operations such as mold closing, injection, holding pressure, and mold opening. It consists of a hydraulic pump, valves, cylinders, and pipes. The hydraulic pump draws in hydraulic oil from the reservoir and pressurizes it, sending the pressurized oil to different actuators (cylinders) through the valves to perform specific functions.

2. Servo Control Integration

The servo control system is the key to energy - saving in this type of injection molding machine. A servo motor is used to drive the hydraulic pump. Unlike a traditional fixed - displacement pump that continuously runs at a constant speed regardless of the actual demand, the servo motor can adjust its speed and torque according to the real - time requirements of the injection molding process.

For example, during the mold closing stage, when a relatively low force is required, the servo motor slows down, reducing the amount of hydraulic oil pumped and thus saving energy. During the injection stage, when high pressure and flow are needed, the servo motor speeds up to meet the demand.

3. Sensor Feedback

Sensors are installed throughout the injection molding machine to provide real - time feedback on parameters such as pressure, flow rate, position, and temperature. This feedback is sent to the controller, which compares the actual values with the set values. Based on the comparison, the controller adjusts the operation of the servo motor and hydraulic valves to ensure precise control of the injection molding process.

III. Key Components

1. Servo Motor

• High Efficiency: The servo motor has a high power - to - weight ratio and can convert electrical energy into mechanical energy with minimal losses. It can operate at different speeds and torques, providing the flexibility needed for the varying demands of the injection molding process.

• Precise Control: It can be accurately controlled in terms of speed, position, and torque. This precision allows for fine - tuning of the hydraulic system's output, resulting in consistent product quality.

2. Hydraulic Pump

• Variable Displacement: Driven by the servo motor, the hydraulic pump can change its displacement according to the requirements. This enables it to supply the right amount of hydraulic oil at the right pressure, reducing energy waste.

• High Reliability: The pump is designed to withstand the high - pressure and high - flow conditions of the injection molding process, ensuring long - term and stable operation.

3. Hydraulic Valves

• Proportional Valves: These valves can precisely control the flow rate and pressure of the hydraulic oil. They are controlled by electrical signals from the controller, allowing for smooth and accurate adjustments during the injection molding cycle.

• Directional Control Valves: Used to direct the flow of hydraulic oil to different actuators, such as the mold - closing cylinder and the injection cylinder. They ensure the proper sequence of operations in the injection molding process.

4. Controller

• Advanced Algorithm: The controller uses a sophisticated algorithm to process the sensor feedback and generate control signals for the servo motor and hydraulic valves. It can optimize the injection molding process in real - time, taking into account factors such as material properties, mold design, and production requirements.

• User - Friendly Interface: It provides an easy - to - use interface for operators to set process parameters, monitor the machine's status, and troubleshoot any issues.

IV. Advantages

1. Energy Efficiency

• Reduced Power Consumption: By adjusting the speed of the servo motor according to the actual demand, the hydraulic servo energy - saving injection molding machine can significantly reduce power consumption compared to traditional machines with fixed - displacement pumps. Studies have shown that energy savings can range from 30% to 70%, depending on the specific application and operating conditions.

• Lower Operating Costs: The reduced energy consumption translates into lower electricity bills, resulting in substantial cost savings over the lifespan of the machine.

2. Improved Performance

• Faster Cycle Times: The precise control of the hydraulic system allows for faster mold closing, injection, and mold opening speeds. This reduces the overall cycle time of the injection molding process, increasing production efficiency.

• Consistent Product Quality: The accurate control of pressure, flow rate, and temperature ensures that each molded part meets the specified quality standards. It reduces variations in part dimensions, surface finish, and mechanical properties, resulting in higher - quality products.

3. Environmental Benefits

• Reduced Carbon Footprint: The lower energy consumption of the hydraulic servo energy - saving injection molding machine leads to a reduction in greenhouse gas emissions. This is in line with the global trend of sustainable manufacturing and helps companies meet environmental regulations.

• Less Waste: The improved product quality reduces the number of defective parts, minimizing material waste. Additionally, the more efficient operation of the machine reduces the wear and tear on components, extending their service life and reducing the need for frequent replacements.

V. Applications

1. Automotive Industry

• Interior and Exterior Parts: Hydraulic servo energy - saving injection molding machines are widely used to manufacture automotive interior and exterior parts such as dashboards, door panels, bumpers, and grilles. The high precision and consistency of these machines ensure that the parts meet the strict quality requirements of the automotive industry.

• Engine Components: They are also used for producing engine components like intake manifolds, cylinder head covers, and fuel system parts. The ability to control the injection molding process precisely is crucial for ensuring the performance and reliability of these critical components.

2. Consumer Electronics

• Housing and Covers: In the consumer electronics industry, these machines are used to manufacture housing and covers for products such as smartphones, tablets, laptops, and televisions. The thin - wall injection molding capabilities of the machines allow for the production of lightweight and aesthetically pleasing parts.

• Connectors and Switches: They are also used for producing connectors, switches, and other small electrical components. The high - precision control ensures that the parts have accurate dimensions and reliable electrical connections.

3. Packaging Industry

• Bottles and Containers: Hydraulic servo energy - saving injection molding machines are used to manufacture plastic bottles and containers for food, beverage, and cosmetic products. The fast cycle times and high production efficiency of these machines enable mass production of packaging products to meet market demand.

• Caps and Closures: They are also used for producing caps, closures, and lids for various types of containers. The precise control of the injection molding process ensures that the caps fit tightly and provide a good seal.

VI. Future Development Trends

1. Further Energy Optimization

• Advanced Control Algorithms: Researchers are continuously developing more advanced control algorithms to further optimize the energy consumption of hydraulic servo energy - saving injection molding machines. These algorithms will take into account more complex factors such as material flow behavior, mold heat transfer, and machine dynamics to achieve even higher energy efficiency.

• Hybrid Systems: The integration of other energy - saving technologies, such as regenerative braking systems and energy recovery devices, into hydraulic servo injection molding machines is being explored. These hybrid systems can capture and reuse the energy generated during the machine's operation, further reducing energy consumption.

2. Enhanced Intelligence

• Internet of Things (IoT) Integration: The integration of IoT technology into hydraulic servo energy - saving injection molding machines will enable real - time monitoring and remote control. Machines can be connected to a network, allowing operators to monitor production data, adjust process parameters, and troubleshoot issues from anywhere.

• Artificial Intelligence (AI) Applications: AI algorithms can be used to analyze production data, predict machine failures, and optimize the injection molding process. For example, AI can learn from historical data to adjust process parameters automatically to achieve the best product quality and energy efficiency.

3. Improved Material Compatibility

• New Material Processing: As new plastic materials are developed, hydraulic servo energy - saving injection molding machines will need to be adapted to process them effectively. This includes developing new mold designs, process parameters, and control strategies to ensure high - quality molding of advanced materials such as biodegradable plastics, high - performance polymers, and composite materials.
