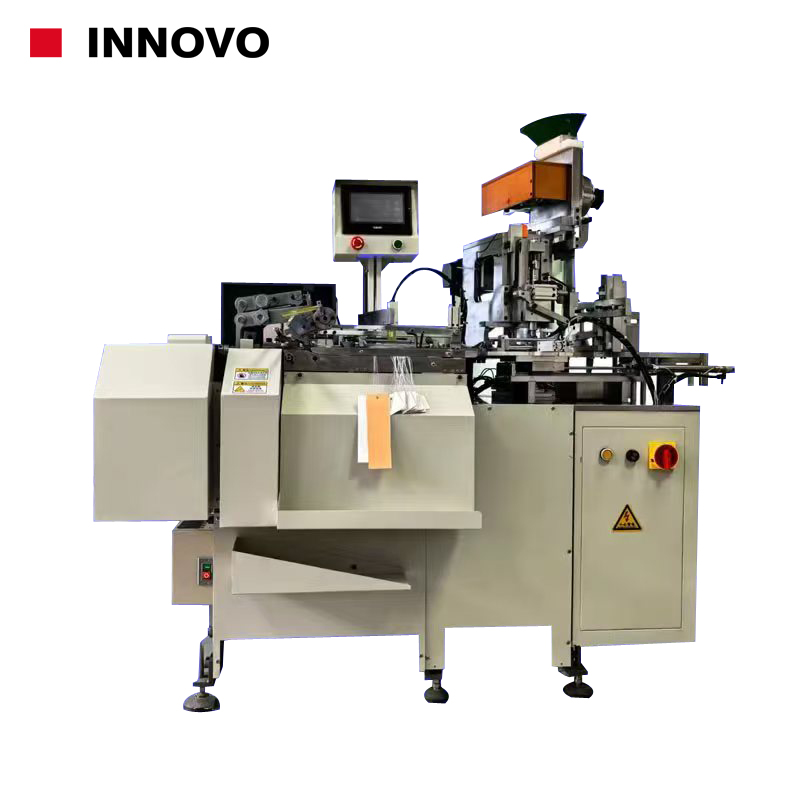

Automatic tags eyelet and threading machine

This machine is suitable for automatically punching holes, eyelets, threading, knotting, and counting paper tags in one operation.

Application industries include apparel, gifts, food, alcohol, card labels, and more. It features simple, safe, and efficient operation, and can be used with threads such as cotton, gold, silver, nylon, and elastic cord.

How this machine differs from similar machines on the market:

1. Technical coverage and optimization rates compared to similar machines on the market.

2. The main body utilizes a steel frame structure with heat-treated and tempered components, ensuring robust operation.

3. The machine's motor, touch screen, PLC, and inverter are all genuine brands from leading manufacturers.

4. The knotting control mechanism utilizes a cam divider, independently developed and custom-made with a renowned company, for high precision and long life.

5. High security measures are in place to ensure personnel safety.

6. Our proprietary knotting and eyeleting system achieves seamless, one-step operation, unlike any other machine on the market, which utilizes a completely separate mechanical structure, ensuring perfect knotting and eyeleting results. 7: Machine Efficiency: Approximately 3,500 pieces per hour

8: Hang Tag Size: Minimum width 35 mm x length 40 mm. Maximum width 90 mm x length 150 mm

9: Eyelet Size: The inner hole of the eyelet must be at least 3 mm to ensure that the rope can be threaded and knotted. Eyelet sizes vary, so the eyelet funnel, track, and eyelet mold must be replaced.

10: Stacking Height: 200 mm

11: Knotted Length: Minimum 70 mm x Maximum 200 mm, excluding the end.

12: Rope Diameter: 0.3 - 2.1 mm, Elastic Cord 0.3 - 1.5 mm

13: Hang Tag Thickness: Suitable for 250-700g thickness

14: Machine Power: 750 W

15: Machine Voltage: 220 V

16: Machine Weight: 570 kg

17: Machine Dimensions: 1800 * 1200 * 1500 mm
