Radial Piston Pump AR96872

2 week ago

0 0 

3 year

Product details

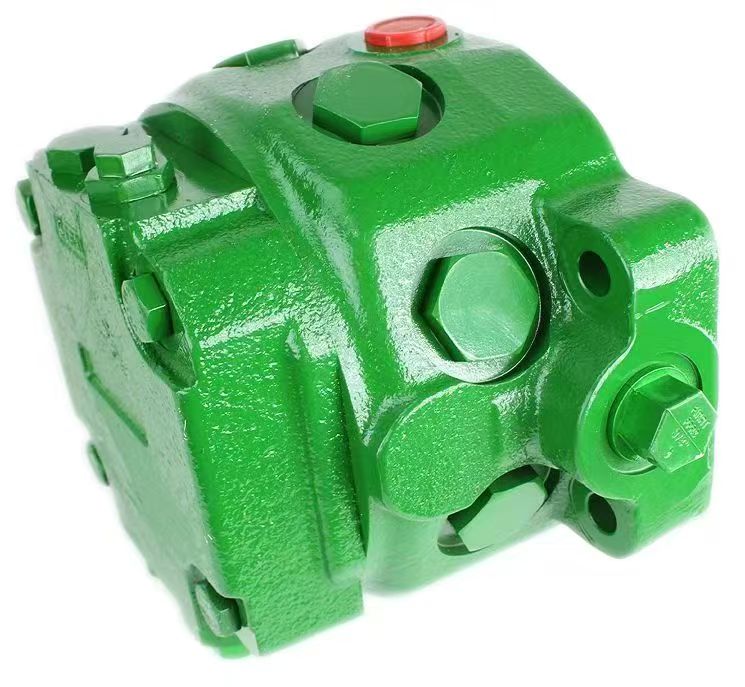

TheAR96872 Radial Piston Pumpis an original John Deere high-pressure hydraulic pump designed for tractors and other agricultural machinery. Featuring a radial piston structure, it provides efficient, durable, and contamination-resistant performance for core hydraulic functions such as steering, lifting, and suspension in tractors.

Key Features:

• High-Pressure Output: Up to 250–350 bar (model-dependent).

• Stable Flow: 20–100 L/min (adjustable based on RPM).

• Durability: Alloy steel pump body with hard-chrome-plated pistons for harsh agricultural environments.

• Broad Compatibility: Fits John Deere 1640–5010 series tractors and select cotton pickers (e.g., 9950–9970).

------

2. Technical Specifications

【表格】

Parameter Details

Model AR96872

Type Radial Piston Pump

Flow Range 20–100 L/min (500–2500 RPM adjustable)

Operating Pressure Rated: 200 bar; Peak: 350 bar

Speed Range 500–2500 RPM (matches engine speed)

Port Specifications SAE O-ring or BSPP threads (model-dependent)

Weight Approx. 10–15 kg (configuration-dependent)

Materials Pump body: Alloy steel; Pistons: Hard-chrome steel; Seals: Oil-resistant rubber

Compatible Models John Deere Tractors 1640–5010, Cotton Pickers 9950/9960/9965/9970

------

3. Functions & Applications

• Hydraulic Steering: Provides precise steering power for enhanced tractability.

• Rear Suspension Lift: Drives three-point hitch systems for implement attachment.

• Power Take-Off (PTO): Supports hydraulic motors for headers, planters, etc.

• Cotton Picker Integration: Powers picking heads, conveyors, and cleaning systems in 9950–9970 models.

Compatible Tractor Models:

• 1640, 2040, 2240, 2640, 2840, 3040, 4040, 4240, 4440, 4640, 4840, 5010.

• Cotton Pickers: 9950, 9960, 9965, 9970 (verify year-specific configurations).

------

4. Compatibility & Replacements

• OEM Part: AR96872 is a genuine John Deere component requiring no modifications.

• Alternative Brands:

• Parker: PVP series radial piston pumps (verify flow/pressure).

• Rexroth: A10VSO axial piston pumps (adapter required).

• Kayaba: PSV series hydraulic pumps (check dimensional fit).

• Notes:

• Confirmdisplacement, rotation direction, and port alignmentbefore replacement.

• Non-OEM parts may void warranties; prioritize genuine components.

------

5. Common Failures & Solutions

【表格】

Symptom Potential Cause Solution

Low Pressure Internal leakage, clogged filter Replace seals, clean/replace filter

Noise/Vibration Air ingress, worn bearings Bleed air, replace bearings

High Oil Temp Inadequate cooling, pump wear Check cooler, replace worn parts

Leakage Aged seals, loose connections Replace O-rings, tighten fittings
