Product details

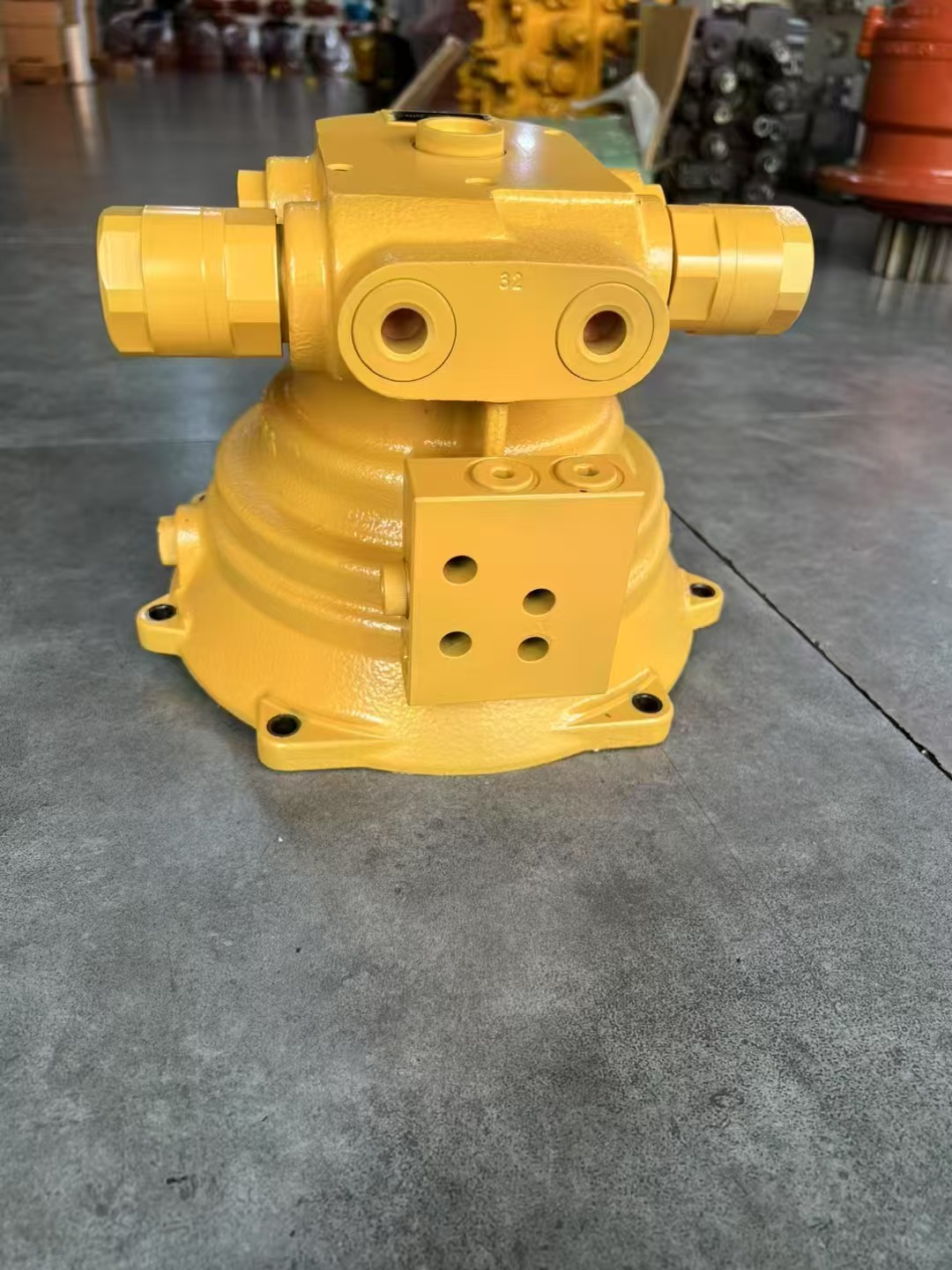

The rotary motor head for Caterpillar 307E and 308E is a crucial component in the rotary drive system of these Caterpillar excavator models. It serves as the core element that converts hydraulic energy into rotational mechanical energy, enabling the excavator's upper structure to perform smooth and precise swiveling movements. This functionality is essential for various construction and earthmoving tasks, allowing the operator to efficiently change the working direction of the machine.

1. Housing: The outer casing of the rotary motor head is typically made of high-strength cast iron or alloy steel. It provides a rigid and durable enclosure for all the internal components, protecting them from external impacts, dust, and debris. The housing is designed with precise dimensions and tolerances to ensure proper alignment and sealing of the internal parts.

2. Rotor: The rotor is the rotating part of the motor head. It is usually made of high-quality steel and is precisely machined to form a series of teeth or lobes. These teeth interact with the stator to create the necessary pressure differentials for fluid flow and rotation. The rotor is mounted on a central shaft, which is supported by high-precision bearings to ensure smooth rotation.

3. Stator: The stator is a stationary component that surrounds the rotor. It has a complex internal geometry with multiple chambers and ports. The stator works in conjunction with the rotor to direct the flow of hydraulic fluid, creating the pressure and flow patterns required for the motor to generate torque and rotation.

4. Bearings: High-quality bearings are used to support the rotor shaft. These bearings are designed to withstand high radial and axial loads, ensuring smooth and reliable rotation of the rotor. They are typically sealed to prevent contamination from entering the bearing housing and to retain lubrication.

5. Seals: Multiple seals are incorporated into the rotary motor head to prevent hydraulic fluid leakage. These seals are made of durable materials such as rubber or polyurethane and are designed to withstand high pressures and temperatures. They are strategically placed at various interfaces, including between the rotor and stator, the shaft and housing, and the ports.

The rotary motor head operates on the principle of hydraulic pressure. Hydraulic fluid is supplied to the motor through inlet ports. As the fluid enters the motor, it is directed into the chambers between the rotor and stator. The pressure of the fluid acts on the rotor teeth, creating a force that causes the rotor to rotate. The fluid then exits the motor through outlet ports, completing the cycle. The rotation of the rotor is transferred to the excavator's upper structure through the central shaft, enabling the swiveling motion.

1. High Torque Output: It can generate substantial torque, allowing the excavator to rotate its upper structure even under heavy loads. This high torque capability is crucial for tasks such as digging in hard soil or moving large boulders.

2. Precise Control: The motor head offers precise control over the rotational speed and direction of the excavator's upper structure. The operator can make fine adjustments to the swiveling motion, ensuring accurate positioning of the machine during work.

3. Durability and Reliability: Constructed from high-quality materials and designed with robust engineering, the rotary motor head is built to withstand the harsh operating conditions of construction sites. It can endure long hours of continuous operation, high pressures, and extreme temperatures without significant wear or failure.

4. Efficiency: It is designed to convert hydraulic energy into mechanical energy with high efficiency, minimizing energy losses. This not only reduces fuel consumption but also enhances the overall performance of the excavator.

5. Low Maintenance: The motor head is designed for ease of maintenance. Its modular construction allows for quick and straightforward replacement of worn or damaged components. Additionally, the use of high-quality seals and bearings helps to extend the service life of the motor and reduce the frequency of maintenance.

1. Construction Sites: In building construction projects, the rotary motor head enables the excavator to quickly change its orientation for tasks such as digging foundations, moving materials, and placing concrete. Its precise control allows for accurate positioning of the bucket or attachment, ensuring high-quality work.

2. Mining Operations: In mining, the excavator needs to rotate frequently to access different areas of the mine face. The high torque output of the rotary motor head is essential for handling large volumes of ore and overburden, while its durability ensures reliable performance in the demanding mining environment.

3. Infrastructure Projects: For infrastructure development like road construction, bridge building, and pipeline laying, the rotary motor head allows the excavator to perform a variety of tasks, including trenching, grading, and backfilling. Its precise control helps to achieve the required slopes and dimensions for the infrastructure.

1. Regular Inspection: Conduct visual inspections of the rotary motor head regularly for signs of leakage, damage, or wear. Check the seals, bearings, and housing for any abnormalities.

2. Fluid Replacement: Follow the manufacturer's recommendations for replacing the hydraulic fluid. Contaminated or degraded fluid can affect the performance and lifespan of the motor head.

3. Bearing Maintenance: Check the bearings for proper lubrication and signs of wear. Replace the bearings if they are damaged or worn out to prevent excessive friction and heat generation.

4. Seal Replacement: If any seals are found to be leaking or damaged, replace them promptly to prevent hydraulic fluid leakage and contamination of the internal components.

5. Cleaning: Keep the rotary motor head clean from dirt, debris, and construction materials. Regular cleaning helps to prevent clogging of the ports and ensures proper fluid flow.
