Short Equipment Lifespan? High-Wear-Resistant Pom Rods Extend The Service Life Of Parts By 200%

2 week ago

0 0 

SHENZHEN XIONGYIHUA PLASTIC INSULATION LTD

10 year

Product details

Product Composition

The main component of POM sheets and POM rods is polyoxymethylene (POM), also known as "Delrin." POM is a crystalline plastic with a high-density, non-side-chain, and highly crystalline linear polymer structure, which gives it excellent comprehensive properties.

Product Specifications

POM Sheet

Size: 600X1220mm and 1000x2000mm(can help cut into your size),

Thickness:1mm to 150mm.

Color: White/Black (Or colorful)

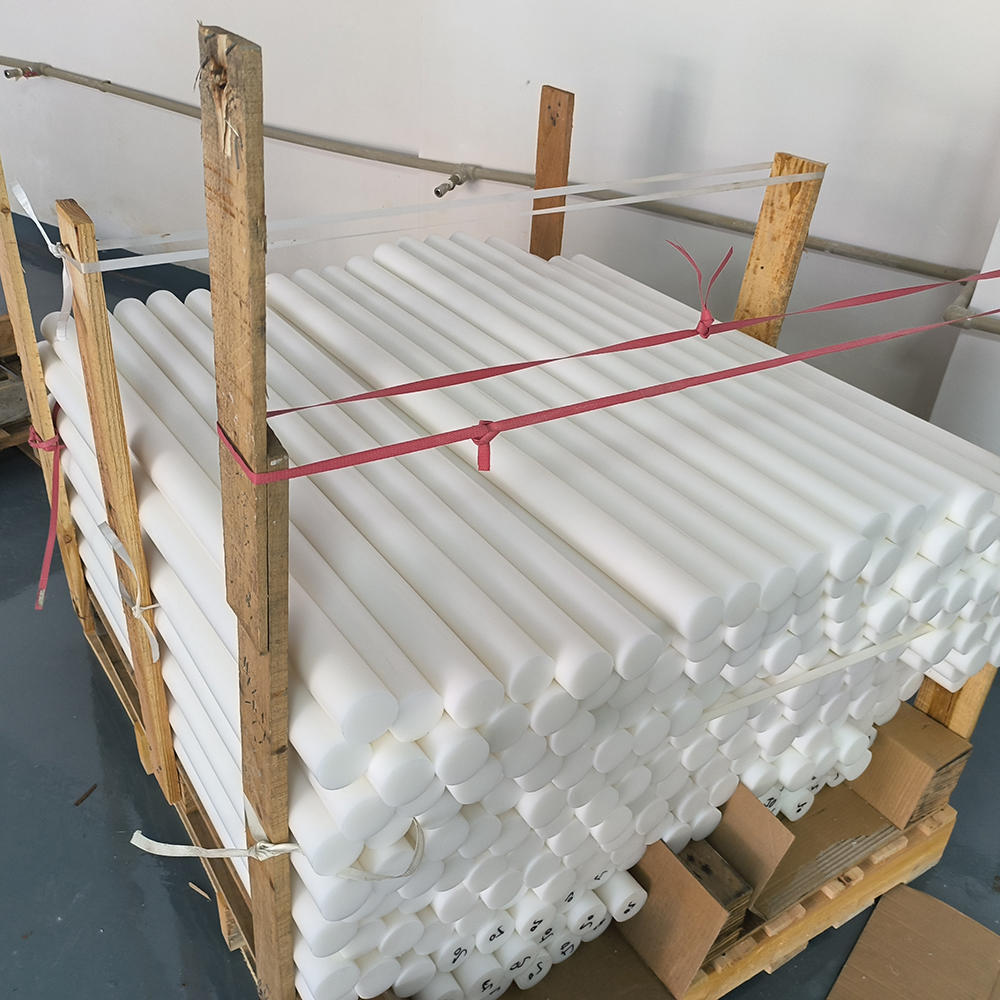

POM Rod

Diameter:OD10mm to OD250mm

Length:1000mm

Color: White/Black (Or colorful)

Performance Characteristics

Physical Properties: POM sheets and POM rods have a smooth and glossy surface, appearing hard and dense. They are generally white or yellowish, with high crystallinity, good colorability, and excellent dimensional stability, along with minimal water absorption.

Mechanical Properties: POM sheets and POM rods exhibit high hardness and rigidity, excellent wear resistance, self-lubricating properties, and creep resistance. This allows them to withstand high loads and repeated impacts without deformation.

Thermal Properties: POM sheets and POM rods have a high heat distortion temperature and can be used continuously within a temperature range of -40°C to 104°C.

Electrical Properties: POM sheets and POM rods maintain stable dielectric loss and dielectric constant within a wide frequency and temperature range, along with good arc resistance.

Chemical Properties: POM sheets and POM rods exhibit good resistance to solvents, oils, weak acids, and weak bases.

Advantages

High mechanical strength, rigidity, and hardness, along with excellent elasticity, sliding properties, and wear resistance.

Good creep resistance, even at low temperatures, and high impact strength.

Excellent dimensional stability and mechanical properties.

Physiologically inert, suitable for contact with food.

Good electrical properties and environmental resistance, as well as solvent resistance.

Good resilience.

Application Fields

POM sheets and POM rods have extensive applications in the automotive, electronics, machinery, and medical industries. Specifically:

Automotive Industry: POM material is widely used in automobile manufacturing, mainly for interior parts, transmission systems, fuel systems, and seat adjustment mechanisms. Its excellent wear resistance and corrosion resistance make it an ideal choice for automotive components.

Electronics: POM material finds extensive applications in the electronics industry, such as electrical switches, sockets, insulators, and electronic connectors. Its good electrical and mechanical properties meet the requirements of electronic products for material performance.

Mechanical Engineering: POM material is widely used in the mechanical field for manufacturing gears, bearings, sliding bushings, and transmission chains. Its low friction coefficient and self-lubricating properties reduce energy loss and friction wear in mechanical devices.

Medical Equipment: POM material is extensively used in the manufacture of medical equipment, such as surgical instruments, syringes, infusion sets, and artificial joints. Its chemical stability and biocompatibility make it one of the commonly used materials in the medical field.

Our company is deeply engaged in the field of high-performance engineering plastics and insulation materials, and is committed to providing innovative material solutions for the global high-end manufacturing industry. Our main products include high-end engineering plastic sheets/rods such as polyoxymethylene (POM), ABS, nylon (PA), polycarbonate (PC), polyphenylene sulfide (PPS), polyetherimide (PEI), polyetheretherketone (PEEK), etc. We also provide special insulation materials such as bakelite (phenolic laminate) and epoxy glass fiber board. With excellent properties such as high temperature resistance, wear resistance, and high strength, our products are widely used in new energy vehicles, smart electronics, industrial machinery, aerospace and other fields.

FAQ

1.Q: What are the main characteristics of POM rods?

A:POM rods feature high mechanical strength, great rigidity, high hardness, as well as excellent wear resistance, self-lubrication and dimensional stability. Compared with nylon (PA), POM has lower water absorption and more stable dimensions, making it suitable for the manufacturing of precision parts.

2. Q:Which is more wear-resistant, POM rods or nylon rods?

A:The wear resistance and self-lubrication of POM rods are superior to those of nylon. Especially in dry environments, the low coefficient of friction of POM makes it more suitable for sliding parts such as gears and bearings, while nylon is prone to deformation after absorbing moisture, which affects its wear resistance.

3.Q: Can POM rods withstand high temperatures?

A:Yes, POM rods can operate stably for a long time from -40°C to 100°C, and can withstand short-term temperatures up to 120°C. The heat distortion temperature of homopolymer oxymethylene (POM-H) is higher (about 175°C), which is superior to that of copolymer oxymethylene (POM-C) and nylon.

4.Q: Are POM rods resistant to acids and alkalis?

A:POM is resistant to weak acids, weak bases and organic solvents, but strong acids (such as concentrated sulfuric acid) or strong bases can corrode its surface. In contrast, PTFE (polytetrafluoroethylene) has better corrosion resistance, but its mechanical strength is far lower than that of POM.

5.Q: Why is the dimensional stability of POM rods better?

A:The water absorption rate of POM is extremely low (< 0.25%), and it hardly deforms in a humid environment. The water absorption rate of nylon is as high as 8%, which can easily lead to dimensional deviations and requires secondary processing and adjustment.

6. Q:What are the core application fields of POM rods?

A:It is mainly used in precision engineering: automotive transmission parts, electronic gears, medical instrument parts, etc. Compared with nylon, the rigidity and stability of POM are more suitable for high-load scenarios. Compared with metals, its lightweight and self-lubricating property can reduce maintenance costs.
