Heat Shrink Wire Terminals
Product Description
Crafted with a high - performance material combination: The outer layer is a composite of polyolefin and PA hot - melt adhesive, boasting excellent insulation, reliable waterproofing, and anti - corrosion properties. The inner core is a high - purity red copper tube, ensuring outstanding and stable electrical conductivity. Compared with traditional connectors, this product offers better durability, along with the advantages of easy installation and low installation costs.

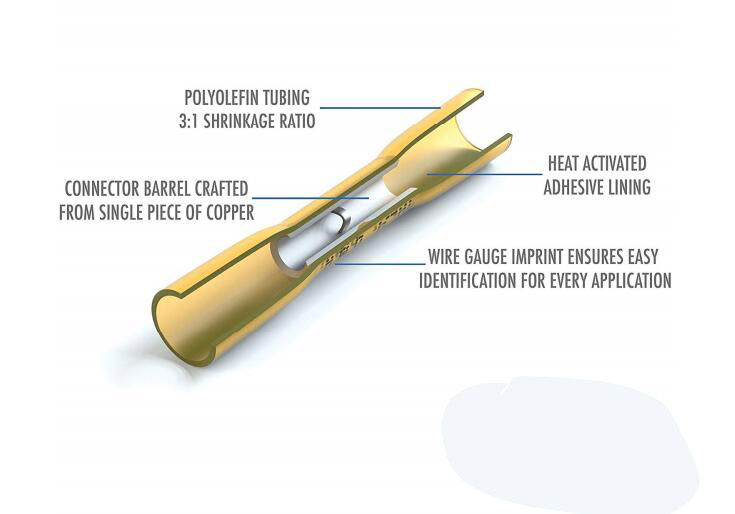

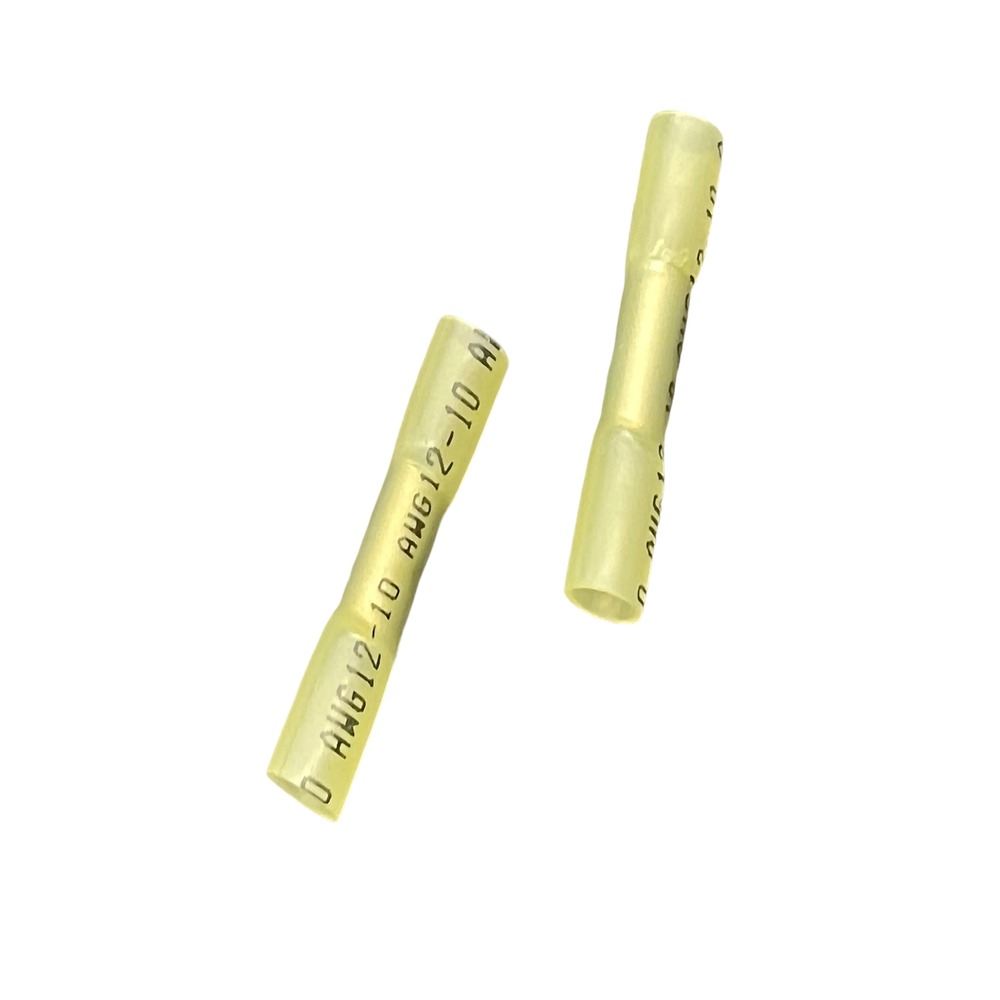

To help you directly understand the appearance and structural details of the product in its unused state, Figure 1 (Heat Shrink Wire Terminal - Unused State) is inserted below. You can see the marked sleeve style, getting familiar with the product's initial form in advance and assisting in understanding the subsequent installation and application process.

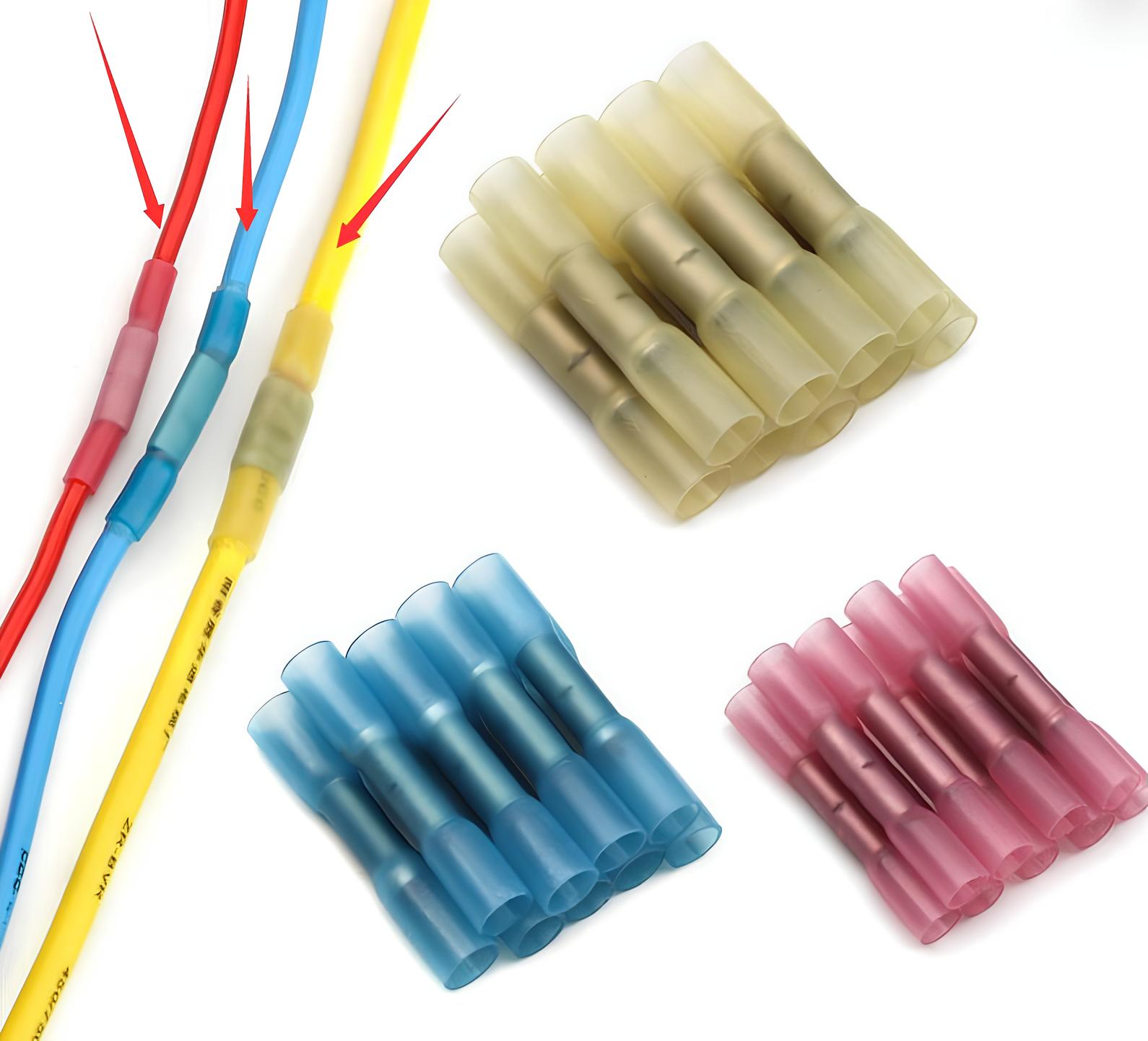

Product Attributes
| Attribute Category | Specific Details |
| Shrinkage Performance | Shrinkage Ratio: 3:1 |
| Appearance | Yellow |
| Temperature Parameters | Starting Shrink emperature: 80℃; Final Shrink Temperature:130°C; Operating Temperature Range: -55℃ ~125℃ |
| Compliance | Meets UL224, ROHS 2.0 Standards |
Product Dimension Diagram
Product Specifications

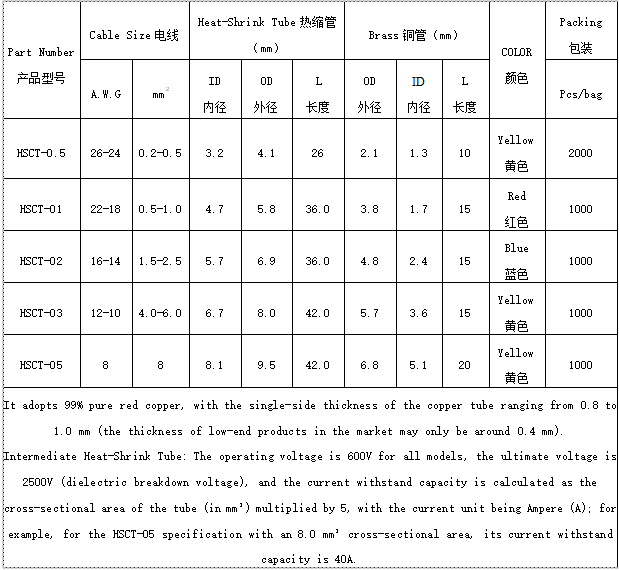

| Part Number | Cable Size | Heat Shrink Tube | Brass | COLOR | Packing | |||||
| A.W.G | mm2 | ID | OD | L | OD | ID | L | Pcs/bag | ||
| HSCT-03 | 12-10 | 4.0-6.0 | 6.7 | 8.0 | 42.0 | 5.7 | 3.6 | 15 | Yellow | 10000 |

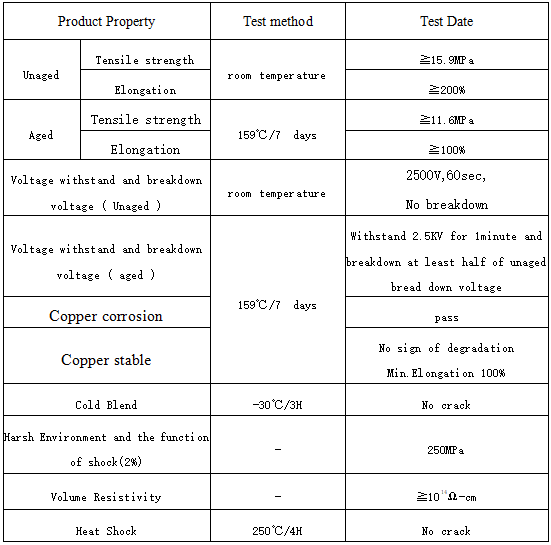

Technical Parameters
Product Applications
This product is widely used for the protection of wires, wire harnesses, and electronic connectors. It excels in harsh working environments such as outdoor electrical equipment wiring, automotive wire harness connections, and industrial control system wiring. With its waterproof, anti - corrosion, and anti - vibration properties, it can strengthen the fixation of wire connection parts, effectively preventing poor contact, short circuits, etc., caused by moisture, dust accumulation, or vibration.
To directly demonstrate the actual application effect of the product and show its protection state in complex environments (such as wading scenarios), Figure 2 (Heat Shrink Wire Terminal - Application Scenario) is inserted below. In the figure, you can see that after the wires are connected by this product, they can still be stably protected in water environments, directly reflecting the advantages of waterproof and other properties.

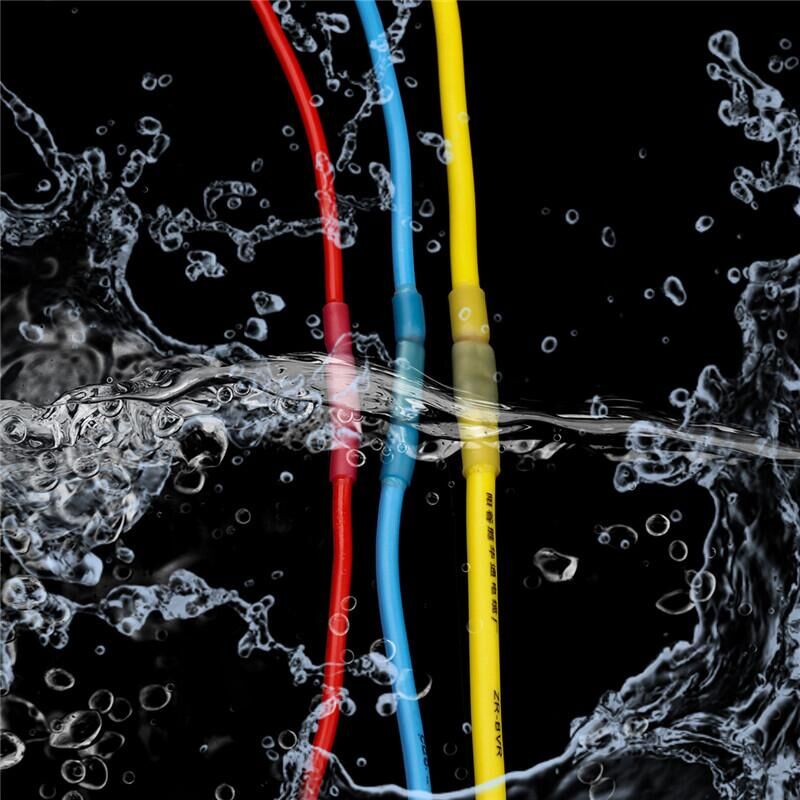

Precautions

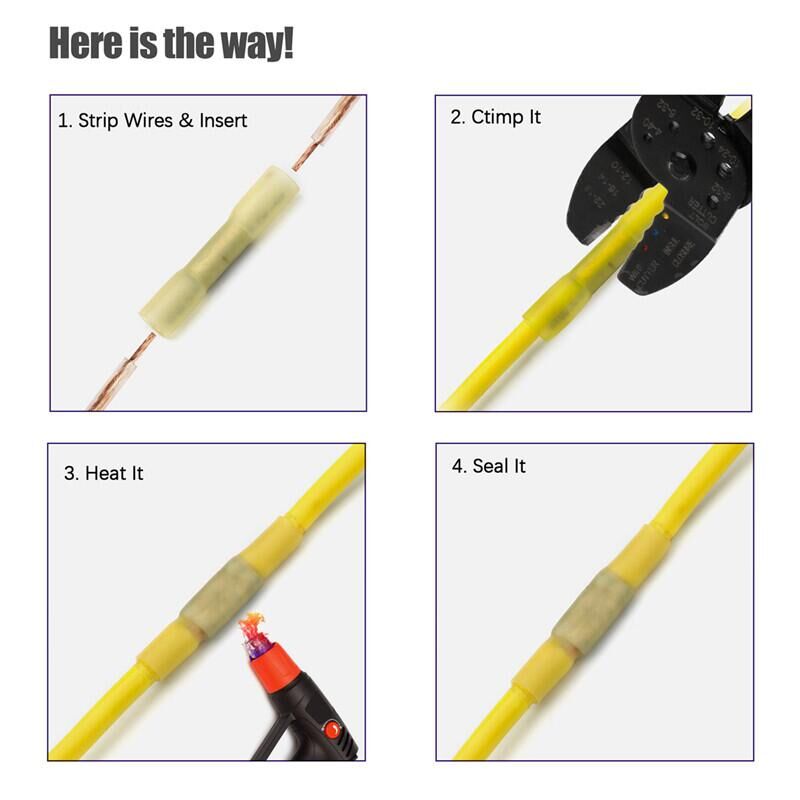

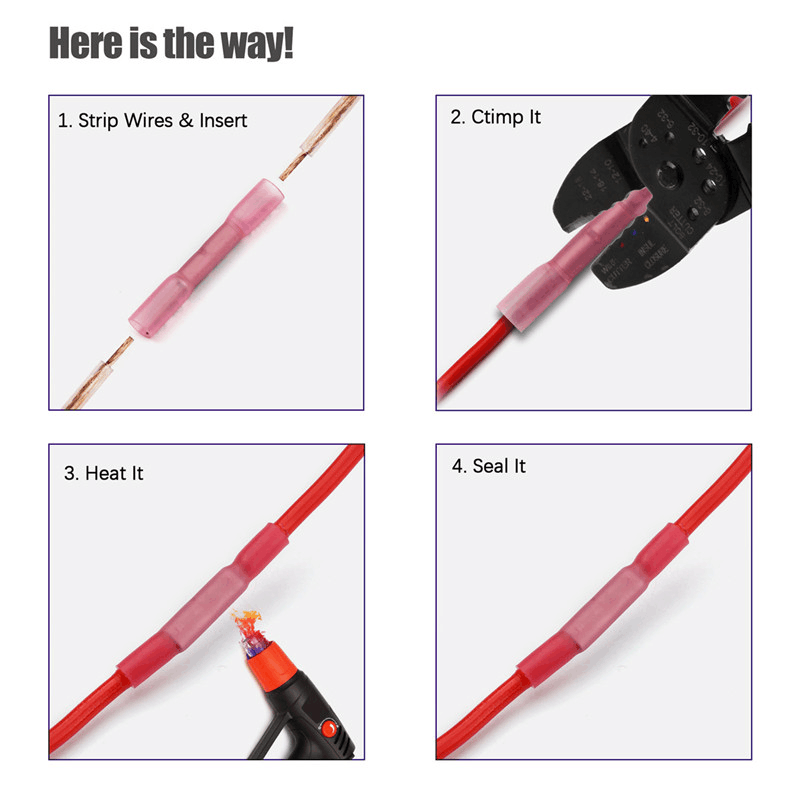

To standardize the operation process and help you clearly master the installation key points, Figure 3 (Heat Shrink Wire Terminal - Operation Steps) is inserted below. The figure shows the complete process from wire stripping and insertion to heating and sealing in a step - by - step demonstration, assisting you in accurate construction.
- Heating Operation: Use a professional hot - air gun (keep a distance of 10 - 15 cm from the product), heat the sleeve evenly, and follow the temperature requirements (start shrinking at 80℃ and fully shrink at 130℃). Avoid local overheating that may damage the sleeve or cause uneven overflow of hot - melt adhesive.
- Pre - installation Preparation: Clean the wire connection part with sandpaper or a special cleaner to remove the oxide layer and oil stains, ensuring close contact between the red copper tube and the wire conductor for optimal electrical conductivity.
- Storage Conditions: Store in a dry, cool, and dark environment (Temperature: - 10℃ ~ 40℃, Relative Humidity ≤ 60%), away from sharp objects and corrosive gases to prevent sleeve scratching or material performance degradation.
- Crimping Requirements: Select the corresponding color of the connector according to the wire gauge (refer to the product specification table for the corresponding relationship between color and wire gauge). Use a suitable crimping tool and control the force moderately to ensure a firm connection without deforming the copper tube or damaging the outer sleeve.
