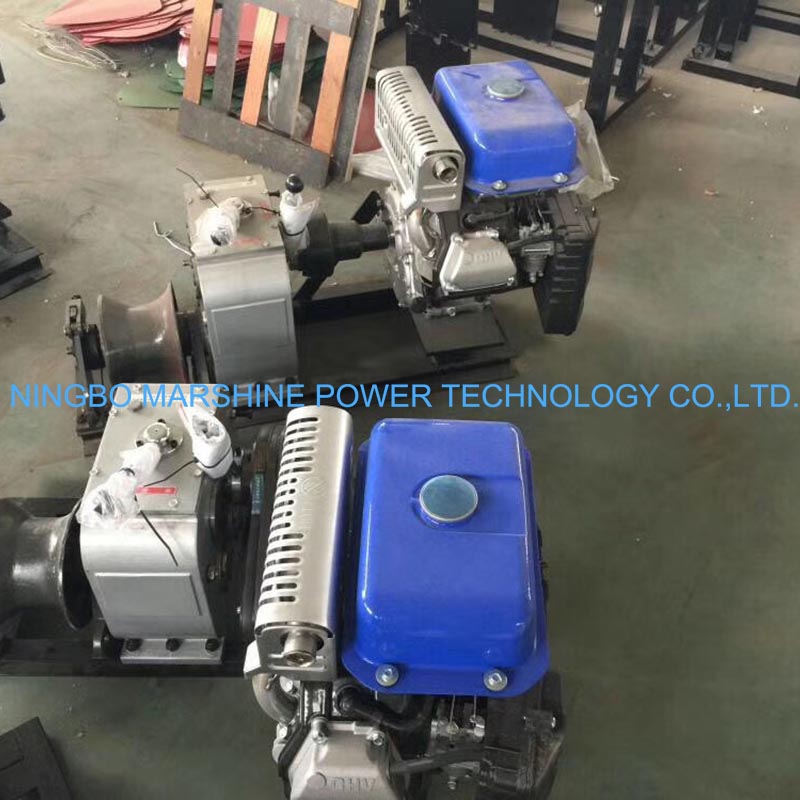

5 Ton Single Drum Capstan Cable Winch

5 Ton Single Drum Capstan Cable Winch

The MARSHINE 5 Ton Single Drum Capstan Cable Winch features a robust design that can achieve a balance of power, flexibility and safety, which can play a vital role in practical use. The traction force of this cable winch varies with two gear Settings. For instance, when the machine is in gear I, the traction force is 50 KN, that making it suitable for medium-duty tasks. When the machine is in gear II, the traction force is 25 KN, which is suitable for light-load tasks. This cable winch dual-speed design also enables the operator to switch between power and speed according to the tasks. When the machine is set to I gear speed, it provides high traction speed up to 5 m/min, which can be used to pull heavy-duty cables. When the machine is set to II gear speed, it provides a faster speed of 10 m/min, which is suitable for pulling lighter cables or for the situations with tight schedules. The flexibility of the cable winch can effectively addresses the demand for multiple winches, thereby saving the labor-effort costs and the storage space.

As a reliable machine which was optimized specifically for cable handling, the MARSHINE 5 Ton Single Drum Capstan Cable Winch’s bottom diameter of the trough of the drum is 160mm, that can provide sufficient surface area for winding steel wire ropes with a maximum diameter of 16mm, which includes the common cable sizes in power transmission and construction. The bottom of the cable winch's drum has the V-shaped groove, which can prevent the rope from slipping and is able to ensure that the machine maintains with a continuous traction force even when the rope is pulled at an Angle. This cable winch is featured with a Honda GX390 prime mover motor with a rotational speed of 3600 r/min. It is a highly reliable engine that can enable the cable winch to operate even under the harsh conditions and this machine is very durable. Importantly, we support customized power motor sources. The customers can choose between diesel engines or electric motors based on the power supply conditions of their sites. For instance, the electric motors are suitable for indoor or urban areas with a power supply that the voltage of 220V/380V, however the diesel engines are appropriate for remote areas without electricity.

The MARSHINE also attach great importance to the safety of the 5 Ton Single Drum Capstan Cable Winch and have adopted a dual braking system, which including an automatic clamping brake and a clutch rotary interlock brake. Both of these two types of brakes can operate in the forward and the reverse directions, which are able to ensure that the cable winch will stop quickly and firmly holds the load while effectively pulling heavy cables even when going uphill. The cable winch also adopts another setting that can ensure safety, which is a manual shaking device that integrated into the drum mechanism and can be manually operated in case of power failure to prevent the suspended load from accidentally dropping. From traction force and speed to safety systems and power options, these features are able to ensure the 5 Ton Single Drum Capstan Cable Winch delivering the reliable, efficient performance for the electric power line construction operations.

Technical Parameters
