Hand Cable pulling Winch

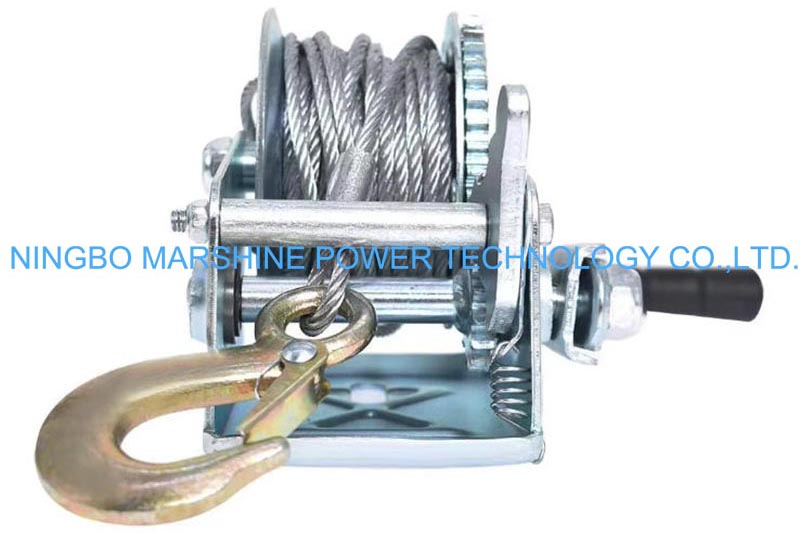

Hand Operated Cable Manual Cable Winch

The MARSHINE Hand Operated Cable Manual Cable Winch has a strong load capacity, which with a lateral traction force of up to 2,000 lbs, that making it suitable for towing loads horizontal. This hand cable winch vertical lifting capacity is within 400 KGS, which making it ideal for towing and lifting the light to medium loads, such as trailer cargo or small ship components. The hook of this machine has a capacity of 1 ton, which is able to ensure that it can safely withstand the heavy loads during the using without bending or breaking.

With a speed ratio of 4.2:1 that effectively reduces the pulling force needed to move heavy objects, this hand-operated tool is the MARSHINE Hand Operated Cable Manual Cable Winch. It means that for every 4.2 turns of the handle, the drum will pull 1 unit of rope, which can enable a person to pull heavy objects easily without the overexertion. This hand cable winch machine can accommodate steel wire ropes that are 10 m long and 5 mm in diameters. This length is sufficient for many short-distance tasks, such as pulling a ship to a 10-meter-long dock. And the 5 mm thickness strikes a balance between the flexibility and strength, which can avoid twisting while withstanding the tension.

The sturdy mechanical design of this MARSHINE Hand Operated Cable Manual Cable Winch enhances its reliability. Its three-way ratchet mechanism, marked as upward, middle and downward respectively, that is able to enable the operator to lock the winch at any time, which is crucial for ensuring the safety when lifting goods in the middle section. The ratchet lever is 3.48 inches long, which is thick enough for a secure grip even with gloves, and clicks firmly into each position to prevent the accidental slips. The feature of the hand cable winch steel drum reel can ensures the rope is wound neatly, while some small winches cannot achieve this. The total weight of the machine is only 4.2 KGS, which making it easy to move between work sites. The hand cable winch steel structure makes it durable, and the entire machine body has reinforced to deal with the long term use.

This MARSHINE Hand Operated Cable Manual Cable Winch is highly practical, because the 10-meter-long steel wire rope does not require additional extension cords and is not prone to wear, which can allow it to be tightly wound around the drum. The MARSHINE Hand Operated Cable Manual Cable Winch is highly practical that the cable winch's 10m long steel wire rope does not need another additional extension cords and is also not prone to the wear, which can allow it to be tightly wound around the drum. This MARSHINE Hand Operated Cable Manual Cable Winch has a compact packaging size of 22*17*15.5 cm that  is able to easy to store, which can be easily placed in a toolbox or the trailer compartment. Judging from the load capacity, speed ratio and size of this machine, it is a reliable manual traction and lifting tool, which is very suitable for all of the electric power industry.

Technical Parameters
