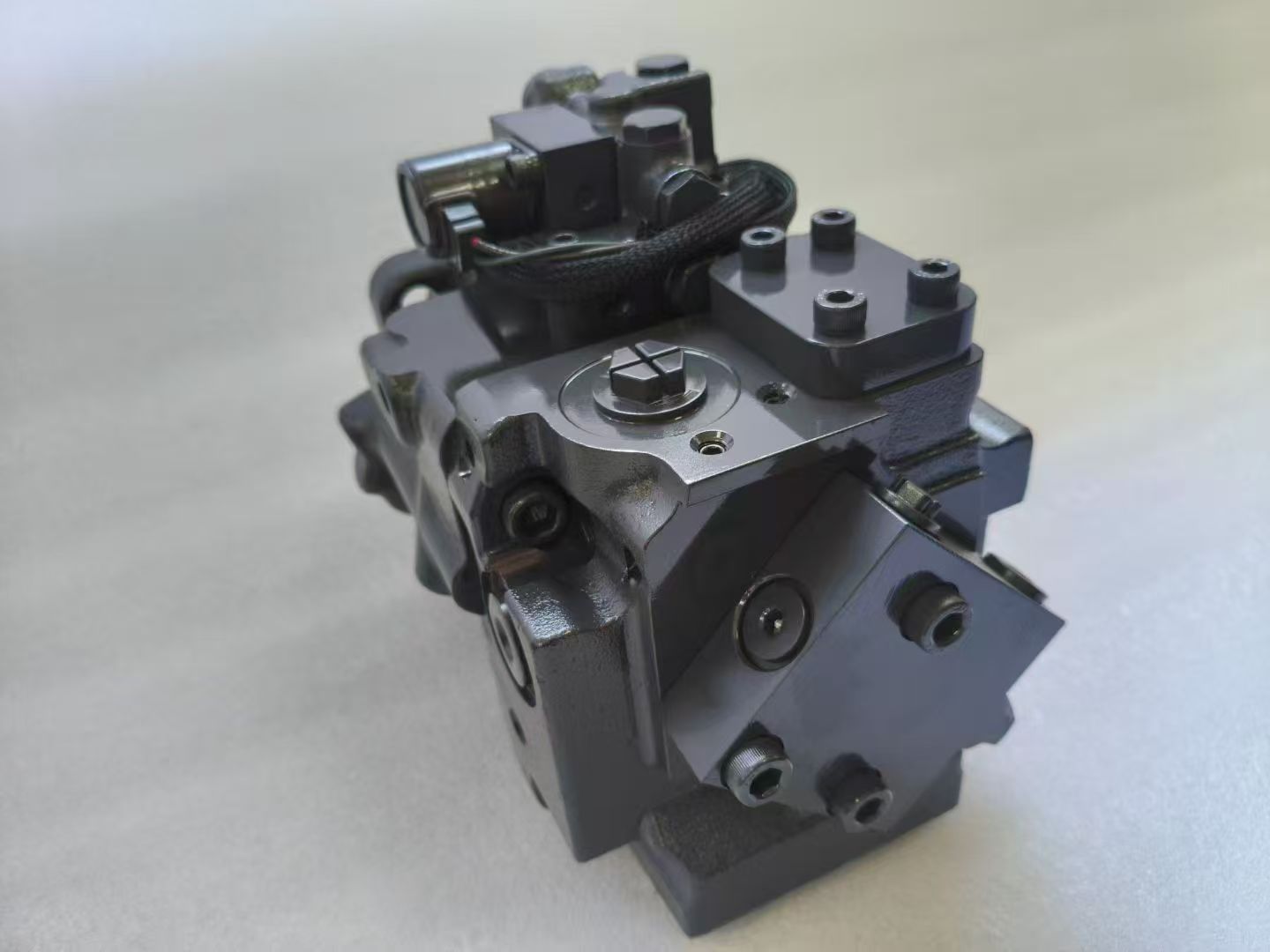

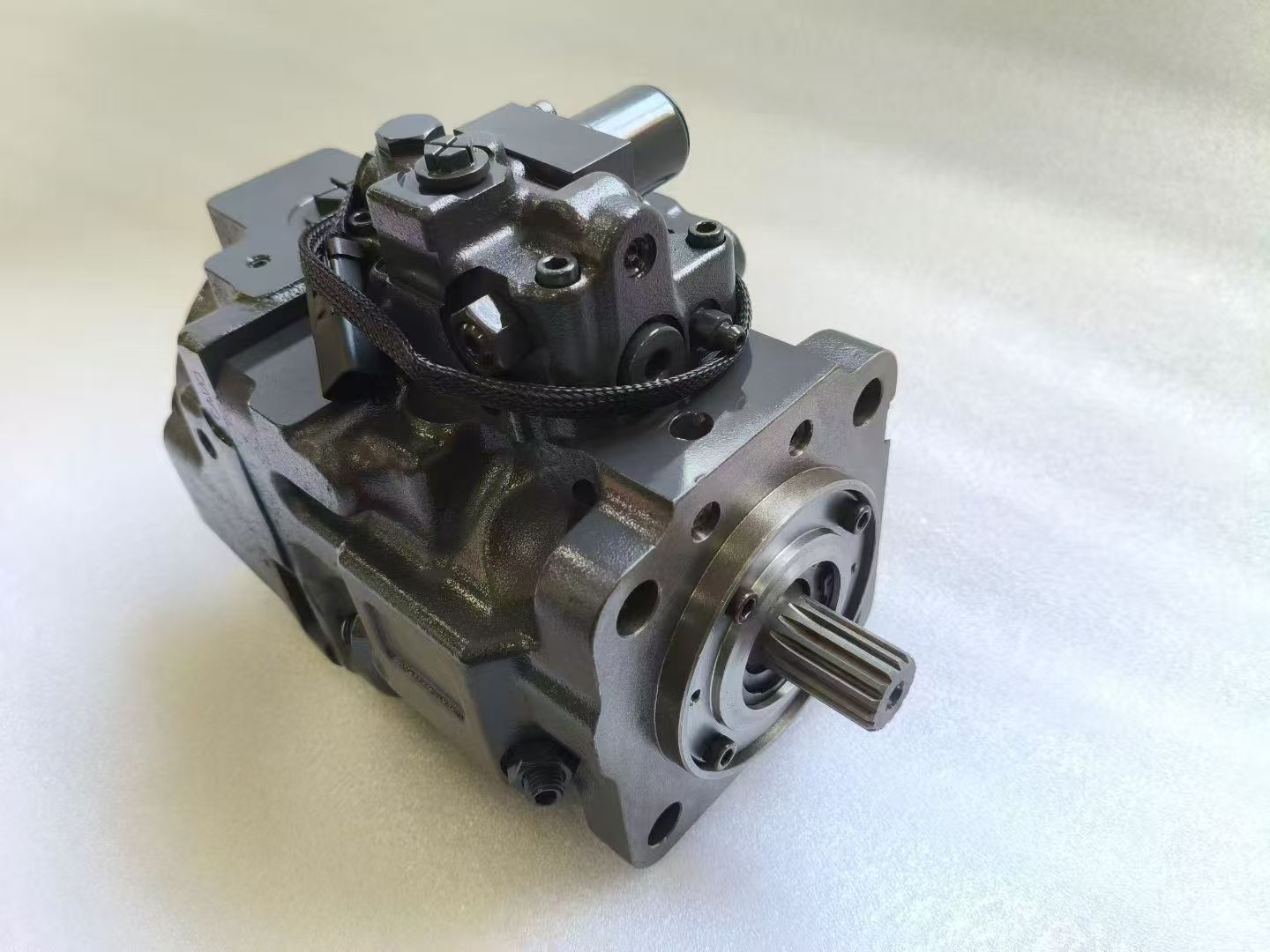

1. Part Information
• Part Number: 708-1S-00290
• Component Type: Hydraulic Pump Assembly (Fan Pump)
• Function: Powers the cooling fan system in Komatsu crawler dozers, ensuring optimal engine and hydraulic system temperatures under heavy-duty operation.
2. Compatible Models
• D65EX Crawler Dozer
• Engine: Komatsu SAA6D107E-1 (Tier 3 compliant)
• Operating Weight: ~18,500 kg
• Applications: Medium-scale earthmoving, grading, and land clearing.
• D65PX Crawler Dozer
• Engine: Same as D65EX (SAA6D107E-1)
• Operating Weight: ~19,200 kg (with additional counterweight)
• Applications: Heavy-duty dozing, ripping, and slope work.
3. Technical Specifications
【表格】
Parameter Details
Flow Rate ~120 L/min (at rated engine speed)
Pressure Rating 210 bar (continuous), 240 bar (peak)
Drive Type PTO (Power Take-Off) from main engine
Mounting Direct bolt-on to engine gearbox
Seal Type Double-lip nitrile rubber (NBR) seals
Weight ~28 kg
4. Key Features
• High-Efficiency Design: Optimized for Komatsu’s Tier 3 engines, reducing fuel consumption by up to 8% compared to older models.
• Durability: Hardened steel gears and ceramic-coated bearings for extended service life in abrasive environments.
• Easy Maintenance: Quick-access filter and replaceable seal kit (Part No. 708-1S-00291).
• Noise Reduction: Helical gear design minimizes vibration and noise (<85 dB at 1m distance).
5. Common Issues & Solutions
【表格】
Symptom Possible Cause Solution
Fan not rotating Low hydraulic pressure, worn pump Check pressure at pump outlet (should be ≥180 bar). Replace pump if internal leakage exceeds 5%.
Excessive noise Worn gears, misaligned shaft Inspect gear tooth wear (replace if pitch line error >0.1mm). Realign shaft per Komatsu TS-0023 guide.
Oil leakage Aged seals, cracked housing Replace NBR seals with Komatsu-approved kit (708-1S-00291). Weld housing cracks (use E7018 electrode).
Overheating Clogged filter, air in system Replace suction filter (Part No. 708-2K-0012). Bleed air from reservoir per Service Bulletin SB-2021-05.
6. Replacement Procedure
1. Preparation:
• Park machine on level ground, engage parking brake, and lower blade.
• Relieve hydraulic pressure by cycling controls 5–10 times.
2. Removal:
• Disconnect hydraulic hoses (label for reassembly).
• Remove mounting bolts (4x M12×30, torque spec: 85 N·m).
• Extract pump using a hydraulic jack (avoid prying housing).
3. Installation:
• Clean mating surfaces with emery cloth (grit #220).
• Apply Loctite 243 to bolts and torque to 85 N·m in a star pattern.
• Reconnect hoses with new O-rings (Part No. 708-3A-0045).
4. Testing:
• Start engine and run at idle for 5 minutes. Check for leaks.
• Verify fan speed matches specifications (1,200–1,500 RPM at rated engine speed).
