Product details

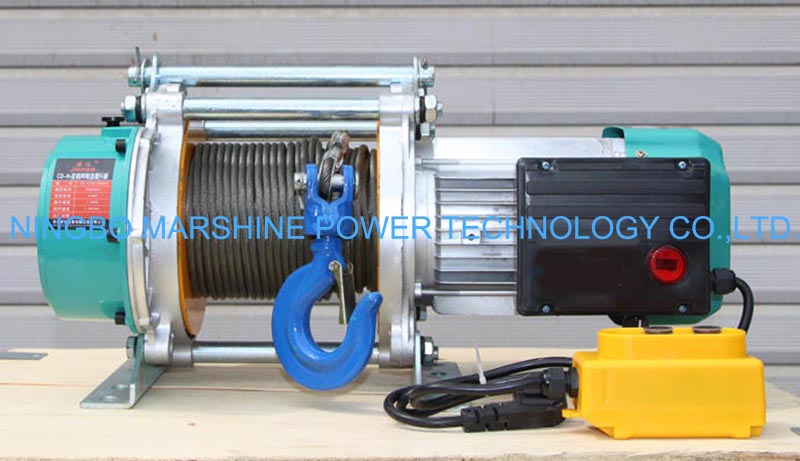

5T Lifting Electric Winch With 300 ft Cable
The MARSHINE 5T Lifting Electric Winch With 300 ft Cable is a heavy-duty lifting machine that can use in industrial tasks, which owns the high power out put features, and equipped with the reliable safety features, and the long-term reliability, especially the core of the load capacity. This machine owns a rated lifting capacity of 2500kg that make it suitable for the medium to heavy-duty operations, such as lifting the construction steel or the warehouse pallets. This lifting winch is backed by a 7.5kW pure copper electric motor, which can provide the strong and the consistent torque at a standard 380V industrial voltage. The motor of the lifting electric winch can avoid the power dips even under the full loads that is able to ensure the smooth lifting without sudden slowdowns, which can be a critical detail for the operations that demands the precision.
The speed and the rope capacity are also the stand out features of the MARSHINE 5T Lifting Electric Winch With 300 ft Cable.This machine operating speed is 16m/min that can cut down on waiting times when the electric winch loads to the heights from 30m to 100m. This electric winch owns the 300ft rope capacity and it is approximately 91.4 m in length, which can fit neatly on the winch's drum and this machine with a 15mm diameter that can balance the flexibility and the strength. The electric winch rope is thick enough to resist fraying from the regular use and can withstand the 2500kg loads, makes the rope suitable for the tall warehouses or the multi-story construction sites that needs the longer reach.
The MARSHINE 5T Lifting Electric Winch With 300 ft Cable includes key features that is able to protect both the users and the loads. This machine power-off automatic brake can engages instantly when the electricity fails, which is able to limit the load slippage to 80mm or less and far below the risky levels that could cause any damage. It also passes a static load test with 25% excess weight, which can prove it handles unexpected of the stress. From the overall perspective of this electric winch weighs 260kg, with an overall length of 1100mm, width of 530mm, and a 750mm channel steel base, which makes this heavy and wide base can keeps the electric winch stable during the lifting that is able to ensure no wobbling even when the 300ft rope is fully extended and carrying the maximum load.
The motor of the MARSHINE 5T Lifting Electric Winch With 300 ft Cable has large heat dissipation holes that cool faster than the traditional designs, which is able to prevent the overheating during the long shifts that important for busy sites and ensure the electric winch can run for the long hours. This machine has a closed gear box that uses 2.35L oil and with a simple requirement to change the oil every three months, which can keep the gear system using smoothly and so that to reduce the rope wear. The electric winch also fits into the tight spaces despite its size that benefit by the compact 530mm width, which can make it usable in the narrow workshop aisles or the small dock areas.
Product Parameter
| Model | KDJ-2500E |
| Rated Voltage (V) | 380V |
| Power (KW) | 7.5 |
| Rated Lifting Capacity (kg) | 2500 |
| Lifting Speed (m/min) | 16 |
| Lifting Height (m) | 30-100 |
| Wire Rope Capacity（ft） | 300 |
| Model | KDJ-500E | KDJ-1000E | KDJ-1500E |
| Rated Voltage (V) | 380 | 380 | 380 |
| Power (KW) | 1.5 | 3.0 | 4.5 |
| Rated Lifting Capacity (kg) | 500 | 1000 | 1500 |
| Lifting Speed (m/min) | 16 | 16 | 16 |
| Lifting Height (m) | 30-100 | 30-100 | 30-100 |
| Wire Rope Capacity（ft） | 300 | 300 | 300 |
