Product details

DANFOSS MCV116A3501 PRESSURE CONTROL PILOT

DANFOSS MCV116A3204 PRESSURE CONTROL PILOT

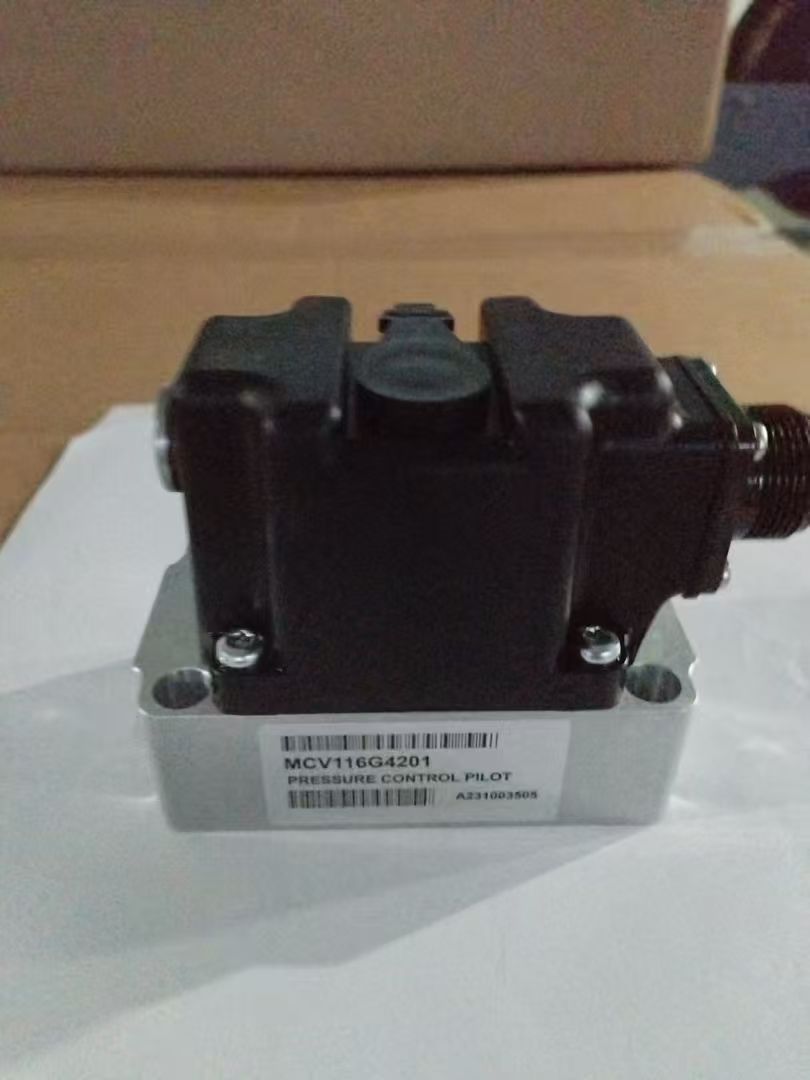

DANFOSS MCV116G4201 PRESSURE CONTROL PILOT

1. Core Definition

TheDanfoss Control Valve Moduleis an integrated valve control unit developed by Danfoss, combining electric actuators, valve bodies, and intelligent control algorithms. It is designed for precise regulation of fluid (liquid or gas) flow, pressure, or temperature. Its modular design enables rapid installation and system integration, making it widely used in industrial automation, HVAC (Heating, Ventilation, and Air Conditioning), energy management, and other fields.

2. Key Functions

• Precision Control: Drives valve opening via electric actuators to achieve closed-loop control of flow, pressure, or temperature.

• Adaptive Regulation: Built-in PID control algorithms automatically adjust valve positions based on sensor feedback to maintain system stability.

• Remote Monitoring: Supports communication protocols like Modbus and BACnet for integration with Building Automation Systems (BAS) or Industrial IoT (IIoT) platforms.

• Fault Diagnosis: Real-time monitoring of valve status (e.g., opening, torque, temperature) with alerts or safety modes triggered during abnormalities.

• Energy Optimization: Reduces energy waste through dynamic regulation, such as adjusting chilled/hot water flow in HVAC systems based on indoor load.

3. Product Types and Classifications

Danfoss control valve modules are categorized based on application scenarios and functional differences:

3.1 By Control Parameter

• Pressure Control Valve Modules:

• Used to maintain stable system pressure (e.g., steam pressure regulation, hydraulic system protection).

• Typical model:Danfoss PCV (Pressure Control Valve) Series.

• Flow Control Valve Modules:

• Precisely regulates fluid flow for applications like cooling water circulation and chemical process control.

• Typical model:Danfoss FCV (Flow Control Valve) Series.

• Temperature Control Valve Modules:

• Adjusts heat medium flow to control temperature, commonly used in district heating and heat exchange stations.

• Typical model:Danfoss TCV (Temperature Control Valve) Series.

3.2 By Actuator Type

• Electric Ball Valve Modules:

• Fast opening/closing for high-frequency regulation (e.g., air conditioning water systems).

• Features: Low noise, high reliability.

• Electric Butterfly Valve Modules:

• Large diameter and low flow resistance for large-pipeline flow control (e.g., industrial cooling water).

• Features: Compact structure, cost-effective.

• Electric Control Valve Modules:

• Continuous valve opening adjustment for precision control (e.g., laboratory equipment).

• Features: High resolution, excellent linearity.

3.3 By Communication Protocol

• Wired Communication Modules:

• Support RS485, Modbus RTU, and other protocols for traditional industrial control systems.

• Wireless Communication Modules:

• Integrate LoRa, Zigbee, or Wi-Fi for distributed or mobile device monitoring.

• Cloud-Connected Modules:

• Directly connect to Danfoss IoT platforms (e.g., Danfoss Ally™) for remote management and data analysis.

4. Typical Application Scenarios

• HVAC Systems:

• Regulates chilled/hot water flow in air conditioning systems to optimize indoor temperature and humidity.

• Examples: Shopping malls, hospitals, data centers.

• District Heating/Cooling:

• Controls energy distribution in heat or cold networks to balance user-side demands.

• Examples: Urban central heating stations, distributed energy systems.

• Industrial Process Control:

• Regulates fluid parameters in chemical, pharmaceutical, and other industries to ensure process stability.

• Examples: Reactor temperature control, cooling water circulation.

• Water Treatment Systems:

• Controls flow and pressure in dosing, backwashing, and other processes.

• Examples: Wastewater treatment plants, drinking water treatment stations.

• Renewable Energy:

• Regulates heat medium flow in solar thermal utilization systems to improve energy efficiency.

• Examples: Solar collectors, ground-source heat pumps.

5. Selection Guide

When selecting a Danfoss Control Valve Module, consider the following key parameters:

5.1 Technical Specifications

• Nominal Diameter (DN): Choose based on pipeline size (e.g., DN15-DN300).

• Pressure Rating (PN): Match system operating pressure (e.g., PN16, PN25).

• Flow Range: Select based on maximum/minimum flow requirements.

• Temperature Range: Adapt to medium temperature (e.g., -20°C to +180°C).

• Actuator Torque: Ensure the actuator can overcome valve resistance.

5.2 Control Requirements

• Control Precision: High-precision scenarios (e.g., laboratories) require regulating valves with excellent linearity.

• Response Speed: Fast-regulation scenarios (e.g., air conditioning water systems) need electric ball valves with short response times.

• Communication Protocol: Choose based on compatibility with existing systems (e.g., Modbus, BACnet).

5.3 Environmental Conditions

• Protection Level: Select IP65 or higher for outdoor or humid environments.

• Explosion-Proof Requirements: Choose Ex-certified models for flammable/explosive areas.

5.4 Additional Features

• Fail-Safe Mode: Valve automatically closes or opens during power failure (based on safety needs).

• Manual Operation: Supports on-site manual adjustment (for maintenance or debugging).

• Data Logging: Built-in memory for recording operational data (for fault tracing).

6. Installation and Maintenance

• Installation Requirements:

• Install vertically or horizontally to avoid actuator jamming due to tilting.

• Pipeline cleanliness must meet NAS 1638 Class 7 or higher to prevent valve damage from impurities.

• Commissioning Steps:

1. Verify actuator direction after power-on.

2. Set valve opening and feedback signal correspondence via the controller.

3. Simulate fault signals to validate safety mode activation.

• Maintenance Schedule:

• Inspect actuator lubrication and seals every 6 months.

• Replace valve internal filters annually (if applicable).

7. Advantages and Competitiveness

• High Reliability: Danfoss valve modules undergo rigorous testing (e.g., 100,000-cycle lifespan tests).

• Energy Efficiency: Dynamic regulation reduces energy consumption by 10%-30%.

• Easy Integration: Supports multiple communication protocols for compatibility with mainstream DCS/PLC systems.

• Global Support: Danfoss provides worldwide technical service centers for rapid response.

8. Typical Product Examples

• Danfoss AB-QM Pressure Independent Control Valve:

• Combines pressure-independent control valves with electric actuators for HVAC systems.

• Features: Automatic flow balancing to eliminate hydraulic imbalance.

• Danfoss VLT® HVAC Drive + Control Valve Module:

• Integrates frequency converters with valve control for pump group energy optimization.

• Features: Soft start, frequency regulation, and reduced motor energy consumption.
