Premium Sealing for Solar Connectors

2 month ago

0 0 

5 month

Product details

This is a grommet for solar connectors. It’s made specifically for solar connectors. It works as a supporting part in the electrical connection links of solar photovoltaic power generation systems and solar energy storage equipment. Like series-parallel connectors between solar panels, connectors between inverters and panels, and connectors of energy storage battery packs.It’s a dedicated part of Solar Connector Sealing Parts and Outdoor Waterproof Connector Seal. It helps cables pass through. It also provides functions like protection and sealing. It fully meets the application requirements of Connector Gasket and Interface Sealing Parts in solar energy systems.

Product Features

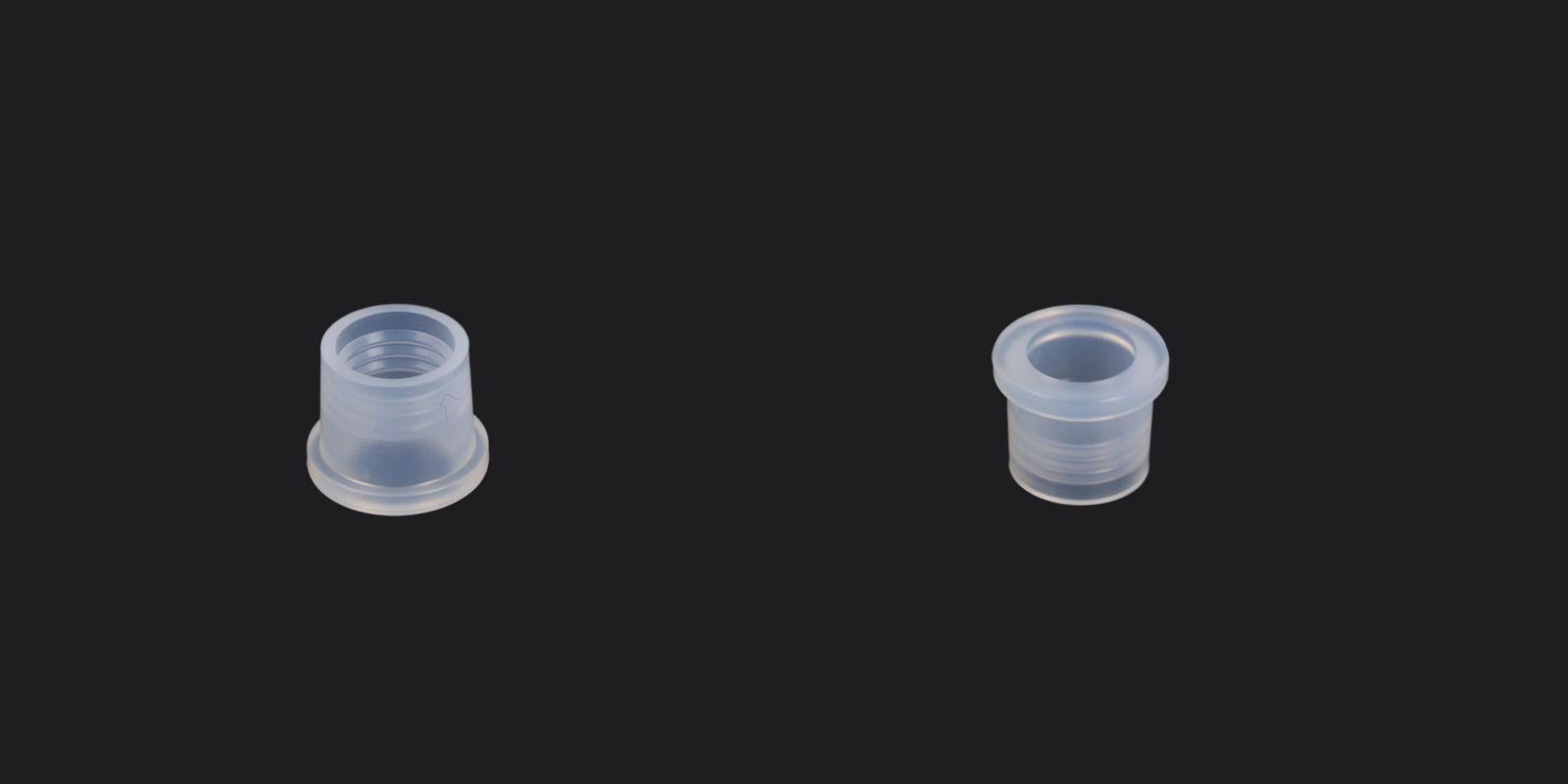

1.Shape Characteristics:It has an overall cylindrical shape. The top of it has an annular outward-turned flange. There’s a through-hole in the middle. The outer wall has annular grooves. This design lets it connect with the adaptive part of the connector through the grooves when installing. The outward-turned flange plays auxiliary roles. Like limiting the position and making sealing better. This structural design helps with the assembly precision of Connector Interface Seals and Mini Rubber Seals for Connector.

2. Product Functions

1)Cable Protection:It protects the cables that pass into the solar connector. It stops the cables from rubbing directly against the connector’s opening. This avoids damage to the cable sheath. It also makes sure the cable’s insulation performance is good and the conductive process is safe. Its protective effect is the same as the safeguarding role of Sealing Grommets for Connections for vulnerable cable-connector joints.

2)Sealing and Adaptation:It uses its own structure—like the outward-turned flange and grooves. It fills the gaps at the part where the cable passes through the connector. This achieves a certain level of sealing. It blocks things like dust, moisture, and sand from getting into the interior of the connector. This protects the internal electrical connection structure of the connector. It also makes the assembly of cables and connectors neater. Its sealing function meets the core requirements of Waterproof Connector Seal and Connector Interface Seals in outdoor electrical systems.

3)Shock Absorption and Cushioning:Solar equipment is used outdoors. Sometimes it’s affected by outdoor environments. Like slight vibrations or equipment shaking caused by wind. At times like these, the grommet can work as a cushion at the connection between cables and connectors. It reduces the impact of mechanical stress on the connection. This makes the connection more stable and lets it last longer. This cushioning performance makes Solar Connector Sealing Parts useful for more than just basic sealing—it expands their functional scope.

3. Performance Characteristics

1)Weather Resistance:Most solar equipment is used outdoors. So the grommet must stand complex climatic environments. Like ultraviolet radiation, humidity, and sand and dust. Even after being exposed outdoors for a long time, its physical and chemical properties stay stable. It won’t become brittle, crack, or change shape. This makes sure its protection and connection functions work. This weather resistance meets the durability standards of Outdoor Waterproof Connector Seal in harsh outdoor conditions.

2)High and Low Temperature Resistance:Solar equipment works in different temperatures. Especially in summer, it may be exposed to the sun and get very hot. In special environments like deserts or plateaus, the temperature is also high. In winter or high-latitude areas, the temperature is low. The grommet must keep working well in a wide temperature range. Like from -40℃ to 85℃, or even more extreme temperatures. It won’t lose elasticity or break. This ability to adapt to different temperatures is crucial for Solar Connector Sealing Parts to keep working in extreme climates.

3)Insulation:It’s an electrical connection component. So it must have excellent insulation performance. This stops leakage and short circuits. It makes sure the solar system is electrically safe. It also makes sure power generation and transmission are efficient. This insulation property is a key requirement for Connector Gasket and Sealing Grommets for Connections in electrical systems.

4)Aging Resistance:It’s exposed to outdoor environmental factors for a long time. Like ultraviolet radiation and ozone. So it must have good aging resistance. Even after being used for years, it can still keep its shape, elasticity, and sealing function. This reduces how often you need to replace it. It also lowers maintenance costs. This aging resistance meets the long service life requirements of Solar Connector Sealing Parts in outdoor applications.

5)Mechanical Strength and Elasticity:It must have a certain level of mechanical strength. This stops it from getting damaged or broken easily during installation. It also stops damage when it’s under external forces. Like when cables are pulled or when equipment vibrates and creates forces. At the same time, it must have moderate elasticity. This makes installation easier—it can deform a little to fit the connector. It also makes sure the elasticity doesn’t get worse a lot during long-term use. This keeps the sealing and cushioning effects. This mechanical performance is as good as that of high-quality Mini Rubber Seals for Connector.

6)Chemical Resistance:It may touch things like rainwater, dew (which has a small amount of acid-base substances), and air pollutants. So it must have good chemical corrosion resistance. It won’t get worse because of chemical reactions with these substances. This chemical stability meets the material standards of Waterproof Connector Seal and Interface Sealing Parts in complex outdoor chemical environments.
