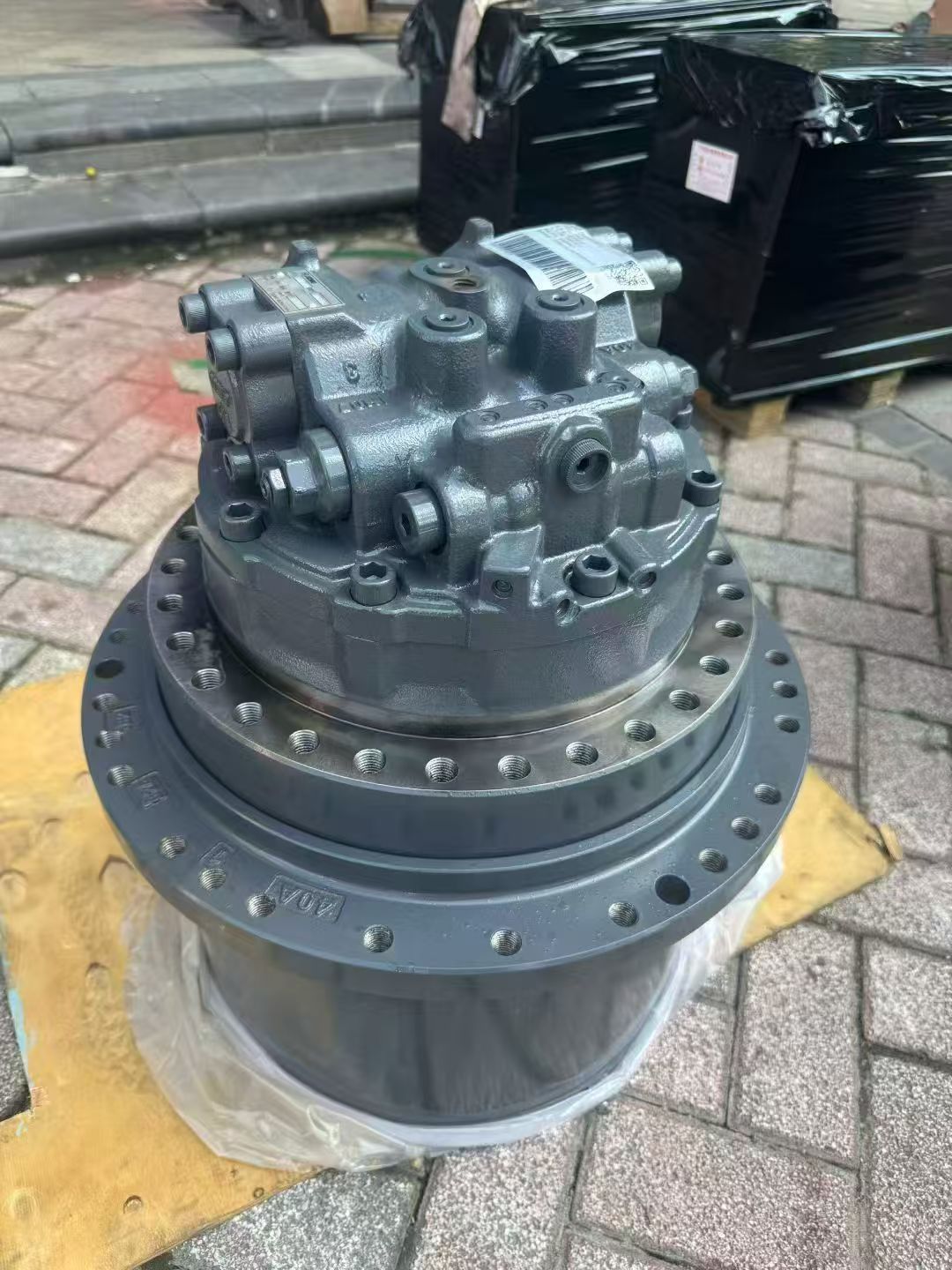

XCMG Traveling Assembly MAG-170VP

2 month ago

1 0 

Ningbo Hengnuo Hydraulic Drive Co.,Ltd

3 year

Product details

1. Product Name & Model

• Manufacturer: XCMG (Xuzhou Construction Machinery Group)

• Product: Travel Assembly (Undercarriage System)

• Model: MAG-170VP

2. Key Components & Structure

TheMAG-170VP Travel Assemblyis a complete undercarriage system designed for heavy-duty construction machinery, such as excavators, crawler cranes, and piling machines. It includes:

• Track Frame (Main Body)

• High-strength steel construction for durability under extreme loads.

• Optimized design to reduce weight while maintaining structural integrity.

• Track Shoes (Rollers/Pads)

• Heavy-duty rubber or steel tracks for superior traction on various terrains (mud, gravel, rock).

• Anti-slip grooves to prevent slippage during operation.

• Sprocket & Idler Wheels

• High-precision sprockets for smooth chain engagement.

• Sealed idler wheels with dust-proof bearings to extend service life.

• Track Rollers & Carrier Rollers

• Double-flange rollers to prevent track derailment.

• Heavy-duty bearings for reduced friction and wear.

• Hydraulic Tensioning System

• Automatic or manual tension adjustment to maintain optimal track pressure.

• Prevents excessive slack or over-tightening, reducing component stress.

3. Technical Specifications

【表格】

Parameter MAG-170VP Specifications

Track Width 600–800 mm (adjustable)

Ground Pressure 0.3–0.5 bar (depending on load)

Max. Load Capacity 50–80 tons (model-dependent)

Operating Speed 0–5 km/h (variable)

Material High-grade alloy steel (track frame)

Weight Approx. 8–12 tons (complete assembly)

4. Applications

TheMAG-170VP Travel Assemblyis widely used in:

• Excavators(Medium to Large-Scale)

• Crawler Cranes(Heavy Lifting)

• Piling Machines(Deep Foundation Work)

• Drilling Rigs(Mining & Geotechnical)

5. Performance Advantages

• Enhanced Durability

• Corrosion-resistant coatings and sealed bearings extend service life in harsh environments.

• Improved Traction

• Optimized track shoe design ensures stability on soft or uneven ground.

• Reduced Maintenance

• Modular design allows easy replacement of worn components (rollers, sprockets).

• Fuel Efficiency

• Low rolling resistance minimizes energy consumption during movement.

6. Compatibility

Designed to fitXCMGand other OEM machinery models, including:

• XCMG Excavator Series: XE200, XE260, XE370, XE470

• Crawler Crane Models: XGC55, XGC85, XGC150

• Customizablefor third-party equipment with adapter kits.

7. Maintenance & Service

• Regular Inspection

• Check track tension, roller wear, and sprocket alignment monthly.

• Lubrication

• Grease all moving parts (rollers, idlers) every 250 operating hours.

• Replacement Intervals

• Track shoes: 1,500–3,000 hours (depending on terrain).

• Sprockets/idlers: 3,000–5,000 hours.

8. Warranty & Support

• Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

• Global Service Network: XCMG provides technical support and spare parts worldwide.
