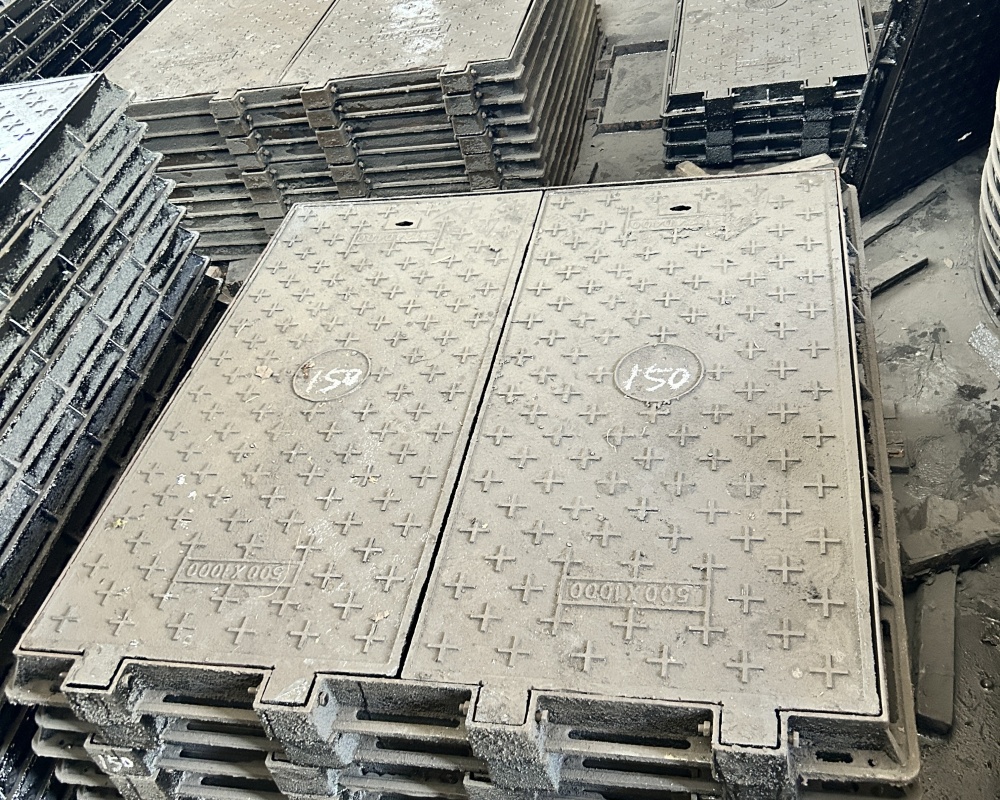

E600 500×1000 mm Double Ductile Iron Manhole Cover
This E600-class 500×1000 mm double-leaf ductile iron manhole cover is specifically designed for heavy-duty applications such as harbors, docks, logistics zones, airports, and industrial yards. Certified to EN 124 E600, it offers outstanding load capacity — up to 60 tonnes — making it ideal for areas with constant heavy vehicular traffic including trucks, cranes, and containers.
| Specification | Description |
|---|---|
| Model | E600 Double Ductile Iron Manhole Cover |
| Clear Opening | 500 mm × 1000 mm (each cover panel) |
| Overall Size | Approx. 1100 mm × 1100 mm (including frame) |
| Load Class | E600 – up to 60 tonnes |
| Material | Ductile Iron (QT500-7 / EN-GJS-500-7) |
| Surface Design | Anti-slip checker pattern with embossed “EN124 E600” label |
| Coating | Black bitumen paint or optional rust-resistant coating |
| Opening Style | Double-leaf with lifting holes |
| Brand | HXW |
| Model | E600 500×1000 mm Double |
Contact Us
Looking for E600 manhole cover, customizable manhole covers for demanding industrial environments?
Chongzhou Hongxinwei Metal Manufacturing Co., Ltd. provides certified, project-specific solutions in ductile iron.
Request a quote or drawing today, and we’ll help build strong foundations for your infrastructure.
