M703A 40m USB Interface Industrial Distance Sensor Arduino

JRT manufactures the industrial laser distance transducer more than 17 years.Since 2004, there are many models middle range sensor, including M512A, M701A, M703A, M88B etc. The M703A model distance sensor is one of popular types, as it has small size(45*25*12mm), can be connected to Arduino, can measure up to 40m long range etc. How about you?
Why this model distance sensor?
>1. 512A/703A laser distance module can be connected to Arduino, many of our customers have been doing that successfully.
>2. The laser distance module is good for industrial automation.

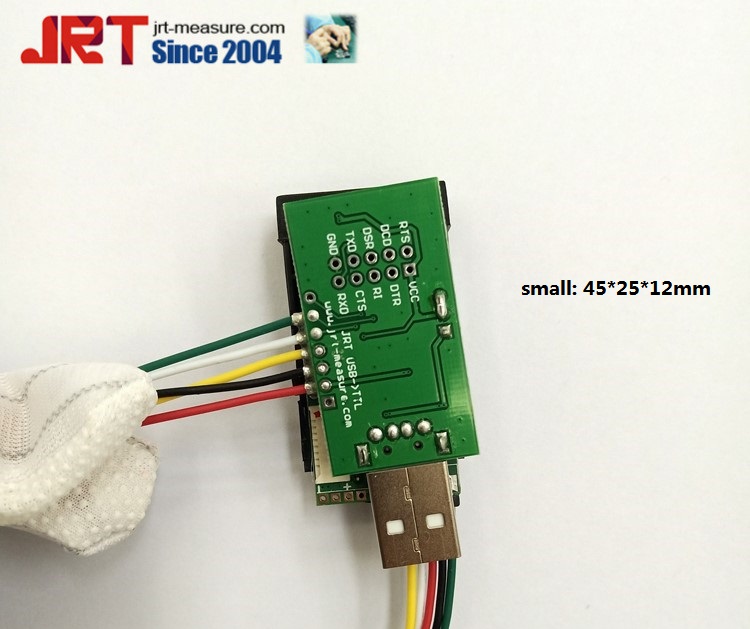

>3. The model is very small of 45*25*12mm.
NEW Serial Port Test Software:
JRT updates the test software for our Laser Distance Sensors, customers can order the usb cable model distance sensor to test.

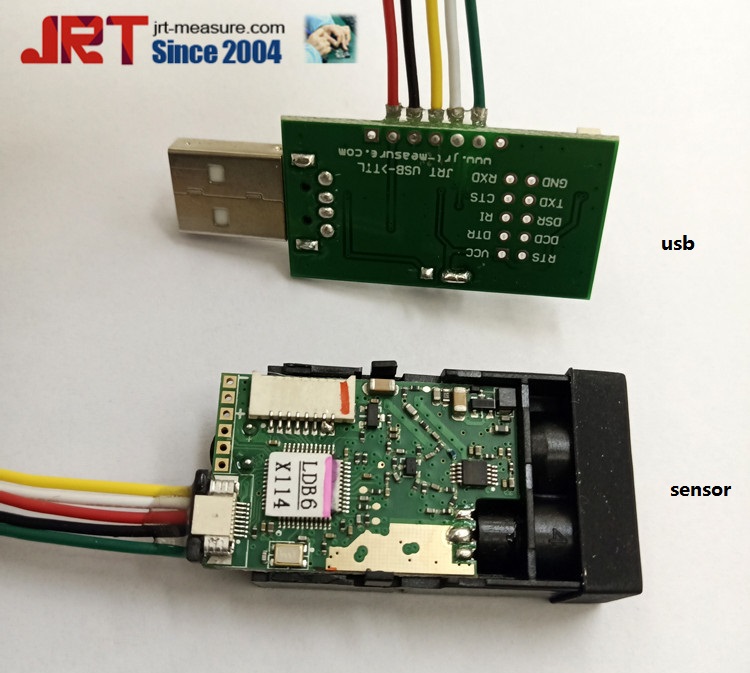

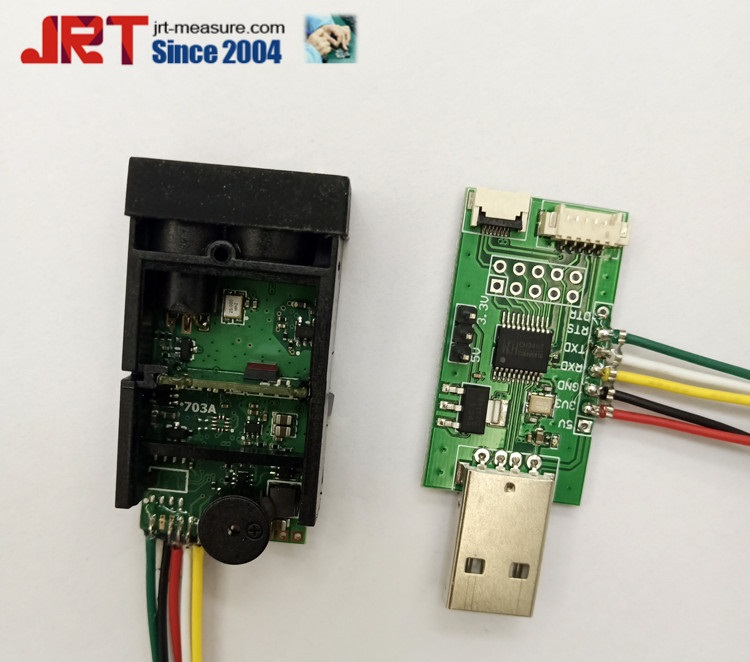

Detailed Pictures:

Parameters:

Model                       1M703A-b210423n-40m
Accuracy                  ±1 mm (0.04 inch)
Measuring Unit        mm
Measuring Range    0.03-40m
Measuring Time      0.125~4 seconds
Laser Class            Class II
Laser Type             620-690nm, <1mW
Size                        45x25x12mm
Weight                    About 10g
Voltage                  DC2.0~3.3V
Electrical Level      TTL/CMOS
Operating Temperature          0-40 ℃ (32-104 ℉ )
Storage Temperature             -25~60 ℃  (-13~140 ℉)

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.

Applications:

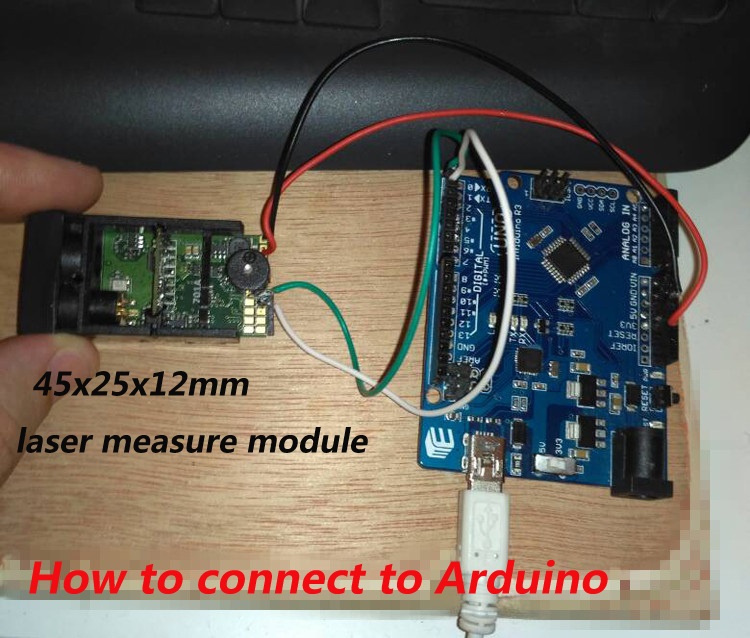

Question: How to connect JRT Laser Distance Sensor to your Arduino?

Answer: Choose the M703A 40m USB Interface Industrial Distance Sensor.
