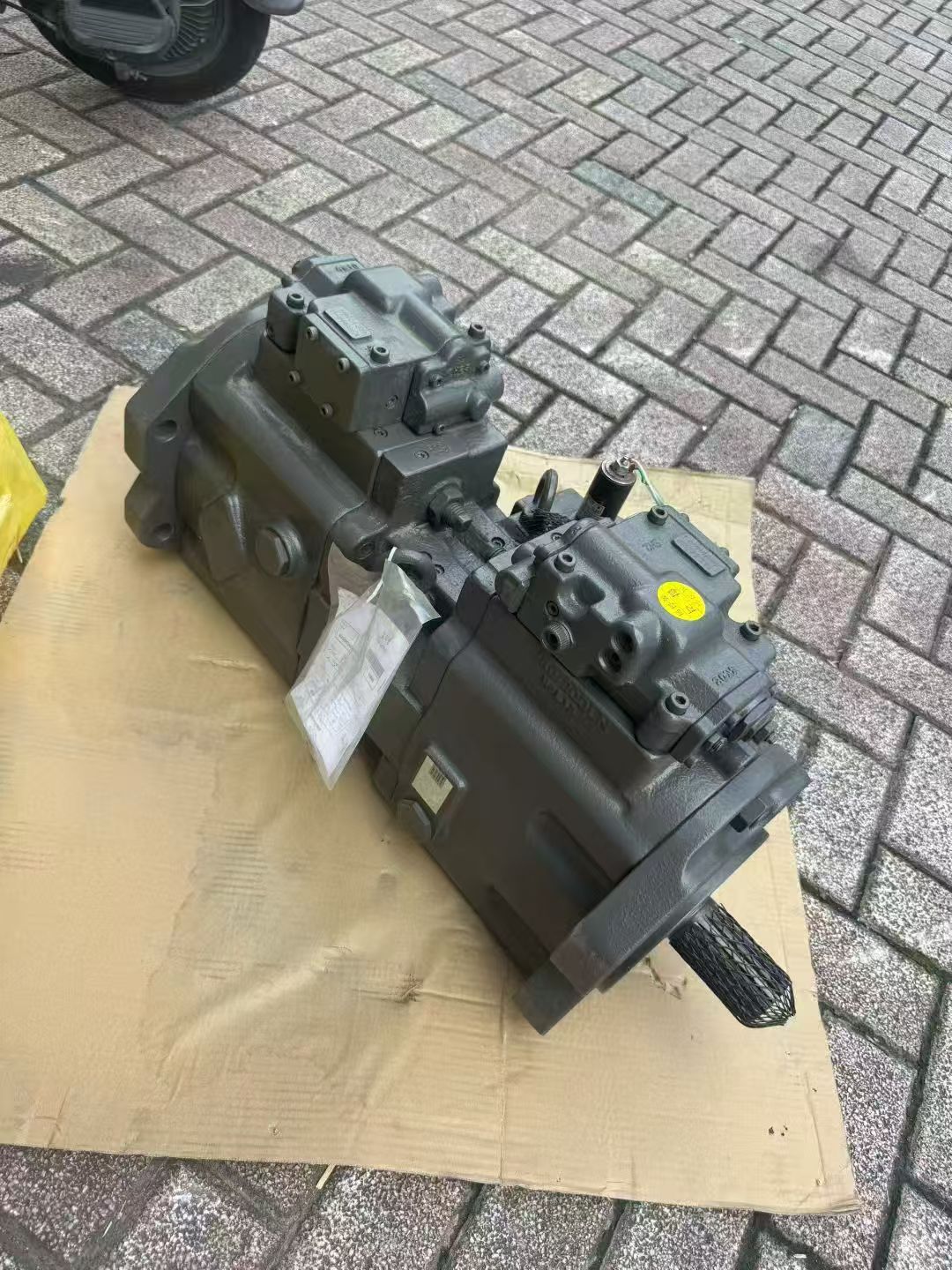

XCMG 370 Main Pump (Model: K5V160DT) Technical Specifications

（XCMG 370 Hydraulic Main Pump K5V160DT Technical Data）

1. Core Parameters

【表格】

Parameter Specification Notes

Model K5V160DT XCMG Customized Model

Type Axial Piston Pump (Variable Displacement) Adjustable Displacement: 80-160 cm³/rev (Optional)

Rated Pressure 35 MPa (350 bar) Continuous Operating Pressure

Peak Pressure 40 MPa (400 bar) Short-Term Allowable Pressure

Displacement 160 cm³/rev

Speed Range 600-2200 rpm Optimal Efficiency Range: 1200-1800 rpm

Control Method Electro-Hydraulic Proportional Control Supports PWM/Voltage/Current Input

Weight Approx. 120 kg Includes Mounting Flange & Accessories

2. Key Features

• High Efficiency

• 92% volumetric efficiency, reducing energy loss

• Low leakage design for improved system performance

• Durable Construction

• Hardened steel cylinder block for wear resistance

• High-pressure seals with ≥10,000-hour lifespan

• Smart Control

• Built-in pressure compensation for adaptive load handling

• CANbus/J1939 protocol compatibility for industrial automation

• Environmental Adaptability

• Operating temperature range: -20°C to +80°C

• IP65-rated enclosure (dust and water resistance)

3. Application Scenarios

• Heavy-Duty Construction Machinery

• XCMG 370 Series Excavators

• Rotary Drilling Rigs, Piling Machines

• Industrial Hydraulic Systems

• Metal Die-Casting Machines, Injection Molding

• Material Handling Systems (e.g., Cranes, Lift Platforms)

4. Compatibility Notes

• Hydraulic Fluid Requirements

• Viscosity range: 15-46 cSt (at 40°C)

• Cleanliness: NAS Class 6 or better (ISO 4406 18/16/13 recommended)

• Electrical Interface

• Input voltage: 12V/24V DC

• Signal types: Analog (0-10V/4-20mA) or Digital (PWM)

5. Maintenance Recommendations

• Filter Replacement Intervals

• Suction filter: 500 hours

• Return filter: 1,000 hours

• High-pressure filter: 2,000 hours (optional)

• Common Fault Codes & Solutions【表格】

Fault Code Symptom Probable Cause Recommended Action

E01 System Overpressure Relief Valve Malfunction Adjust Relief Valve Setting

E05 High Oil Temperature Clogged Cooler/Viscosity Issue Clean Cooler/Replace Fluid

E12 Abnormal Pump Noise Air Ingress/Bearing Wear Bleed System/Replace Bearings
