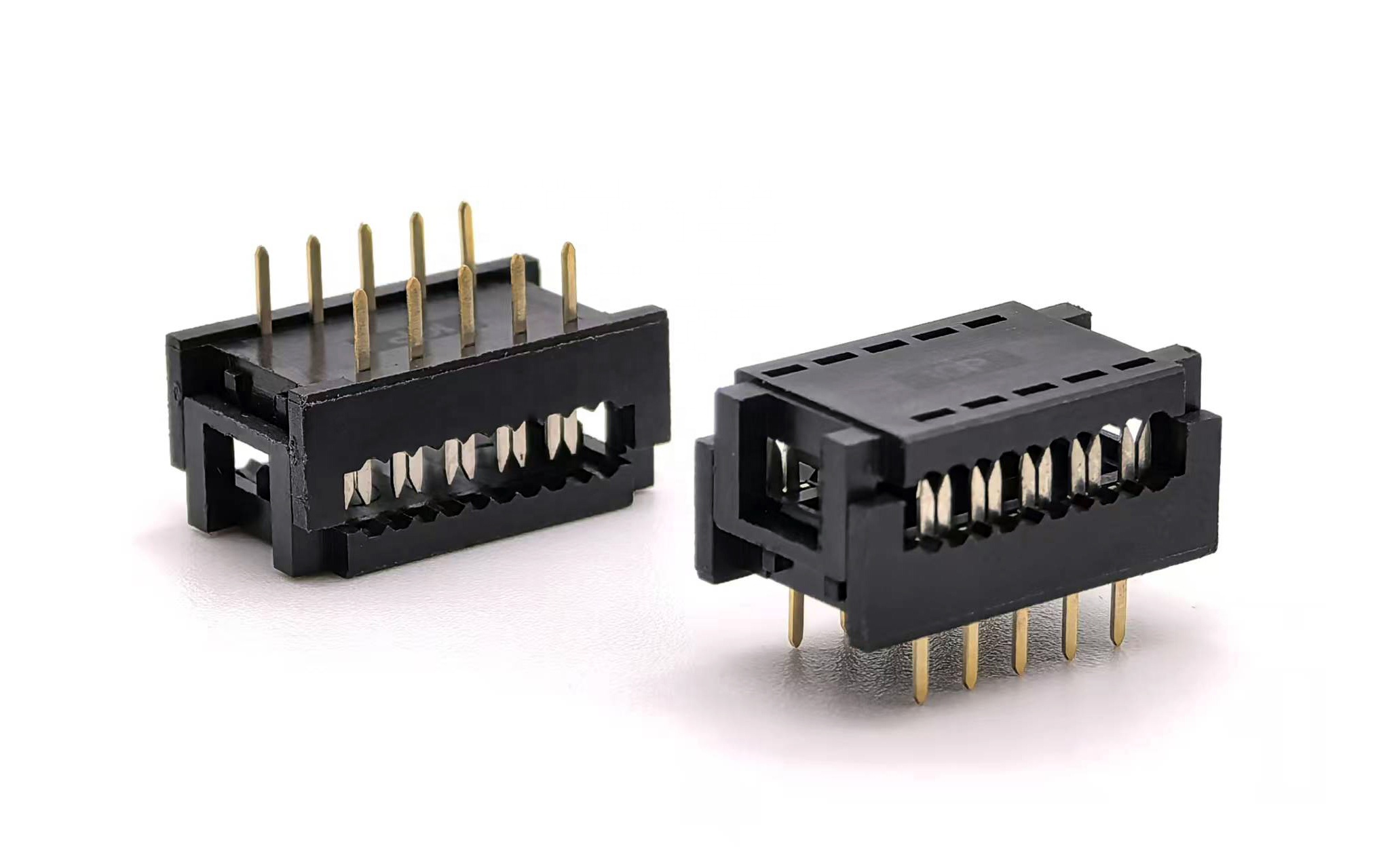

10-Pin IDC Plug with 0.3 Row Pitch Selective Gold Brass Contacts 2.54mm Pitch for Wire Connections

11 month ago

62 0 

2 year

Product details

2.54mm Pitch IDC Connector 10P

YZTECH introduces the 2.54mm Pitch IDC Connector 10P—a dual-row connector engineered for high-precision wire connections in industrial and consumer electronics. This two-piece header connector combines male/female versatility with Insulation Displacement Contact technology, enabling rapid wire termination without pre-stripping. The black plastic colloidal housing, reinforced with flame-retardant additives, achieves UL94 V-0 certification while maintaining dielectric strength for 1000V applications. Rated for 2A current per pin and -40℃~+105℃ operation, this 2.54mm idc connector for wire connections excels in automotive, industrial control, and power management systems.

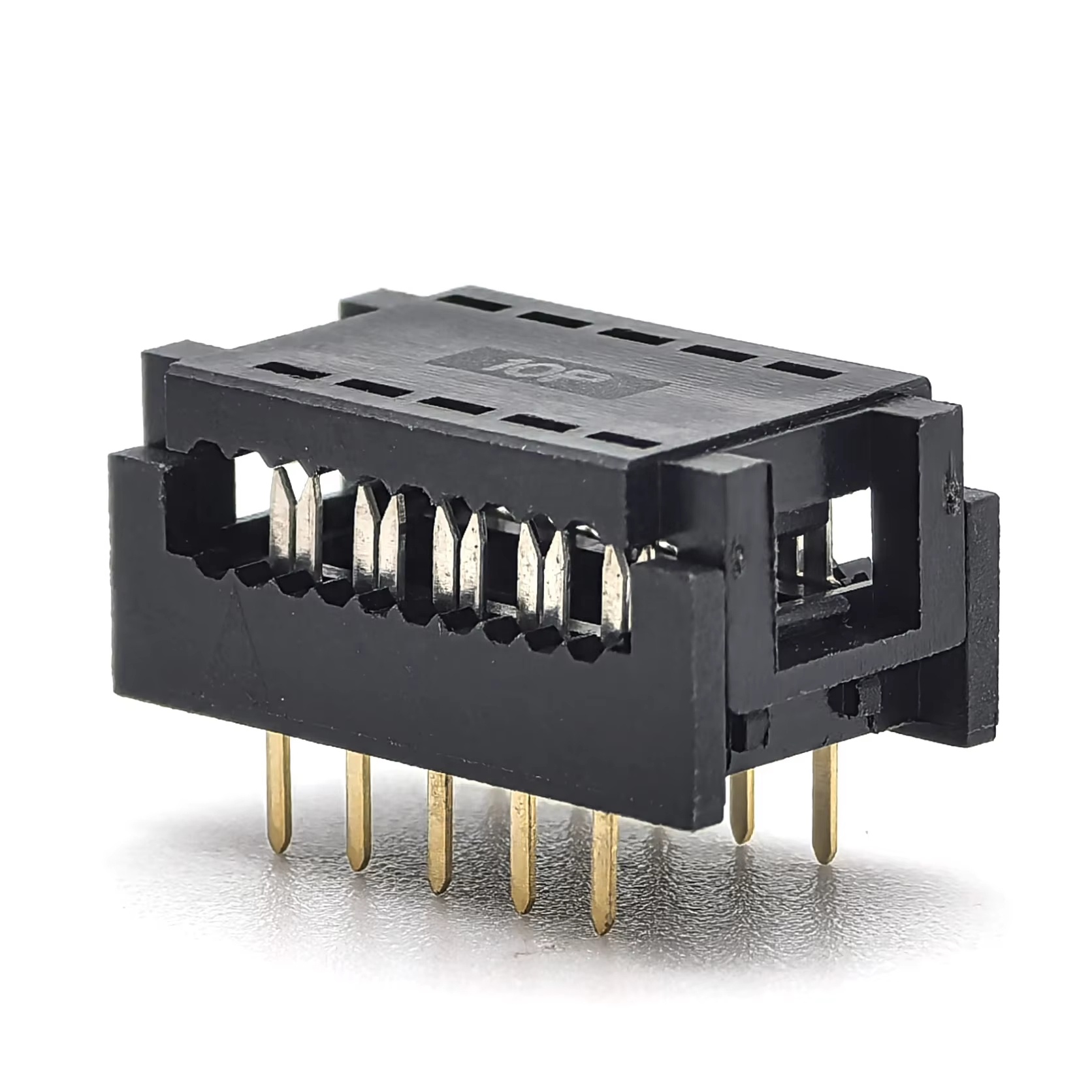

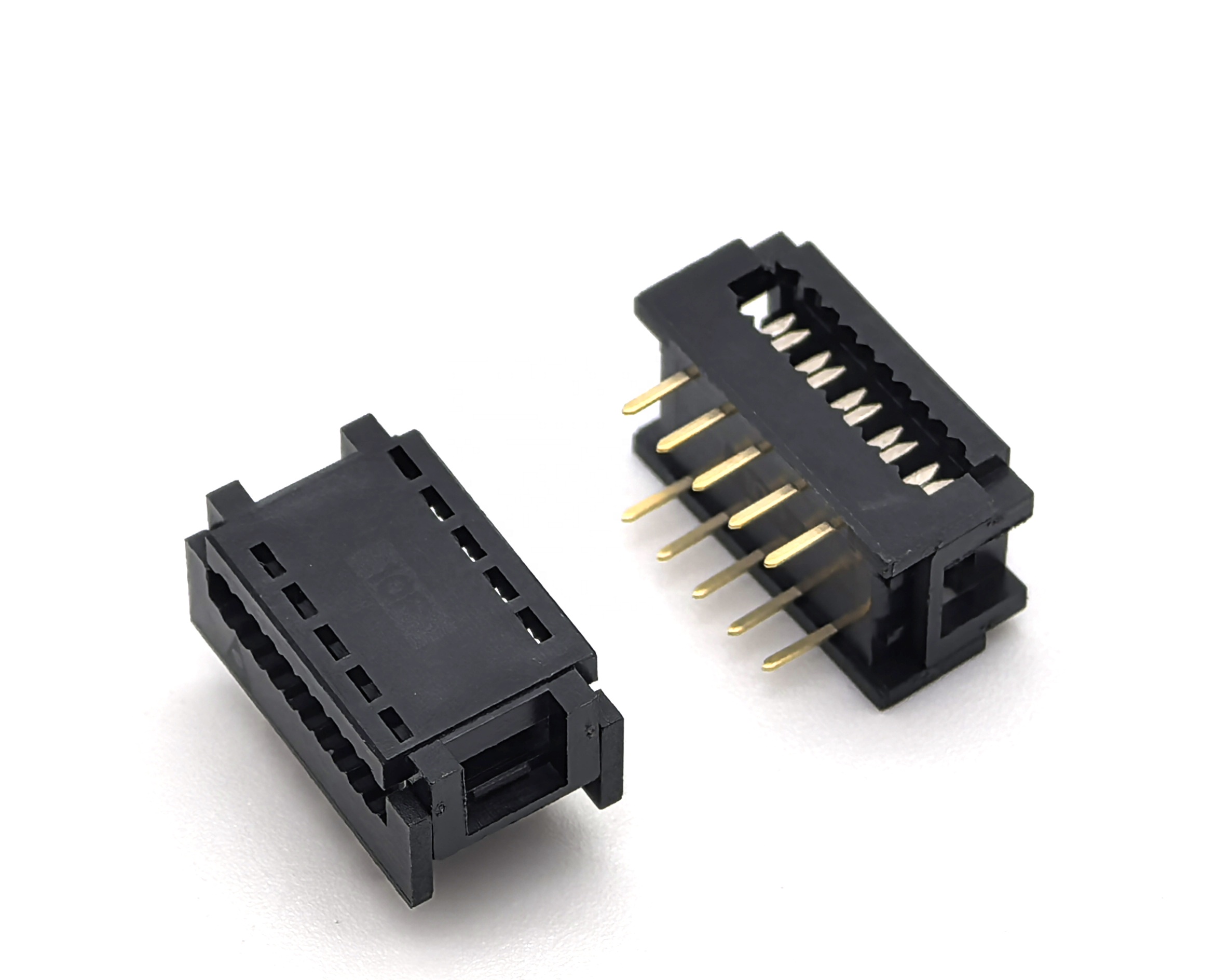

10-Pin IDC Plug with 0.3 Row Pitch Selective Gold Brass Contacts 2.54mm Pitch for Wire Connections

The 2.54mm IDC connectors two-piece construction incorporate PA6T-grade polymers for enhanced thermal stability, withstanding maximum soldering temperatures of 260℃ for 6 seconds without degradation.The two-piece design features a separate housing and contact assembly, enabling easy field repairs and reducing manufacturing waste. Compared to single-row alternatives, this insulation displacement connectors black plastic offer superior strain relief for wire connections, crucial in vibration-prone environments like automotive under-hood applications. Its standardized DIN-type dimensions ensure compatibility with global PCB manufacturing standards, while the box packaging format reduces customs inspection times and import tariffs.

The 2.54mm IDC header connector’s application-focused design—optimized for wire connections. Manufacturers benefit from YZTECH’s global supply chain network, which ensures rapid prototyping and volume production with minimal lead times.The box packaging ensures component integrity during global logistics, while the brass contacts with bronze half-gold and nickel plating provide low contact resistance and corrosion resistance. Its compact rectangular shape and 2.54mm pitch align with standard PCB layouts, reducing design cycle times for OEMs.
