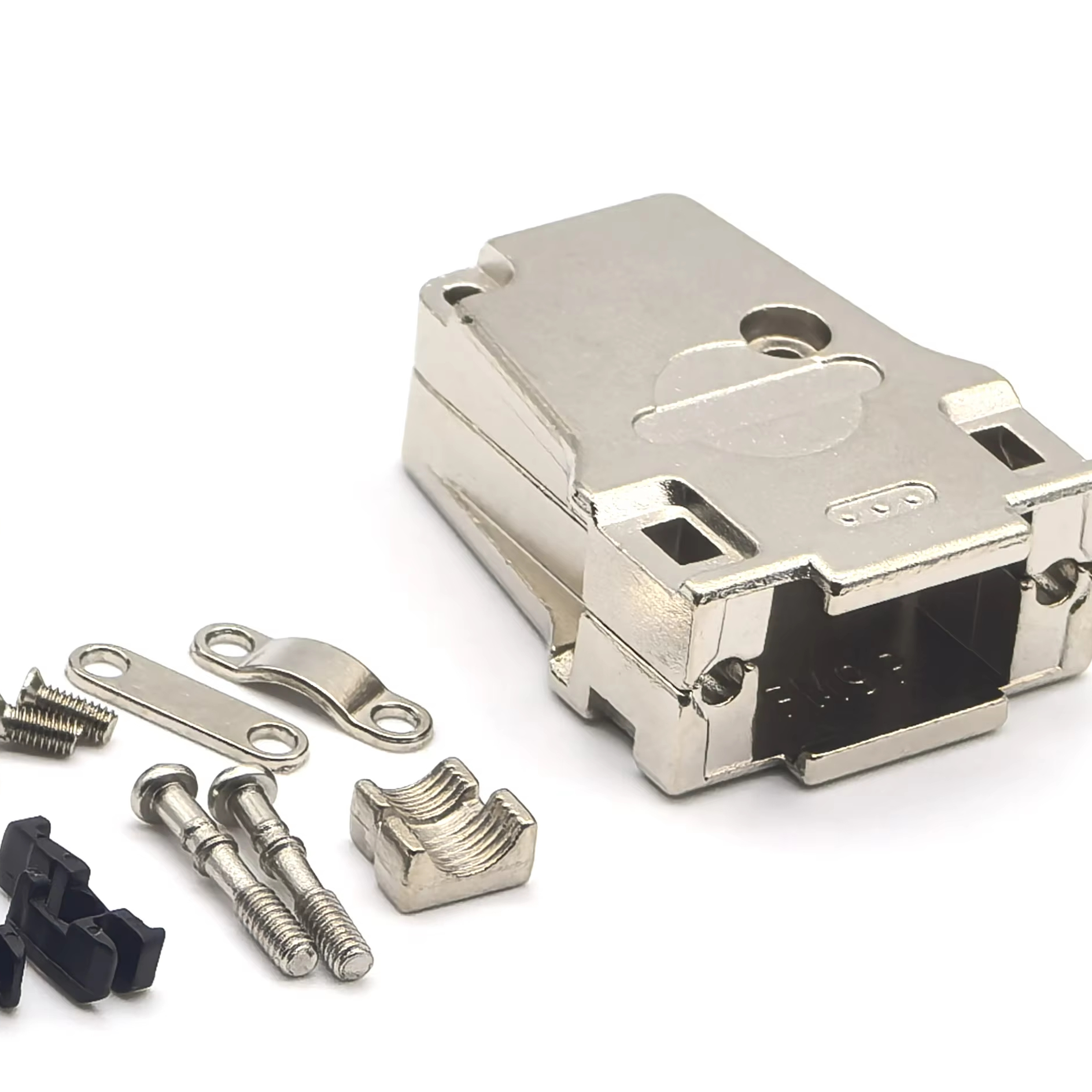

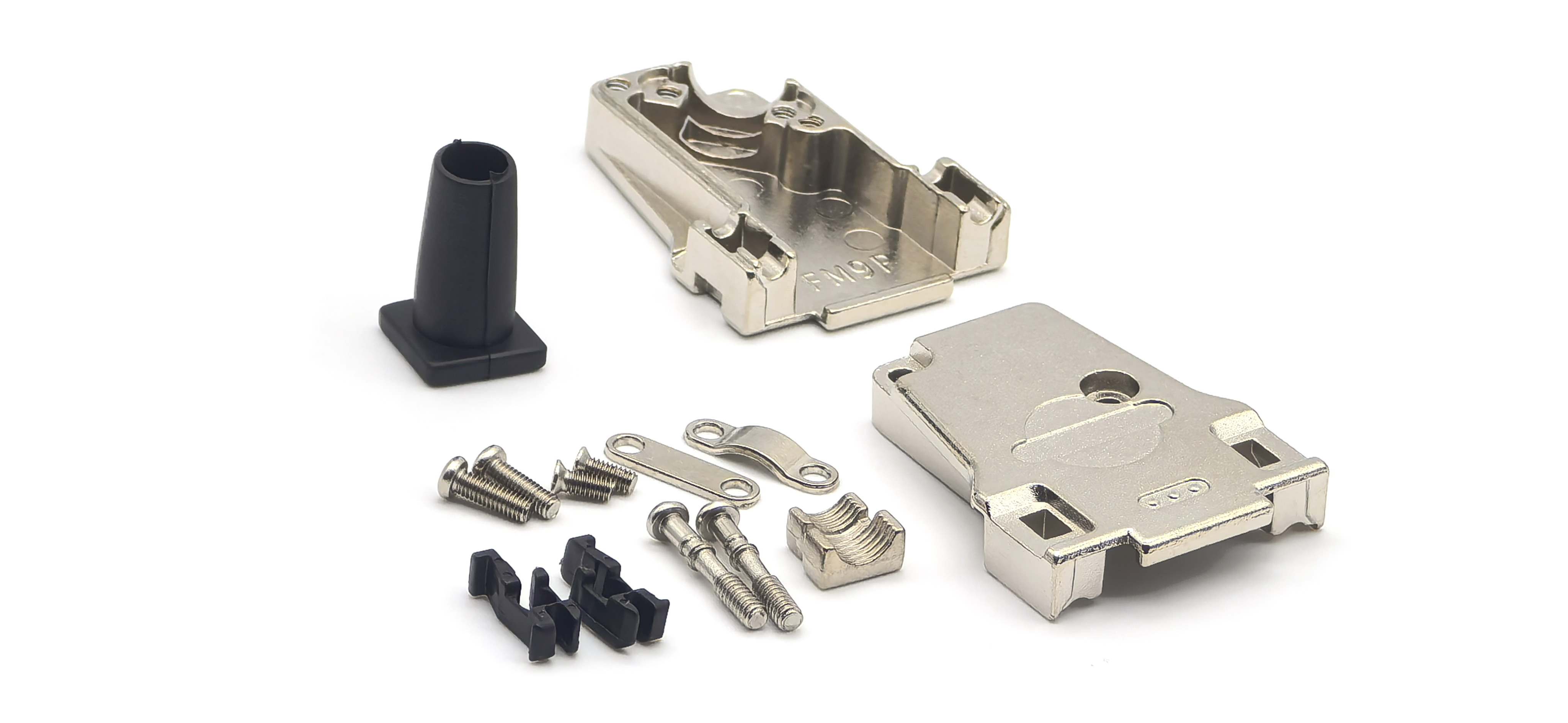

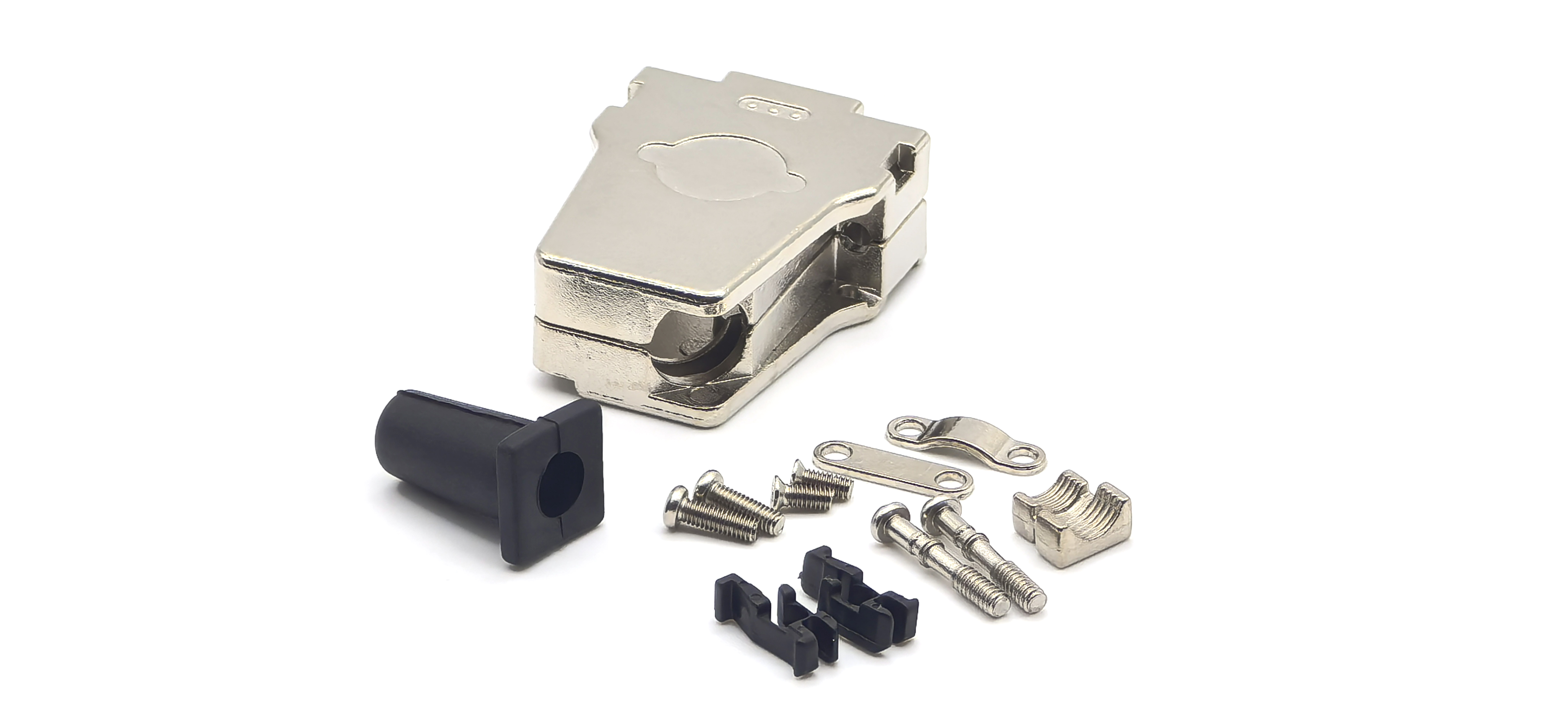

F type DB9P Zinc alloy shell with straight exit+clip+screw parts

4 week ago

0 0 

6 month

Product details

The YZTECH F-Type DB9P Zinc Alloy Shell D-Sub Connector redefines reliability in dual-row DIN-standard PCB interfaces. Engineered with 45-degree outgoing line installation and male gender contacts, this solder type D-sub connector supports 9P/15P/25P/37P configurations with a 3-7.5A rated current range.The zinc alloy shell provides exceptional mechanical strength and EMI shielding, while the tin-plated solder cup contacts ensure low-resistance connections and corrosion resistance. Compatible with wire-to-wire D-sub and solder type D-sub applications, its 45-degree exit design optimizes cable routing in compact PCB layouts.

Featuring a zinc alloy shell with straight exit + clip + screw parts, this D-sub solder cup connector delivers unmatched durability in harsh operating environments. The dual-row configuration maximizes pin density while maintaining signal integrity across -55°C to +105°C operating ranges. The solder type D-sub design allows for efficient manual or automated soldering processes, with tin-plated contacts ensuring reliable electrical connections under thermal cycling conditions. Its 45-degree outgoing line method minimizes mechanical stress on PCB traces, enhancing long-term reliability. The connector’s wire-to-wire D-sub capability supports flexible cable management.

Certified by UL for global trade, this D-Sub Connectors series ensures seamless integration into international supply chains.Its DIN-standard footprints simplify PCB layout design while supporting solder type D-sub and d sub solder cup configurations.The connector’s zinc alloy shell and screw parts enhance mechanical stability in high-vibration environments, such as automotive and aerospace systems. The box packaging supports efficient pick-and-place automation, reducing production cycle times.Its solder type D-sub design and UL certification make it a trusted choice for high-reliability systems worldwide.

F type DB9P Zinc alloy shell with straight exit+clip+screw parts
