Phenolic Glass Fiberboard: Industrial Applications And Custom Processing Of High-Performance Insulation Materials
4 week ago
Product details
Product Composition

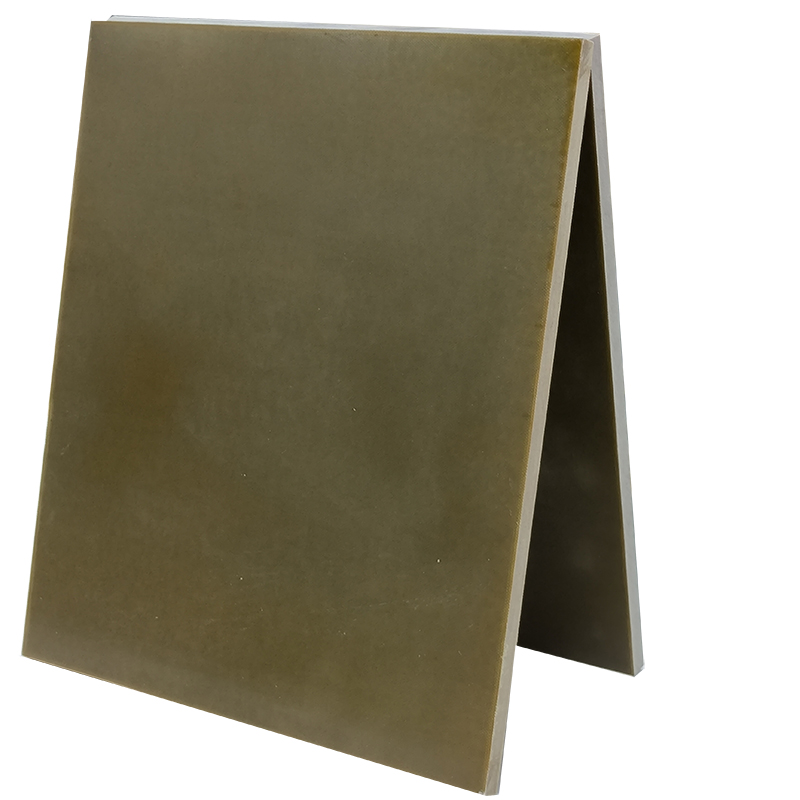

Phenolic fiberglass cloth board is mainly composed of phenolic resin and glass fiber cloth.
Product Specifications
Thickness: 0.2mm - 100mm
Dimensions: 1020mm x 2020mm
Performance Characteristics
1. Mechanical Properties: High strength, high hardness, good impact resistance, and good wear resistance.
2. Heat Resistance: Heat resistance is typically Class B (130°C), with some models reaching higher grades.
Dimensionally stable and resistant to deformation at high temperatures.
3. Electrical Insulation: Excellent electrical insulation, with high insulation resistance and compressive strength, making it suitable for insulating components in motors, electrical appliances, and other equipment.
4. Chemical Resistance: Excellent chemical resistance, including resistance to organic solvents, organic acids, and dilute inorganic acids, making it suitable for use in many chemical equipment.
5. Other Characteristics: Density approximately 1.35 g/cm³, half the weight of aluminum; easy to process (can be sawed, drilled, turned, milled, and planed); however, it has a high water absorption capacity, which degrades its electrical insulation properties.
Advantages
1. High Mechanical Strength: High strength, high hardness, impact resistance, and wear resistance.
2. Good Heat Resistance: Typically heat resistance grade B (130°C).
3. Excellent Electrical Insulation: Excellent electrical insulation properties.
4. Chemical Resistance: Good resistance to acids, alkalis, and oils.
5. Easy Machinability: Suitable for cutting, drilling, milling, and other machining operations.
Application Fields
1. Electrical equipment manufacturing: such as insulating components, partitions, and terminal blocks.
2. Mechanical components: such as gears, bearing gaskets, and other wear-resistant parts.
3. Electronics industry: used in the production of circuit boards, etc.
4. Chemical equipment: manufacturing corrosion-resistant flanges and seals.
5. Rail transit and aerospace: manufacturing high-temperature-resistant brackets and cabin partitions.
Our company is deeply engaged in the field of high-performance engineering plastics and insulation materials, and is committed to providing innovative material solutions for the global high-end manufacturing industry. Our main products include high-end engineering plastic sheets/rods such as polyoxymethylene (POM), ABS, nylon (PA), polycarbonate (PC), polyphenylene sulfide (PPS), polyetherimide (PEI), polyetheretherketone (PEEK), etc. We also provide special insulation materials such as bakelite (phenolic laminate) and epoxy glass fiber board. With excellent properties such as high temperature resistance, wear resistance, and high strength, our products are widely used in new energy vehicles, smart electronics, industrial machinery, aerospace and other fields.
FAQ
1. Q: How is its chemical resistance?
A: It is resistant to organic solvents, organic acids, and dilute inorganic acids, surpassing most insulating boards (such as bakelite). However, it is not suitable for use in strong alkaline environments.
2. Q: Is it machinable?
A: It is superior to epoxy glass cloth and phenolic board. It can be easily sawed, drilled, milled, and turned, and is not prone to cracking or chipping.
3. Q: Does it offer advantages in weight and density?
A: With a density of approximately 1.35 g/cm³, it is half the weight of aluminum and lighter than metal and most laminates, making it suitable for lightweight applications such as aviation and rail transportation.
4. Q: Is its performance stable at high temperatures?
A: It can operate for long periods of time at temperatures between 120°C and 130°C, maintaining dimensionally stable performance and maintaining no deformation at high temperatures. It is superior to polystyrene and polyurethane foam.
5. Q: Is it suitable for use in high-humidity environments? A: Yes. The fiberglass backing makes phenolic board significantly more moisture-resistant than cotton-based phenolic board, allowing it to be used in humid environments or with transformer oil.
6. Q: What are its main applications? A: Widely used in motor insulation, mechanical wear-resistant parts (such as gears and bearing pads), corrosion-resistant parts for chemical equipment, and lightweight aerospace structural parts, replacing metal or ordinary plastics to achieve lightweight and high reliability.
