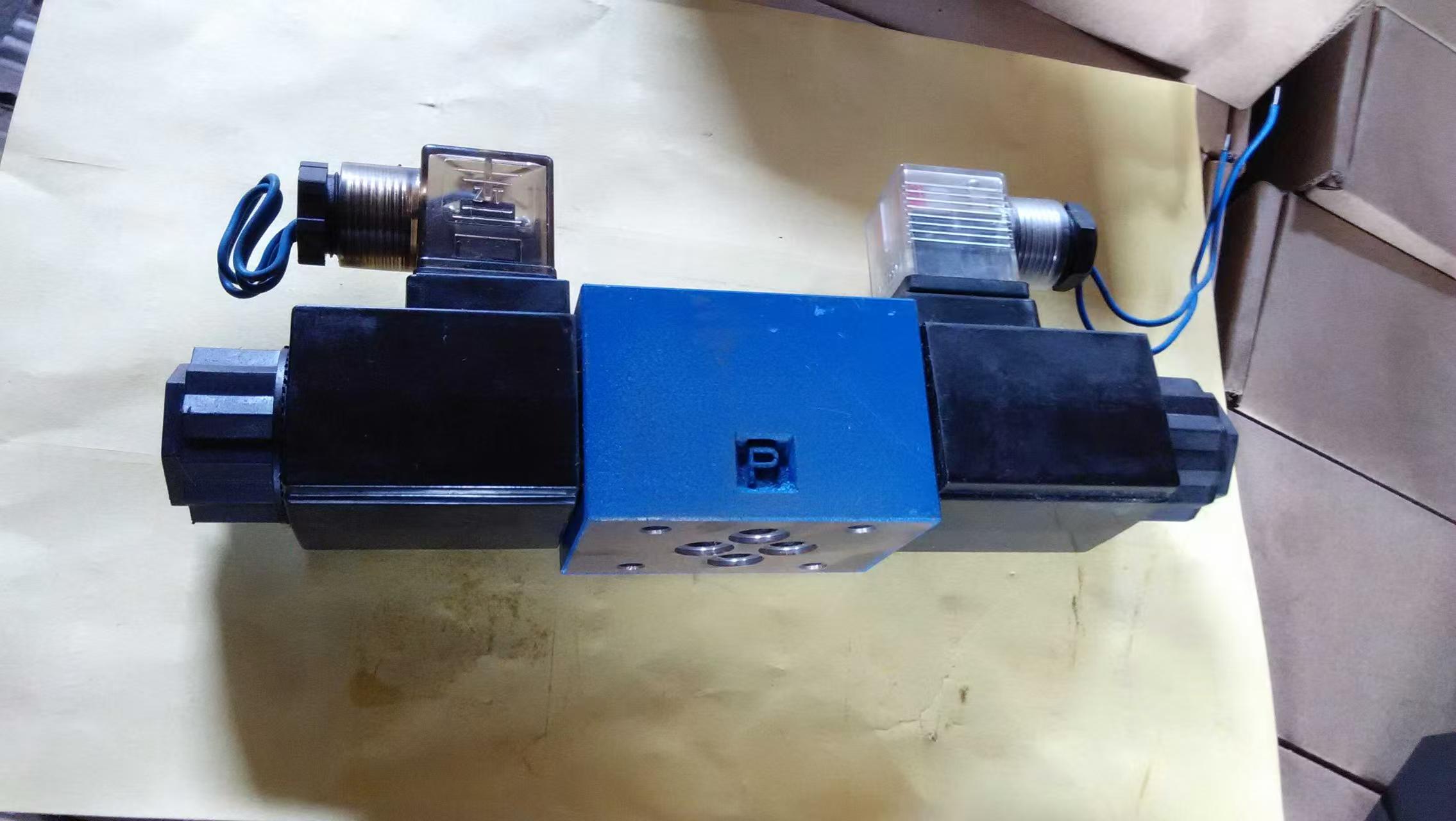

Solenoid Directional Control Valve

4 week ago
0 0
Product details
1. Definition and Function

  • Definition: A valve that uses an electromagnet to generate magnetic force when energized/de-energized, driving a spool or poppet to slide within the valve body and alter fluid flow direction.

  • Core Functions:

      • Controls the flow direction of hydraulic oil or compressed air (e.g., Port A → Port B, or Port A → Tank T for pressure relief).

      • Enables start/stop, direction reversal, or pressure holding of actuators (e.g., hydraulic/pneumatic cylinders).

2. Structural Components

  • Electromagnet Section:

      • Coil (Solenoid Coil): Generates a magnetic field when powered.

      • Armature: Attracted by the magnetic field to move the valve core.

  • Valve Body Section:

      • Spool/Poppet: Slides or moves inside the valve body to control oil passage connections.

      • Valve Body: Contains multiple internal channels and ports (e.g., P, A, B, T).

  • Return Spring: Pushes the spool back to its original position when de-energized.

3. Working Principle

  1. Energized State:

      • The solenoid coil is powered, creating a magnetic field that attracts the armature.

      • The armature moves the spool, altering oil passage connections (e.g., P → A, B → T).

  2. De-energized State:

      • The magnetic field disappears, and the return spring pushes the spool back to its initial position, restoring default oil paths (e.g., P → B, A → T).

  3. Dual-Solenoid Design:

      • Some valves feature solenoids on both sides for bidirectional control (e.g., left solenoid energized: P → A; right solenoid energized: P → B).

4. Classification and Types

  • By Control Method:

      • Direct-Acting: The solenoid directly drives the spool, suitable for low-flow, low-pressure systems.

      • Pilot-Operated: Uses pilot pressure to control the main spool, ideal for high-flow, high-pressure applications.

  • By Spool Structure:

      • Spool Valve: Cylindrical spool slides axially to change oil paths.

      • Poppet Valve: Conical spool provides better sealing for high-pressure use.

  • By Positions and Ports:

      • 2/2 (Two-Position, Two-Port): Two positions, two ports (e.g., normally closed/open).

      • 2/3 (Two-Position, Three-Port): Two positions, three ports (e.g., P, A, T).

      • 3/4 (Three-Position, Four-Port): Three positions, four ports (e.g., neutral holding, direction reversal).

      • 3/5 (Three-Position, Five-Port): Common in pneumatic systems for dual-pressure control.

5. Performance Parameters

  • Rated Pressure: Maximum working pressure the valve can withstand (e.g., 35 MPa).

  • Flow Range: Maximum allowable flow rate (e.g., 60 L/min).

  • Response Time: Time from energization to full spool movement (typically milliseconds to tens of milliseconds).

  • Voltage Specifications: Solenoid operating voltage (e.g., DC12V, DC24V, AC220V).

  • Sealing Type: Spool-to-body sealing method (e.g., metal-to-metal, soft seal).

6. Application Scenarios

  • Hydraulic Systems:

      • Directional control of hydraulic cylinders in excavators and cranes.

      • Mold opening/closing in injection molding and die-casting machines.

      • Hydraulic power transmission in industrial automation.

  • Pneumatic Systems:

      • Cylinder extension/retraction in automated production lines.

      • Vacuum suction cup gripping/releasing.

      • Air compressor pressure regulation.

7. Selection Considerations

  • Flow/Pressure Matching: Ensure rated flow and pressure ≥ system requirements.

  • Response Speed: High-frequency switching demands fast-response models.

  • Environmental Adaptability:

      • Explosion-proof solenoids for hazardous environments.

      • Stainless steel for moist/corrosive conditions.

  • Mounting Style: Plate-mounted, pipe-mounted, or flange-mounted options.

8. Common Issues and Maintenance

  • Faults:

      • Solenoid fails to engage (coil burnout, voltage issues).

      • Spool jamming (oil contamination, spring failure).

      • Internal leakage (worn seals).

  • Maintenance Tips:

      • Regularly replace hydraulic oil to maintain cleanliness.

      • Check solenoid wiring for loose connections.

      • Avoid prolonged partial spool movement (accelerates wear).

9. Typical Symbol Representation

In hydraulic schematics, solenoid valves are represented by squares for positions and arrows for flow paths. Examples:

  • 2/3 Valve: □→□ (two squares, three ports).

  • 3/4 Valve: □□□→□ (three squares, four ports; neutral function marked with symbols like O-type or H-type).

10. Development Trends

  • Smart Integration: Embedded sensors and electronic control units (ECUs) for closed-loop control.

  • Energy Efficiency: Low-power solenoids and optimized spool designs.

  • Modularization: Integration with proportional/servo valves for enhanced precision.
