VOITH IPV 6-100 101 GEAR PUMP

4 week ago

0 0 

3 year

Product details

1. Product Overview

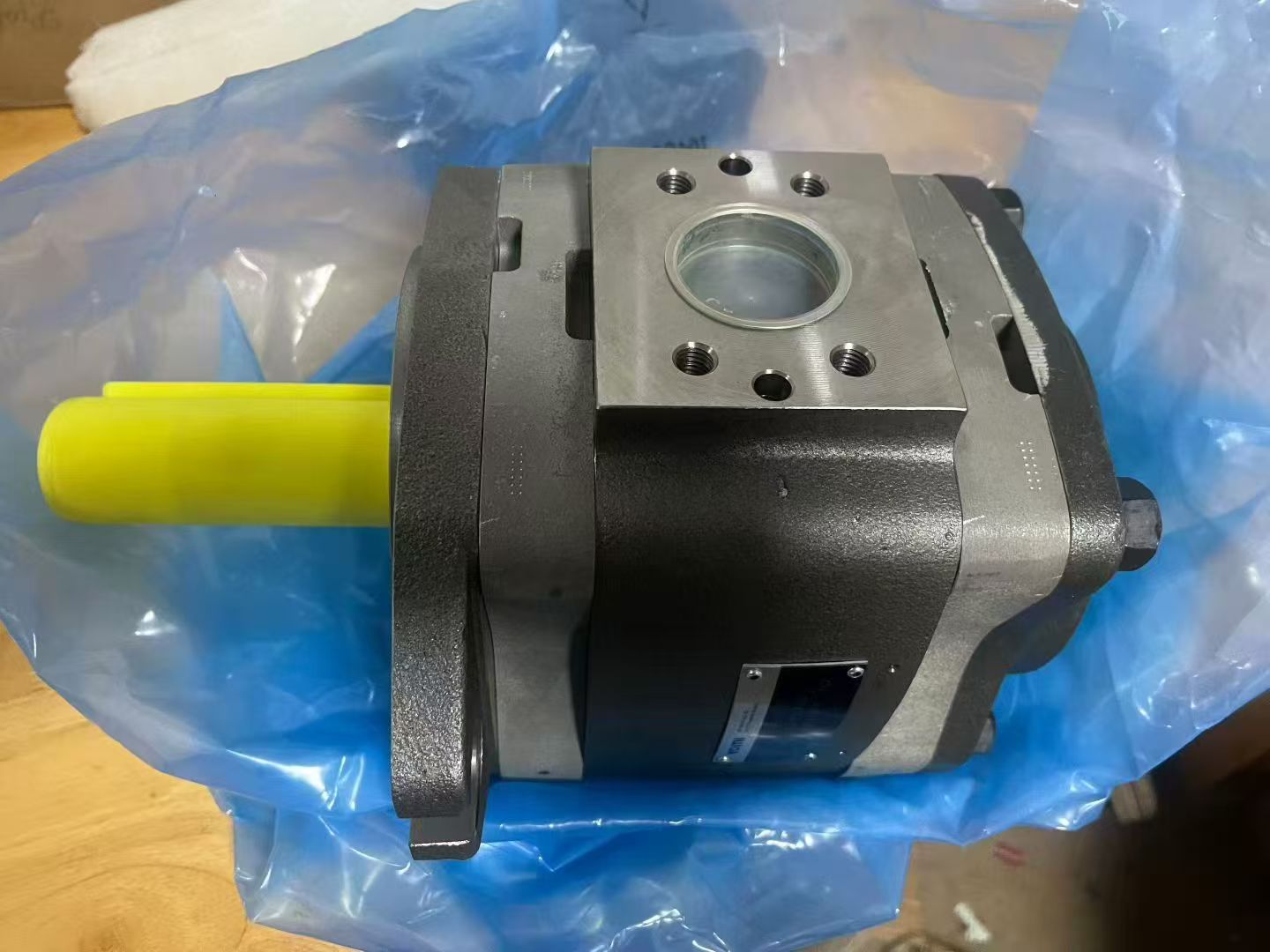

TheVOITH IPV 6-100 101is a high-performance internal gear pump manufactured byVOITH, designed specifically for industrial hydraulic systems. It features a compact structure combined with precision gear meshing technology, making it suitable for medium-to-high-pressure hydraulic applications. Key advantages include low noise, high volumetric efficiency, and extended service life.

2. Core Specifications

【表格】

Parameter Specification

Model IPV 6-100 101

Pump Type Internal Gear Pump

Displacement 6 cm³/rev (per revolution)

Rated Pressure 250 bar (maximum operating pressure)

Peak Pressure 280 bar (short-term allowable pressure)

Speed Range 500–3,000 rpm (recommended operating speed)

Fluid Compatibility Mineral hydraulic oils, synthetic hydraulic oils (viscosity 10–400 cSt)

Temperature Range –20°C to +80°C (operating temperature)

Port Type SAE flange or threaded connections (optional)

Weight Approx. 3.2 kg (excluding drive shaft)

3. Technical Features

• Internal Gear Design:

• Utilizesinternal-external gear meshingto reduce pulsation and ensure smoother operation.

• Precision-ground gears achieve volumetric efficiency ≥92% with minimal leakage.

• High-Pressure Adaptability:

• Reinforced bearing design supports continuous operation at 250 bar, ideal for construction machinery and injection molding machines.

• Low-Noise Operation:

• Optimized gear tooth profiles and pump body flow paths reduce noise to ≤70 dB(A) (at 1m distance).

• Compact Structure:

• Short axial length enables integration into space-constrained hydraulic systems (e.g., mobile equipment, machine tools).

• Durable Materials:

• Pump body: High-strength cast iron (GG25). Gears: Carburized steel (20CrMnTi) with surface hardness HRC 58–62.

4. Applications

• Construction Machinery:

• Hydraulic steering systems and auxiliary circuits in excavators and loaders.

• Industrial Equipment:

• Hydraulic power units for injection molding and die-casting machines.

• Agricultural Machinery:

• Hydraulic suspension systems in tractors and combine harvesters.

• Marine & Offshore:

• Hydraulic supply for deck machinery and steering gears.

• Automation:

• Precision hydraulic drives for robots and CNC machine tools.

5. Performance Advantages

• High Efficiency:

• Volumetric efficiency up to 94% and mechanical efficiency 90% at 2,000 rpm.

• Long Service Life:

• Bearing life ≥10,000 hours (continuous operation), gear life ≥20,000 hours.

• Contamination Resistance:

• Tolerates oil cleanliness levels of NAS 6 (ISO 18/15), suitable for harsh environments.

• Easy Maintenance:

• Modular design allows quick replacement of seals and bearings, minimizing downtime.
