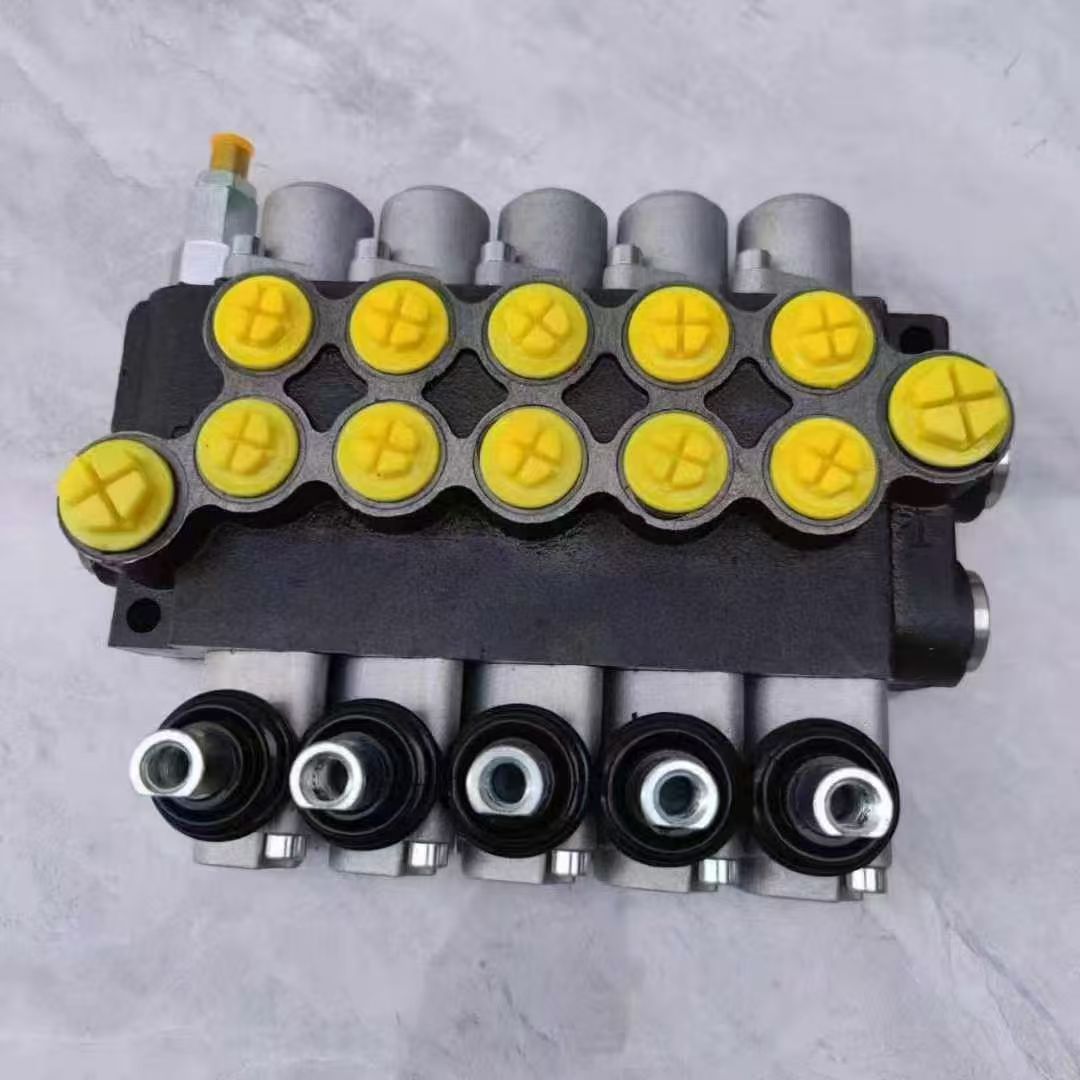

Hydraulic Directional Control Valve Hydraulic Multi-Way Valve

4 week ago

0 0 

3 year

Product details

I. Definition and Core Functions

Hydraulic Directional Control Valve (Multi-Way Valve)

A critical component in hydraulic systems used to control oil flow direction and switch operational states of actuators (e.g., cylinders, motors). Its core functions include:

1. Flow Direction Control: Alters oil pathways via spool displacement to enable oil inflow, outflow, or cutoff.

2. Multi-Port Switching: Integrates multiple oil interfaces (e.g., P-port for inlet, A/B-ports for working lines, T-port for return) to simultaneously control multiple actuators.

3. Pressure/Flow Regulation(in some models): Achieves flow distribution and pressure control via built-in orifices or pressure-compensating valves.

------

II. Structure and Working Principle

1. Typical Structure

• Valve Body: Cast iron or aluminum alloy housing with machined oil channels and spool bores.

• Spool: Steel cylindrical component with annular grooves for oil path switching via axial movement.

• Actuation Mechanism:

• Manual: Lever or knob-driven spool movement.

• Hydraulic Pilot: Spool actuated by pilot oil pressure (e.g., controlled by solenoid valves).

• Electro-Hydraulic: Proportional solenoids or servo valves for precise spool positioning.

• Return Spring: Provides spool reset force to neutral position.

2. Working Principle

Example: Three-position four-way valve

• Neutral Position: P-port blocked from A/B-ports; T-port returns oil to tank (varies by neutral function type, e.g., O-type, M-type, Y-type).

• Directional Shifting: Spool displacement connects P-port to A or B-port, enabling actuator extension/retraction.

------

III. Classification and Characteristics

1. By Port Configuration

【表格】

Type Port Count Typical Applications

Two-position two-way 2 (P/T) Simple on/off control (e.g., clamping)

Three-position four-way 4 (P/A/B/T) Bidirectional actuator control (e.g., cylinder motion)

Multi-position multi-way ≥5 ports Complex systems (e.g., multi-action linkage in construction machinery)

2. By Actuation Method

• Manual Valves: Low-cost, suitable for fixed operations (e.g., agricultural machinery).

• Solenoid Valves: Fast response, ideal for automation (e.g., injection molding machines).

• Proportional Valves: Continuous flow/pressure adjustment for precision control (e.g., CNC machines).

• Servo Valves: High-precision dynamic response for aerospace and advanced applications.

3. Neutral Function Comparison

【表格】

Neutral Type P-Port State A/B-Port State T-Port State Applications

O-Type Blocked Blocked Blocked Locks actuators to prevent drift

M-Type Blocked Blocked Return to tank Reduces system pressure for energy savings

Y-Type Blocked Return to tank Return to tank Prevents high-speed free-fall under no-load

H-Type Return to tank Return to tank Return to tank Full system unloading for rapid stop

------

IV. Key Performance Parameters

1. Rated Pressure: Typically 200–350 bar (up to 420 bar for high-pressure models).

2. Maximum Flow: Ranges from a few L/min to over 1,000 L/min (e.g., large excavator valves).

3. Internal Leakage: High-quality valves exhibit ≤0.1 L/min leakage at 100 bar differential pressure.

4. Response Time: Solenoid valves ≤50 ms; proportional valves ≤100 ms.

5. Lifespan: Premium spools exceed 1 million cycles.
