braided electrical sleeving
3 year ago
For the Braided sleeve, Nomex Braided Sleeve is made of Nomex, aramid, Kevlar and other special fibers. This kind of Special material braided sleeve has the advantages of high temperature resistance, fire resistance and flame retardancy, light weight, high strength, high modulus, stable size, low shrinkage, puncture resistance, wear resistance, heat resistance, chemical corrosion resistance, good mechanical performance, and good dielectric performance. In the multi branch cable assembly, the end of the optical fiber casing is also very easy to handle. Sewing and binding can be used to ensure that the forks are soft and easy to bend, and the harness can be well protected in a narrow space.
Technique Data-Sheet
Material:
Nomex,Aramid, Kevlar and other special fibers
Working Temperature:
-50℃---600℃
Certificates:
RoHS、REACH
Standard Colors:
Black,White,Grey,Yellow and so on.
Cutting Tool:
Scissor
Application:
The product is suitable for industry. It can be used as tire cord, high-strength rope, rigging, pressure container, etc. It can be made in military, such as bulletproof vests, helmets, armor plates, etc. Aramid fiber can be used in aircraft fuselage, interior decoration materials in wing and rocket engine shell. It can also be used to make sports equipment, ice hockey clubs, tennis rackets, skis, rowing, racing cars, etc.

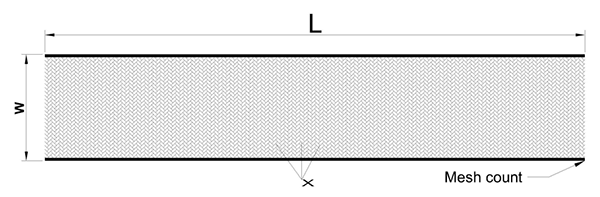

Product Drawing
Size specification
Model No.
Natural Width（W）
Packing（L）
Inch
mm
NBS-002
1/16″
2
1000m/roll
NBS-003
1/8″
3
1000m/roll
NBS-005
3/16″
5
1000m/roll
NBS-006
1/4″
6
500m/roll
NBS-008
5/16″
8
500m/roll
NBS-010
3/8″
10
500m/roll
NBS-012
1/2″
12
350m/roll
NBS-014
9/16″
14
350m/roll
NBS-016
5/8″
16
350m/roll
NBS-019
3/4″
19
250m/roll
NBS-022
7/8″
22
250m/roll
NBS-025
1″
25
100m/roll
NBS-030
19/16″
30
100m/roll
NBS-035
11/8″
35
100m/roll
NBS-040
25/16″
40
100m/roll
NBS-050
2″
50
100m/roll
NBS-060
19/8″
60
50m/roll
NBS-070
11/4″
70
50m/roll
NBS-080
25/8″
80
50m/roll
NBS-090
7/2″
90
50m/roll
NBS-100
31/8″
100
50m/roll
Unit: mm
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
