Optical Windows are flat, plane-parallel, transparent optical surfaces designed to protect sensors and other electronic instruments from environmental conditions. Optical Window selection considerations include material transmission properties as well as scattering, strength, and resistance to certain environments. Their use should not impact the magnification of a system. Optical Windows can be optically polished and incorporate an element for diffusing light sources to control illumination.

AR coatings can be applied to ensure maximum transmission performance for a particular wavelength. The windows are made in a range of materials including UV Fused Silica, Quartz, IR Crystals, and optical glasses. Our optical window properties include x-ray protection, non-browning to UV light, and light transmission from deep ultra violet to far-infrared.

Optical window can be a protection of original when it's in two physical environments. And there is almost no effect on visible light, to coating on the surface of windows could increase the transmittance, the commonly used coatings are antireflection coating (AR) and scratch-resistant coating (AS). Optical glass flat with coating can enhance the light penetration strength, and own function of waterproof, dustproof, and scratch-proof.

Optical windows are typically fabricated from two flat, or commonly referred to as plano, polished surfaces that are optically transparent and intended to separate, seal, or otherwise protect other components. The double-sided manufacturing process yields exceptional parallelism and transmitted wavefront making it ideal for visible windows in industrial and biomedical applications, as well as IR windows in infrared and defense applications.

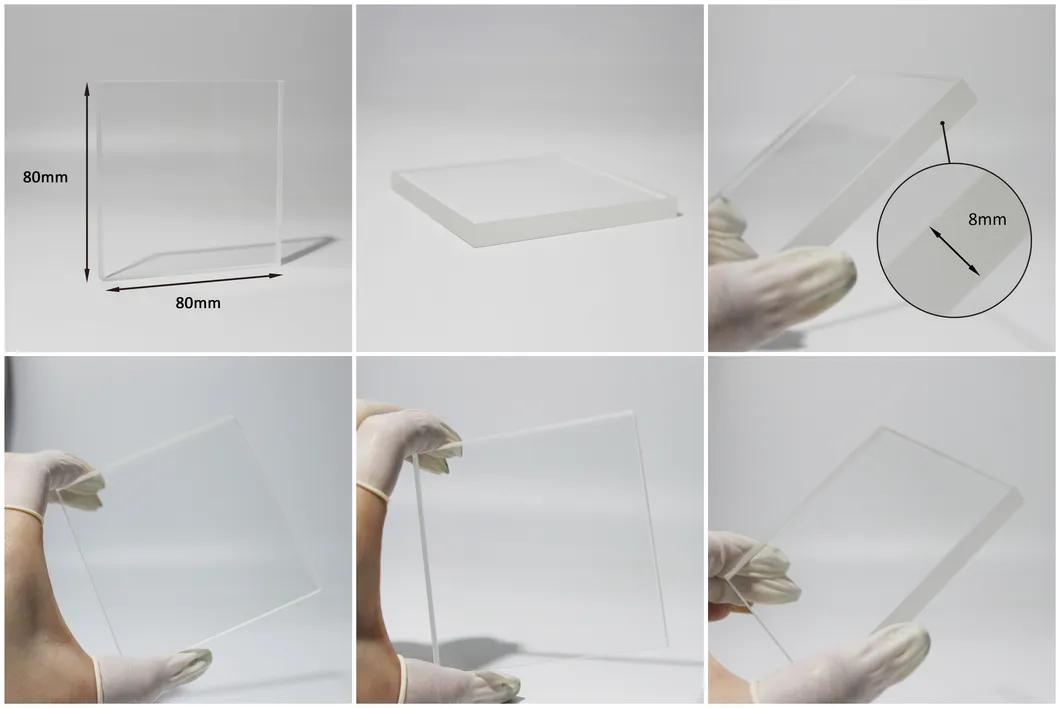

Normal specification of windows as follow:

• Material: BK7 or other materials, follow use requirement
• Length tolerance: +/-0.01
• Width tolerance: +/-0.01
• Center thickness tolerance: 0.005mm
• Surface quality: 80-50 to 10-5 Scratch/Dig
• Surface flatness:
• Parallelism<=1min -- 2sec
• Clear Aperture: 80% -- 100%

>> Company Introduction

>> Related Products

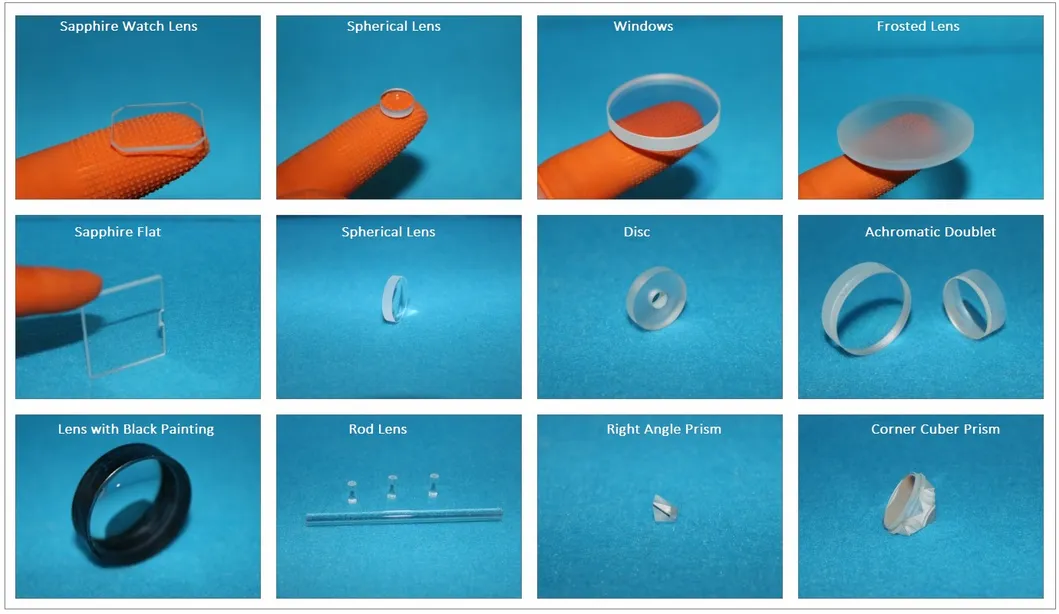

VY Optics could also manufacture and design other optical elements, including achromatic lens, dome lens, filter, prism, ball lens, cylindrical lens, optical mirrors, spherical lens and rod lens, we can fabricate high-precision lens as per your requested.

>> FAQ

Q: Do you provide samples? Is it free or charged?

· We'd like to supply samples for free if we have it in stock, but we don't pay freight.

Q: How long is your delivery time?

· Regarding inventory, it is 3 working days;

· For customized one, it's about 15-25 working days, depended on exact quantity and order date.

Q: Is it possible to customize special lens?

· Yes, to customize special optical element and coating are available here.

Q: How to pay?

· T/T, MoneyGram, West Union, Paypal and so on.

Q: How to ensure the safety of payment?

· VY Optics is a reliable supplier on Made-in-China, reputation and quality is life of our company.

Q: How do you ship goods?

· Low value sample: EUB, E Express of China Post, which is cheap;

· Light weight parcel: DHL, FedEx, TNT, UPS, EMS, SF Express, China Post;

· Heavy cargo: by air or by sea, ship on pallet.

Our company enjoy a considerable discount owing to long-term cooperation with courier company.
