Optical Glass Fused Silica Non-Polarizing Cube Beamsplitter1

Basic Info.

• Shape: Long Prism
• Material: Glass
• Application: Medical Instrument
• Customized: Customized
• Color: Transparent
• Polished: Yes
• Dimension (mm): 5*5*5, 10*10*10, 12.7*12.7*12.7, 15*15*15
• Diameter Tolerance: +/-0.05 mm
• Thickness Tolerance: +/-0.05mm
• Surface Quality: 60/40, 40/20 or Better
• Centring Error: <3 Arc Minute
• Clear Aperture: 90% of Entry Facing
• Transport Package: Safety Green Carton
• Origin: Changchun
• HS Code: 9001909090
• Production Capacity: 40000/Year

Packaging & Delivery

• Package Size: 20.00cm * 20.00cm * 20.00cm
• Package Gross Weight: 1.000kg

Product Description

Yutai Optics offers polarizing cube beamsplitters for the Visible (400-700nm), NIR (700-1100nm), and Telecom (1100-1620nm) wavelength ranges. These broadband non-polarizing cube beamsplitters feature low polarization dependence, with the split ratio for both S- and P-polarized incident light remaining within 6% of each other, thanks to an advanced metallic/dielectric hybrid coating.

Designed for precision, each beamsplitter consists of a pair of high-tolerance right-angle prisms cemented together, with a specialized coating on the hypotenuse to achieve optimal performance. The antireflection coating applied to all outer surfaces ensures maximum transmission efficiency across the specified wavelength ranges. The spectral flatness of these beamsplitters minimizes any effects caused by varying angles of incidence or the use of converging or diverging beams, making them ideal for a variety of laser applications.

Specification

• Material: Schott, Ohara, CDGM Optical Glass, Corning fused silica, JGS1, JGS2
• Dimension Tolerance: +/- 0.2mm
• Flatness: l/4 @ 632.8 nm
• Surface Quality: 60/40 scratch and dig
• T/R: 50/50+/- 5% (T=(Ts+Tp)/2, R=(Rs+Rp)/2)
• Beam Deviation: <3 arc minutes
• Coatings: Broadband partial reflectance: on hypotenuse face
• BBAR-coatings: on all input and output face

It is also available to supply the coating wavelength curve, such as AR coating, BBR coating, filter coating and so on.

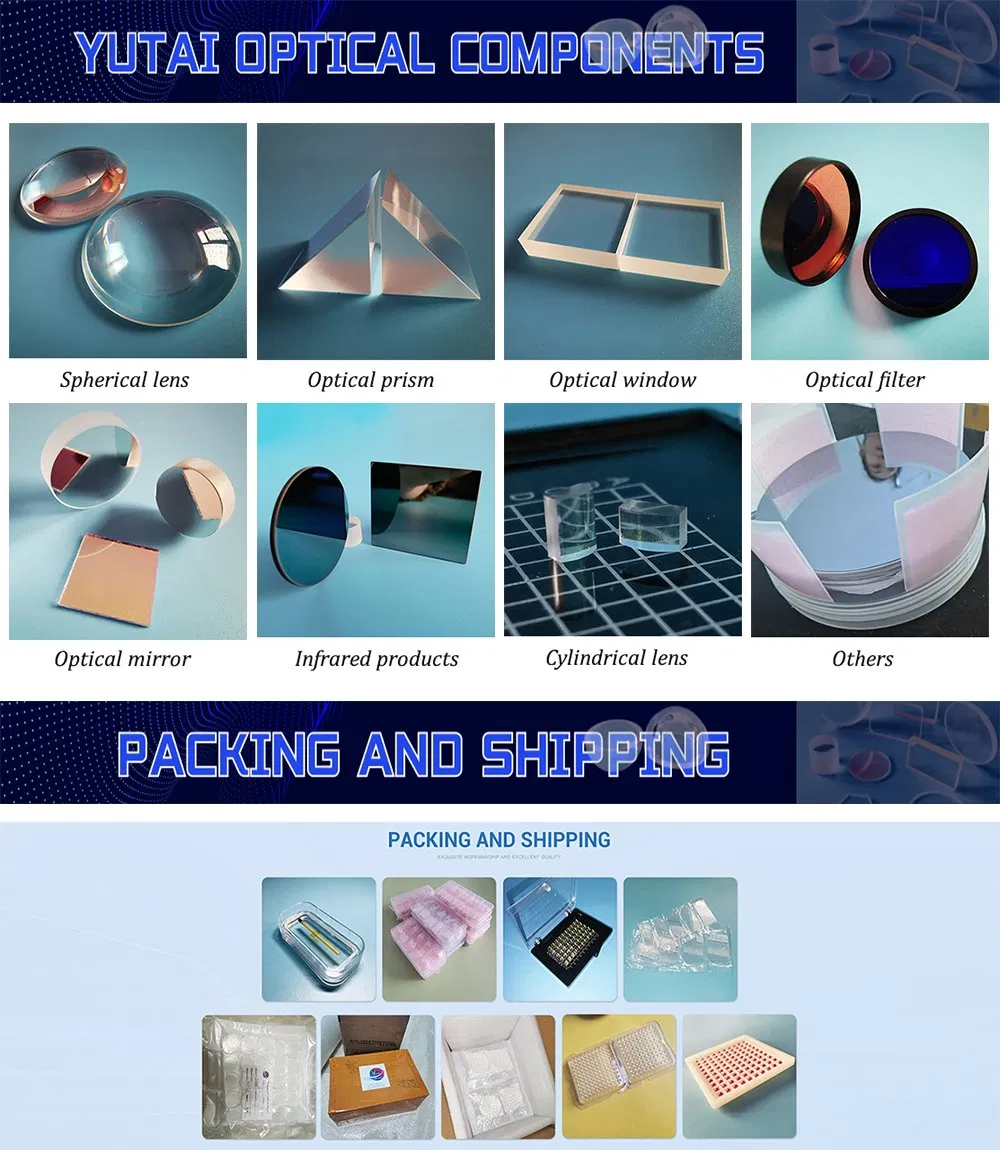

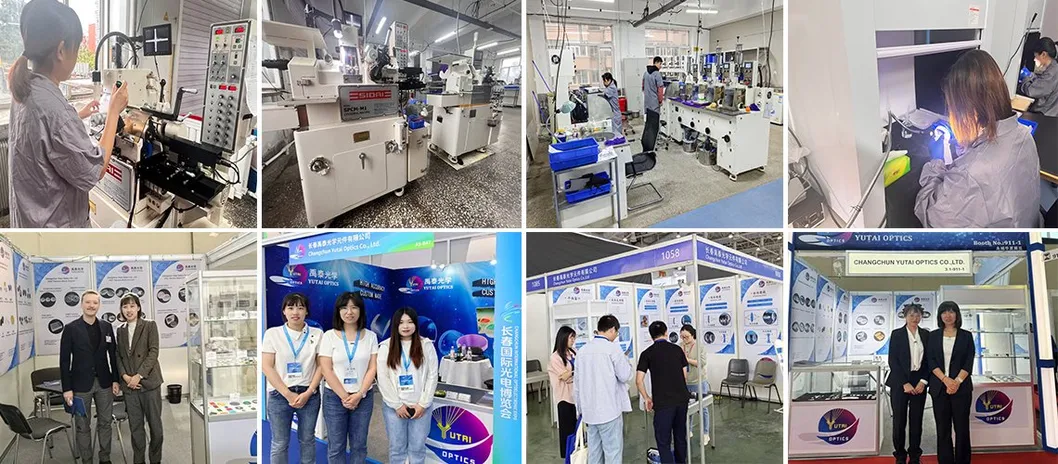

Changchun Yutai Optics Co.,Ltd. is a manufacturer with ISO9001 certification. We are specialized in high-performance optical components include lens, mirrors, filters, windows and prisms which are specified by customers. Yutai's items are widely used in imaging, defense, medical, laser and industry market. As a fast-growing supplier in Optics, Yutai Optics has quickly established itself as a leader in optical components with advanced technology and quality control ability as Yutai aims to provide professional service and good quality items to meet customers' request. Yutai already established long-term relation with many powerful companies all over the world.

Frequently Asked Questions

• Q: What are your main products?
  A: Optical lens, mirrors, windows, filters, prisms
• Q: How long is your delivery time?
  A: In general delivery time is about one month for custom produced optics. Except stock ones or some special optics.
• Q: Do you provide samples? Is it free or extra?
  A: We can provide free samples if we have stock optics as your request, while custom produced samples are not free.
• Q: What is your MOQ?
  A: MOQ is 10pcs for most of the optics, while MOQ could be only one piece if you need a element in big dimension.
• Q: What is your terms of payment?
  A: T/T, L/C, VISA, Paypal, Alipay or Negotiation.
