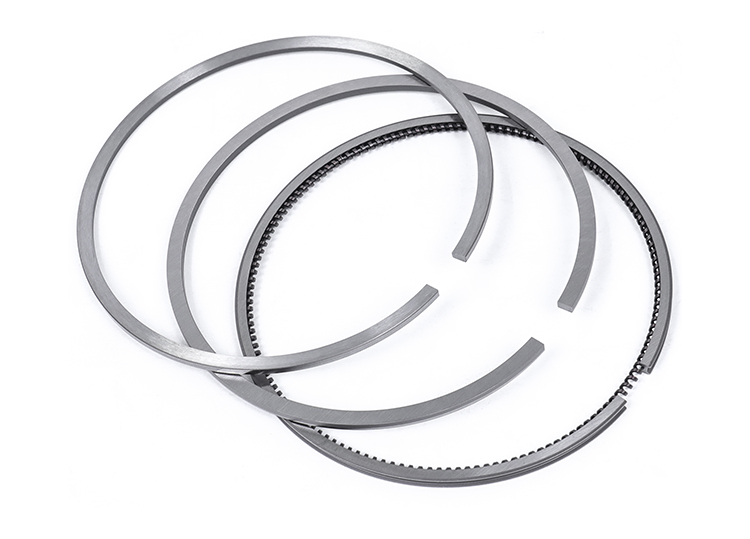

The piston ring is a metal sealing ring with certain elasticity, which is assembled in the piston ring groove and seals the cylinder together with the piston.
The piston ring is affected by the high temperature and high pressure gas in the cylinder when working, and the high-speed movement in the cylinder under difficult conditions of lubrication, especially the temperature of the first ring can be as high as 600K, therefore, the piston ring is one of the parts with the worst working environment and the shortest service life in the engine. In order to extend the service life of the piston ring and ensure its reliable work, the material used for manufacturing the piston ring should have good wear resistance, heat resistance and thermal conductivity, while having sufficient strength, elasticity and impact toughness.
|
|
|
|
|
|
|
|
|
|
|
|
The working surface of the piston ring shall not have nicks, scratches, peeling, the outer cylinder and the upper and lower end surfaces shall have a fixed finish, the curvature deviation shall not be greater than 0.02-0.04 mm, the standard subsidence of the ring in the groove shall not exceed 0.15-0.25 mm, and the elasticity and clearance of the piston ring meet the requirements. In addition, we should also check the light leakage of the piston ring, that is, the piston ring is flat in the cylinder, put a small lamp under the piston ring, put a light screen above, and then observe the light leakage gap between the piston ring and the cylinder wall, which shows whether the contact between the piston ring and the cylinder wall is good. Under normal circumstances, the light leak seam of the piston ring measured with a thickness gauge should not exceed 0.03 mm. The length of continuous light leakage seam should not be greater than 1/3 of the cylinder diameter, the length of a number of light leakage gaps should not be greater than 1/3 of the cylinder diameter, and the total length of a number of light leakage should not exceed 1/2 of the cylinder diameter, otherwise, it should be replaced.
1D Auto Parts Co; Ltd is a professional agent of imported brands of auto parts company, founded in 1992, the company has many years of senior auto parts experience team, we focus on Piston,Piston Ring,Cylinder Liner,Spark Plug,Glow Plug,Ignition Plug，Engine Valve,Sealant .
WHY TO CHOOSE US:
1. China Top 3 Piston/liner/piston ring manufacturer(Toyota, Mitsubishi, Isuzu OEM supplier-original quality guarantee).
2. Strong R&D ability: More than 5000 engine models, all size.
3. Logistic Stock: Factory warehouse logistic centre-quick respond and sufficient stock, No MOQ requirement.
4. Facilities Technology: Japan/German imported machine, high qualified technician, ISO-2009 Certificate, QC tested and approved. Original or high standard material.
5. Customer Service: We promise to accomplish our customers with every little help, do the best we can to satisfy every upmost clients.
MARKETPLACE: Mainland China，Middle EastAfrican countries，Southeast Asia，South Americaand Europe. (Main exporting Countries: DubaiOman， Jordan，Yemen，Egypt, Morocco，NigeriaUganda，Congo，Tanzania，Kenya，Ghana，Sudan.South Africa， Mozambique， Madagascar, BrazilRussia,Mongolia. Sri Lanka, Pakistan,Bangladesh,Vietnam,Burma,Nepal)
1D Auto Co;Ltd integrate international top brands, high standard positioning, strictly quality control and formal purchasing channel to ensure genuine products.We have over 20 years of experience in OEM production, lmport-Export, quality control and market orientated R&D . We are able to meet your need of high quality, sufficiency stock, variety of model sand size, as well as product packing & brand design, with the aim of establishing a very competitive advantage for businesses.We are proud of maintaining a very good reputation and customer relationship.People-oriented is to create an excellence service and achievements. Popular Marketplace for example: Dubai，Oman，Jordan，Yemen.Egypt，Morocco,Nigeria, Uganda, Congo, Tanzania, Kenya,Ghana.Sudan，South Africa, Mozambique， Madagascar,Brazil，Russia Mongolia. Sri Lanka, Pakistan, Bangladesh, Vietnam, Burma, Nepal.
