Huayan Injection Molding Machine Servo Motor Fan
（华研注塑机伺服电机风扇）
1. Core Functions and Purpose
This fan is specifically designed for the servo motors of Huayan injection molding machines, primarily serving todissipate heatand maintain stable operating temperatures during prolonged high-load operations. Its turbine-type centrifugal blower design ensures efficient airflow, rapidly expelling internal heat from the motor to prevent performance degradation or failures caused by overheating, thereby extending equipment lifespan.
2. Technical Specifications

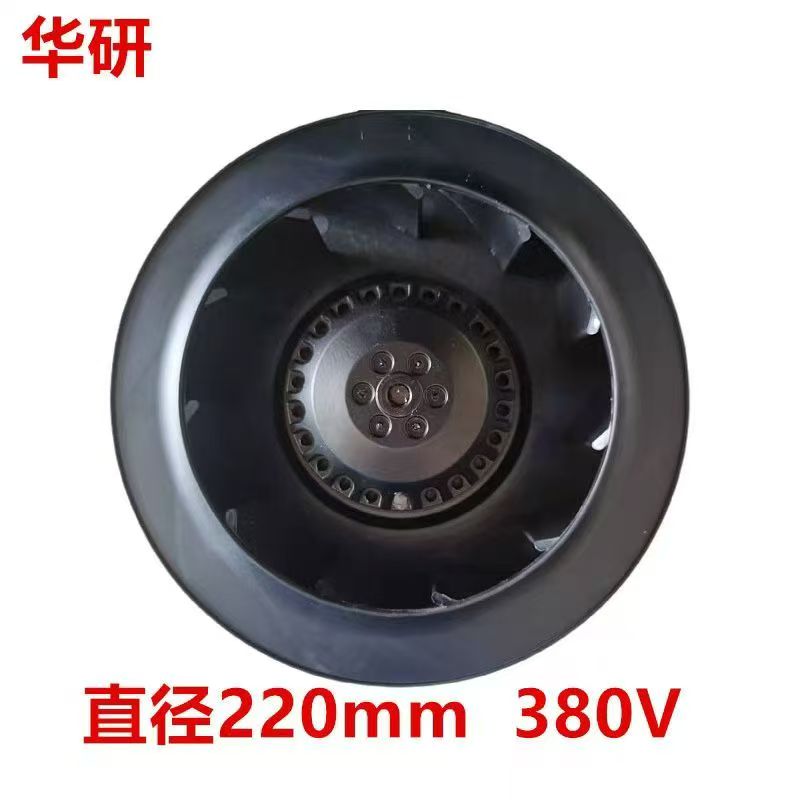

• Diameter Options: 175mm / 220mm
• Compatible with servo motors of varying sizes to meet diverse cooling requirements.
• Blower Type: Turbine-Type Centrifugal Blower
• Combines high-pressure airflow (turbine design) with stable exhaust (centrifugal design) for optimized heat dissipation.
• Exhaust Method: Exhaust Fan
• Forcibly expels hot air to establish effective airflow circulation.
3. Design Features
• High-Efficiency Cooling: Turbine-centrifugal structure generates high-pressure airflow for rapid heat removal.
• Low-Noise Operation: Optimized blade design and balanced components minimize vibration and noise.
• Durability: Constructed with high-temperature-resistant materials for reliability in harsh injection molding environments.
• Easy Installation: Standardized dimensions facilitate quick replacement or upgrades.
4. Applications
• Huayan Injection Molding Machine Servo Systems: Directly integrated for motor cooling to ensure stable performance.
• Other Industrial Equipment: Suitable for servo motors, frequency converters, and similar applications requiring efficient heat dissipation.
5. Selection Guidelines
• Diameter Selection Based on Motor Power:
• 175mm: Recommended for small-to-medium-power servo motors (e.g., ≤7.5kW).
• 220mm: Recommended for high-power servo motors (e.g., >7.5kW).
• Environmental Adaptability:
• For high-temperature or poorly ventilated environments, the 220mm model is preferred for enhanced cooling.
6. Maintenance and Care
• Regular Cleaning: Remove dust from fan blades and exhaust vents to prevent airflow obstruction.
• Operational Monitoring: Use speed sensors or alarms to track fan performance; replace immediately if abnormalities occur.
• Avoid Overloading: Ensure motor loads stay within rated capacity to reduce fan strain.
7. Comparative Advantages
【表格】
Feature Huayan Servo Motor Fan Standard Axial Fan
Cooling Efficiency Turbine-centrifugal design for high-pressure airflow Axial design with dispersed airflow
Noise Level Low-noise operation Higher noise output
Durability High-temperature-resistant materials for longevity Standard materials prone to aging
Compatibility Tailored for servo motors Versatile but less optimized
8. Summary
The Huayan Injection Molding Machine Servo Motor Fan delivers reliable and efficient cooling for servo motors through its turbine-centrifugal design and exhaust functionality. Available in 175mm/220mm diameter options, it adapts flexibly to motors of different power ratings while offering low noise, durability, and easy maintenance. This makes it an ideal cooling solution for servo systems in injection molding machines.
