Heat Shrink Tubing For LED Strips

2 month ago

5 0 

Dong Guan KE YU New Material Technology co.,LTD

9 year

Product details

Diffuser Film For LED Lights

Product Description:

Crafted from PET material, this diffuser film, also functioning as a heat shrinkable tubing, boasts exceptional high light transmittance, efficient heat dissipation, and excellent insulation properties, preventing potential hazards from broken glass.

Product Features:

It serves to evenly convert the point light source of LED fluorescent lamps into a surface light source, achieving a light homogenization effect.

The light homogenization principle relies on light passing through media with different refractive indices, causing the light to undergo numerous refractions, reflections, and scatterings, thus obtaining an optical diffusion effect.

The light transmittance can reach 85 - 93%, and the haze is 95 - 99%, which can be customized according to customer requirements.

Environmentally friendly: It complies with the EU RoHS directive requirements, and there is no pollution such as mercury and ultraviolet rays from traditional energy - saving lamps, making it energy - efficient and low - carbon.

Product Application:

Suitable for light diffusion and explosion - proof of LED glass T5 tubes (such as in the food industry, etc.), and the heat shrinkable tubing nature ensures easy application and reliable performance.

Shrinkage method:

Preparation for Cutting: Cut the light diffusing heat shrinkable tube according to the length of the glass tube, with an additional 5mm added to both ends.

Tube Cleaning:Put on clean gloves, and slide the cut heat shrinkable tube onto the glass tube that has been wiped with alcohol and dried.

Constant-Temperature Shrinkage: Place the assembly into a constant-temperature thermal cycle tunnel oven. Set the temperature to 75-85℃ and the time to 1-2 minutes, then start the shrinkage process.

Inspection and Re-shrinkage: After shrinkage, check whether the tube has shrunk completely. If not fully shrunk, re-shrink it for a second time. Note: Excessively high temperatures may cause the product to crystallize and develop dark spots.

Trimming and Inspection: After cooling, trim the edges with a utility knife. Confirm that there are no abnormalities in the appearance, and then the product can proceed to the assembly stage.

Product Specifications:

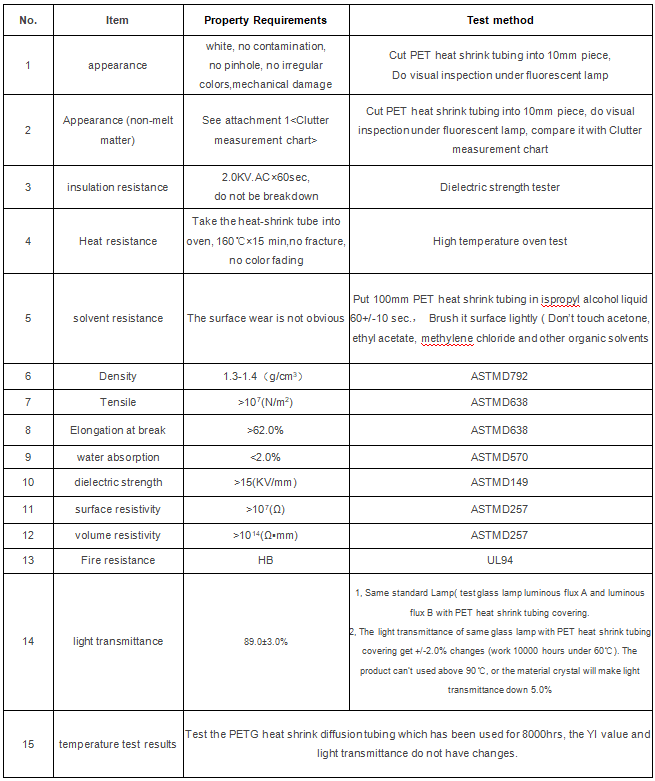

Technical Performance:
