10hp power frequency screw air compressor
4 month ago
Product details

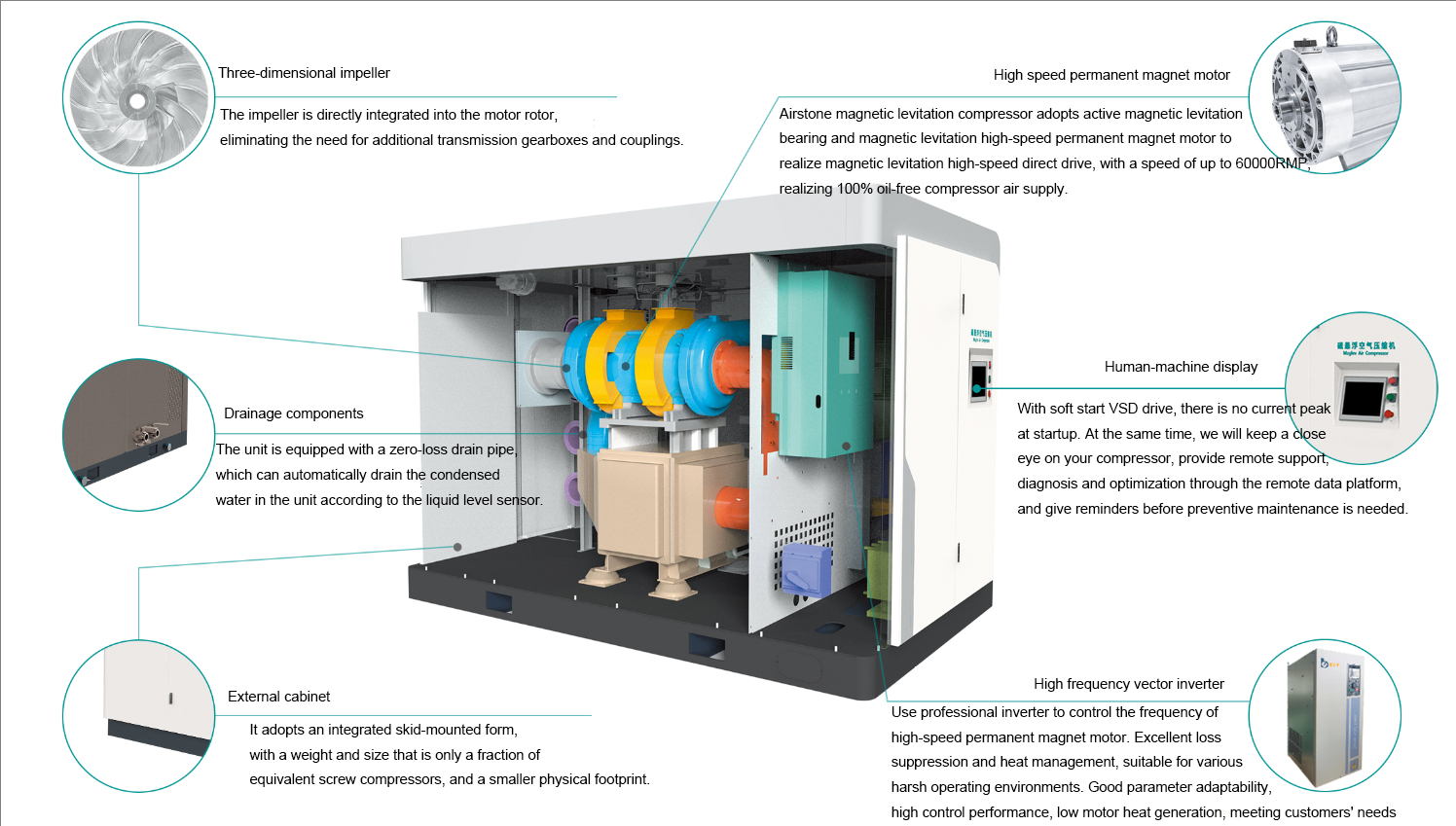

Magnetic levitation air compressor is an advanced compressed air equipment based on magnetic levitation bearing technology. Its core principle is to suspend the rotor in the magnetic field through an electromagnetic field, achieving non-contact operation (precise control by a numerical control system composed of rotor, sensor, controller, and actuator), completely eliminating traditional mechanical friction losses. Its core technologies include high-speed magnetic levitation motors (with a speed of up to 50000 revolutions per minute), five degree of freedom magnetic bearing systems, and intelligent control modules. Combined with oil-free design, it not only avoids lubricating oil pollution, but also significantly reduces energy consumption and maintenance costs. Compared to traditional air compressors, its mechanical transmission efficiency reaches 100%, energy efficiency is improved by 20% -30%, and it also has low vibration and noise.
The magnetic levitation air compressor, with its revolutionary magnetic levitation bearing technology, has achieved mechanical friction free operation (friction loss is only 2% of traditional bearings). Its core selling points can be summarized as: high efficiency and energy saving (compared to traditional air compressors, energy consumption is reduced by 30% -50%, and full DC frequency conversion supports 2% -100% stepless load regulation), extreme cleanliness (oil-free design to avoid lubricating oil pollution, compressed air purity reaches ISO 8573-1 Class 0 standard), ultra long service life (design life of 25-30 years, maintenance cost reduced by 30% and basically maintenance free), silent and environmentally friendly (operating noise ≤ 77dB, vibration accuracy 0.8 μ m), Especially suitable for industrial scenarios such as food and medicine, electronic semiconductors, data centers, etc. that require strict energy consumption, cleanliness, and stability. Typical applications include fermentation gas supply in pharmaceutical factories, clean workshops in chip manufacturing, etc. The investment payback period is usually 2-3 years.
1. Game-Changing Magnetic Levitation Technology: The Core Advantage
At the heart of this compressor lies advanced magnetic levitation bearing technology—a radical departure from traditional mechanical or roller bearings. Here’s how it transforms performance:
✅ Ultra-Low Energy Consumption (Up to 40% Savings)
Without friction-induced energy loss, the 2Bar maglev compressor achieves extraordinary efficiency. Its high-speed permanent magnet motor (up to 60,000 RPM) and optimized airend design cut energy consumption by 25-40% versus traditional screw or piston compressors for 2Bar applications. For businesses running compressors 24/7 (e.g., wastewater treatment, pneumatic conveying), this translates to thousands of dollars in annual electricity savings.
✅ Silent Operation (As Low As 55 dB(A))
Friction-free rotation drastically reduces noise and vibration. Operating at just 55-62 dB(A)—quieter than a home refrigerator—this compressor can be installed in noise-sensitive areas (e.g., food processing plants, indoor workshops) without additional soundproofing. Its compact, modular design also saves valuable floor space.
✅ Instant Start-Up & Stable Pressure Control
Maglev technology enables smooth, instant start-up (no heavy mechanical load) and precise pressure regulation. The built-in intelligent control system maintains 2Bar pressure with a fluctuation range of ±0.02Bar—critical for applications like membrane aeration in water treatment or consistent air supply for packaging machines.
2. Technical Specifications (Optimized for 2Bar Appli
