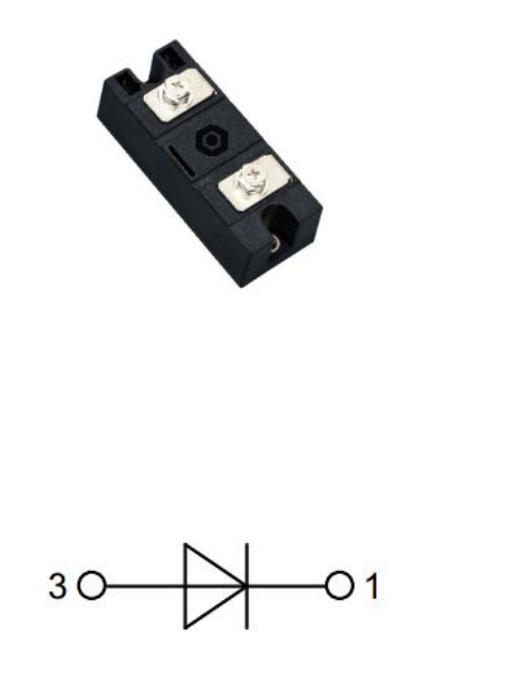

YZPST-MEO450-12DA

2 month ago

1 0 

YANGZHOU POSITIONING TECH CO., LTD.

8 year

Product details

P/N: YZPST-MEO450-12DA

PRODUCT FEATURES

Fast recovery epitaxial diode

Soft Recovery behaviour

Planar passivated chips

Short recovery time

Low Switching losses

High reliability circuit operation

Low voltage peaks for reduced protection circuits

Low noise switching

Low losses

APPLICATIONS

Anti-Parallel diode for high frequency switching devices

Free wheeling diode in converters And motor control circuits

Uninterruptible Power Supply (UPS)

Induction heating and melting

Ultrasonic cleaners and welders

ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified

Symbol	Parameter	Test Conditions	Values	Unit
VR	Maximum D.C. Reverse Voltage		1200	V
VRRM	Maximum Repetitive Reverse Voltage		1200	V
IF(AV)	Average Forward Current	TJ= 150°C	453	A
IF(RMS)	RMS Forward Current	TJ=75°C	640	A
IFSM	max Surge Forward Current	t = 10ms (50Hz),sine,TJ=45°C	4800	A
		t = 8.3ms (60Hz),sine,TJ=45°C	5280
		t = 10ms (50Hz),sine,TJ= 150°C	4320
		t = 8.3ms (60Hz),sine,TJ= 150°C	4750
I2t	I2t value for fusing	t = 10ms (50Hz),sine,TJ=45°C	115.2	2 kA s
		t = 8.3ms (60Hz),sine,TJ=45°C	117.1
		t = 10ms (50Hz),sine,TJ= 150°C	93.3
		t = 8.3ms (60Hz),sine,TJ= 150°C	94.8
VTO	Threshold voltage	TJ= 150°C	1.16	V
rT	Slope resistance	TJ= 150°C	1.15	m Ω
Ptot	Total power dissipation	TJ=25°C	1750	W
TJ	Junction Temperature		-40 to +150	°C
TSTG	Storage Temperature Range		-40 to +125	°C

Visol	Insulation Test Voltage	AC, t= 1min	2500	V

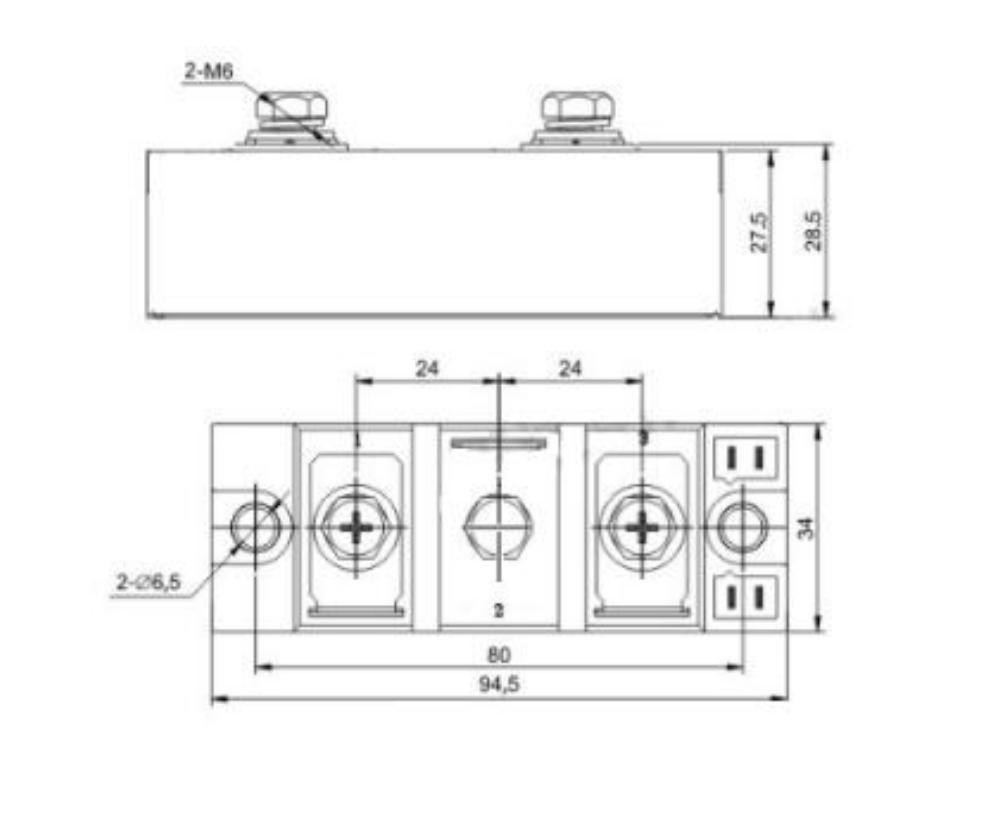

Torque	Module-to-Sink	Recommended（M6）	3～5	N·m
Torque	Module Electrodes	Recommended（M6）	3～5	N·m
RθJC	Thermal Resistance	Junction-to-Case	0.071	°C /W
