Product details

PTFE Heat Shrink Tubing

Product Description:

PTFE Heat Shrink Tube is made from imported polytetrafluoroethylene (commonly known as the "King of Plastics") resin via compression sintering, featuring insulation, flame retardancy, self-lubrication, high temperature resistance up to 260℃, corrosion resistance, resistance to nearly all oils and chemicals, high mechanical strength, and an extremely low friction coefficient.

Technical Parameters:

Shrink Ratio: 1.7:1, 4:1
Compliance: RoHS Standard, SAE-AMS-DTL-23053/12 Standard
Final Shrinkage Temperature: 350℃
Operating Temperature: -65℃ – 260℃
Standard Colors: Transparent, Blue; Other special colors available upon customization

Product Applications:

PTFE Heat Shrinkable Tubing is widely used in automotive, military, aerospace, electronics, computer and telecommunications industries, ideal for high-temperature wire harness protection, insulation at welds, corrosion prevention of hydraulic pipes and micro-transformer protection.

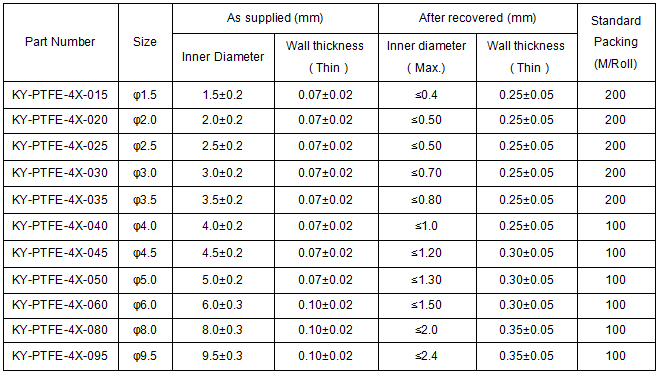

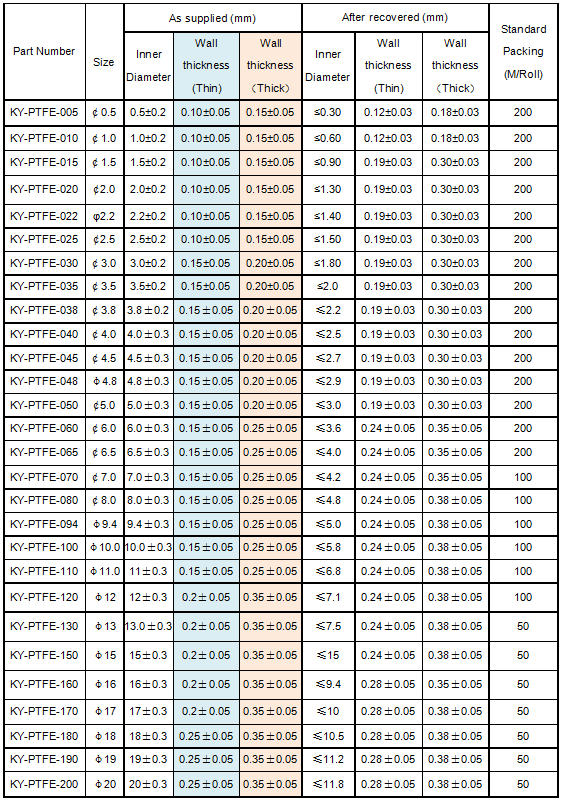

Product Specifications:

1.7:1 Shrink Ratio

4:1 Shrink Ratio

Product Performance Indicators:
