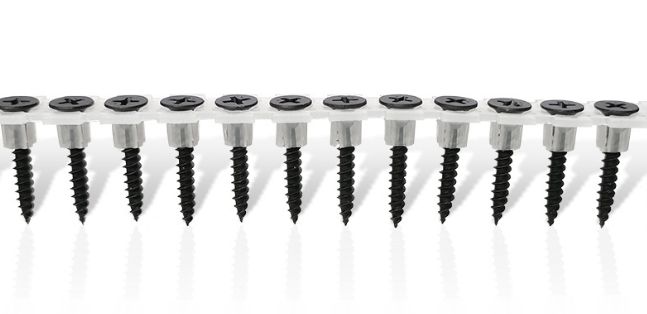

Collated Drywall Screws
Collated screws are individual screws that have been joined together in a long strip or coil by a plastic or metal strip, allowing them to be rapidly and efficiently fed into a compatible auto-feed screw gun. This "collating" process eliminates the need to manually handle each screw, leading to increased speed, productivity, and consistency in large-scale installation projects like drywall, decking, and flooring.
About Collated Screws:
- Coarse Thread / Fine Thread Specialist Screw
- Head: Countersunk Phillips Drive Bugle
- Finish: Black Phosphate/Zinc Plated
- Flexible plastic collated strip designed specifically for use with mechanical screw fastening machines
- Suitable for use with most makes of collated drywall guns
Collated Drywall Screws Specifications:
Thread Type: Coarse / Fine
Size: M2.5/M3.5/M3.9/M4/M4.2/M4.5/M4.8/M5/M5.5/M6.5
Length: 25mm/32mm/35mm/38mm/40mm/42mm/45mm/50mm/55mm/60mm/65mm

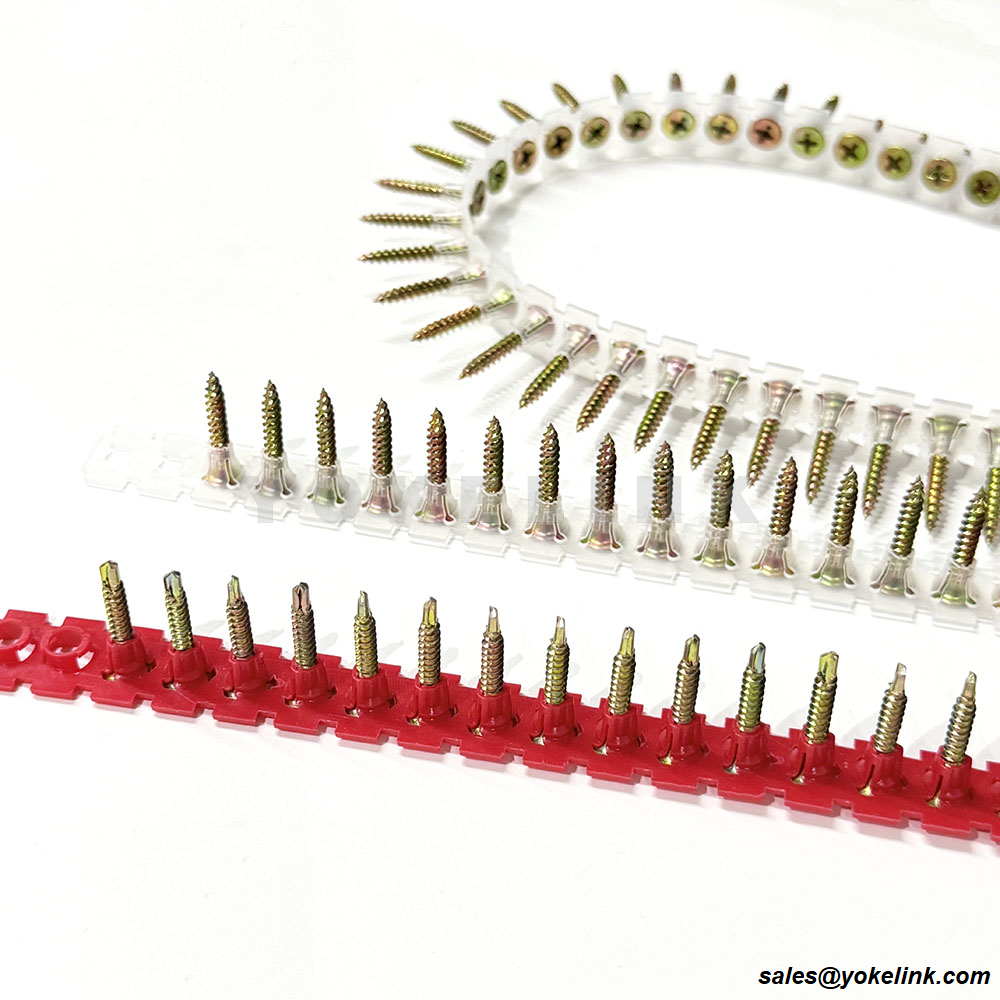

Finishing: Black Phosphated / Zinc Yellow / Electro Galvanised

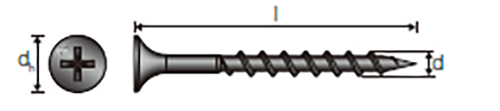

| Dimensions(mm) | Qty per Strip |

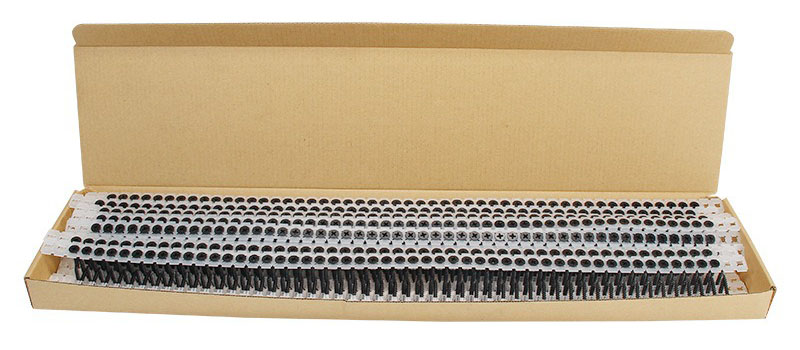

Qty per Box
|
||
| dh | d | I | ||
| 8.2 | 3.5 | 25 | 50 | 1000 |
| 8.2 | 3.5 | 35 | 50 | 1000 |
| 8.2 | 3.5 | 40 | 50 | 1000 |
| 8.2 | 3.5 | 45 | 50 | 1000 |
| 8.2 | 3.5 | 50 | 50 | 1000 |
| 8.2 | 3.9 | 25 | 50 | 1000 |
| 8.2 | 3.9 | 35 | 50 | 1000 |
| 8.2 | 3.9 | 40 | 50 | 1000 |
| 8.2 | 3.9 | 45 | 50 | 1000 |
| 8.2 | 3.9 | 55 | 50 | 1000 |
| 8.2 | 3.9 | 65 | 50 | 1000 |
How They Work
Collated drywall screws are drywall screws that are pre-connected in a continuous strip or coil (collated), designed to work with power tools like screw guns for fast installation. They are primarily used to attach drywall (gypsum board) to wall or ceiling studs efficiently.

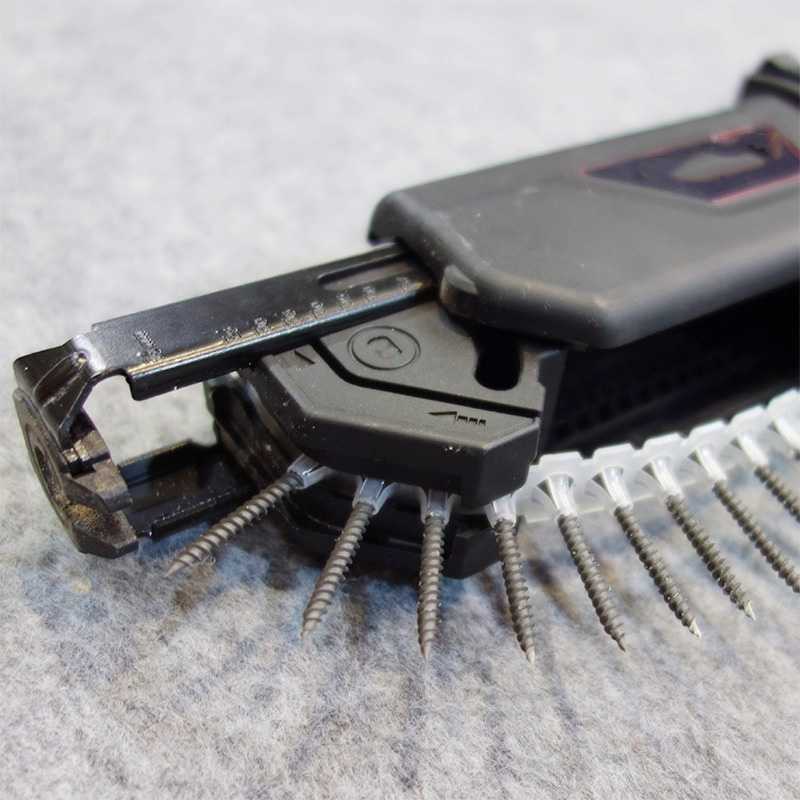

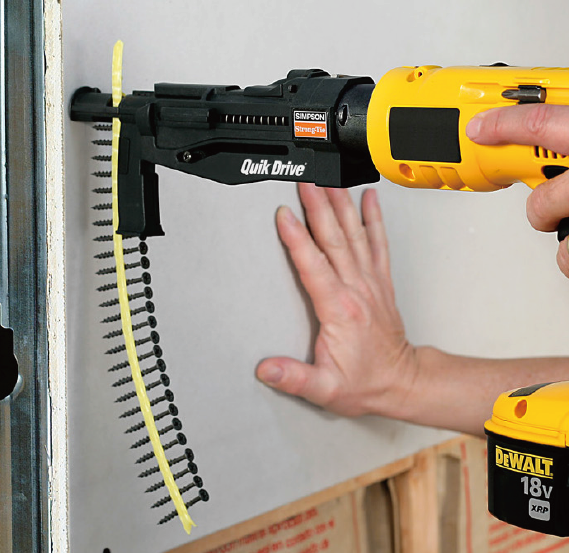

1. Joining: Screws are attached to a plastic strip, often in a coil or straight line, at the factory. 2. Attachment: The strip of collated screws is then loaded into a special attachment or screw gun. 3. Auto-Feed: As each screw is driven, the mechanism advances the strip, feeding the next screw into the driving position automatically.
1. What Are Collated Drywall Screws?
Collation form: They are held together by a thin plastic strip, paper tape, or wire coil. This forms a "roll" or "strip" of screws that can be loaded directly into a compatible screw gun.
Screw design: Like standard drywall screws, they have fine threads (to grip wood studs well) and a bugle head (to sink slightly into drywall without tearing the paper surface).
Tool compatibility: They require a collated screw gun (not a regular drill) – the tool automatically feeds one screw at a time as you work.
2. What Are They Used For?
Attaching drywall to studs: The main use – they secure gypsum boards to wooden or metal wall/ceiling studs. The collated design eliminates the need to pick up and load individual screws.
High-efficiency projects:
Ideal for large-scale jobs (e.g., commercial buildings, entire house renovations) where installing dozens or hundreds of drywall sheets requires fast, consistent screwing.
Reducing labor time: Workers don’t waste time handling loose screws, lowering fatigue and cutting overall installation time by 30% or more compared to manual screwing.
Common Applications:
Collated screws are particularly useful in applications requiring the rapid and repetitive installation of screws, including: Drywall installation, Decking and subflooring, Flooring, Cladding, and Framing and sheathing.
Ideal for fastening wood, sheetrock, composite boards, soft metals, and plastics. Designed for quick installation, this screw kit helps speed up your workflow and save valuable time on every project.
