Product details

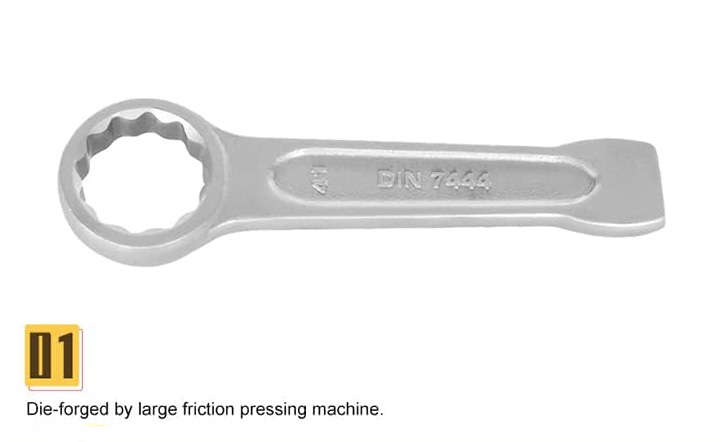

DIN 7444 Heavy-Duty Ring Wrench
DIN 7444 heavy-duty ring wrenches are high-strength striking tools that meet German standards and are designed for heavy-duty applications. They are typically forged from 40Cr-V chrome-vanadium steel or special steel, achieving a hardness of HRC 48-52 after heat treatment, offering both strength and durability.

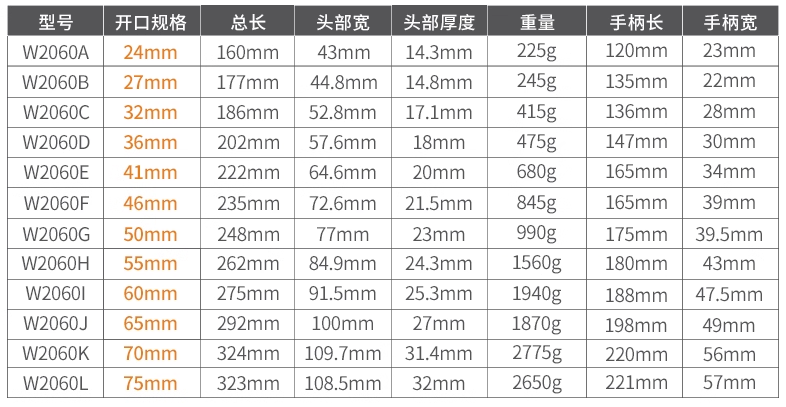

The 12-point ring-shaped snap-fit design prevents slipping and effectively transmits force. The handle is suitable for hammer strikes, enabling the tightening and removal of large bolts and nuts. The surface is phosphated or galvanized for rust and corrosion resistance. Available in sizes from 17mm to 160mm, they are widely used in heavy industries such as shipbuilding, petrochemicals, and mining.
Din 7444 Heavy-Duty Ring Wrench Features：
•Special heavy-duty short shank wrench for use
with hammer
• Striking end for heavy-duty applications
• Steel grey finish
• Special steel

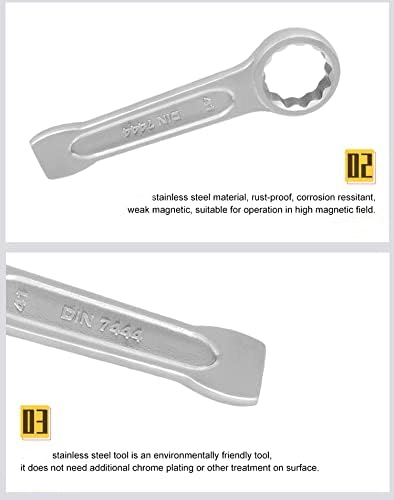

• Short and strong profiled handle

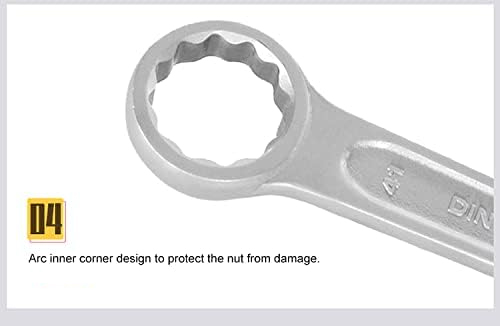

• 12-Point profile ring
• Standards: DIN 7444
Manufacturing Process for DIN 7444 Heavy-Duty Ring Wrenches
1. Raw Material Selection and Pretreatment

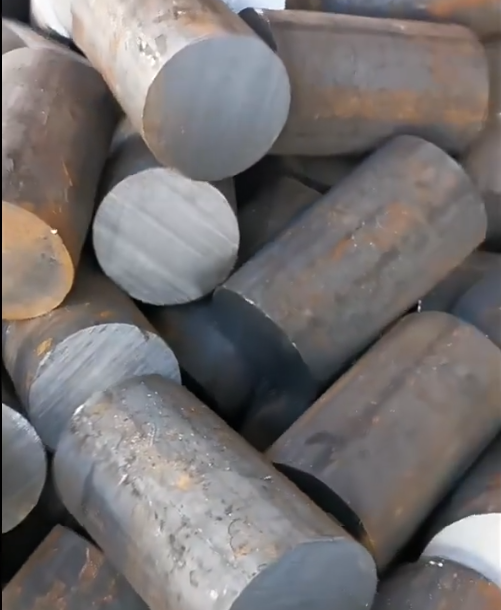

40Cr-V chrome-vanadium steel or an alloy structural steel of equivalent strength is preferred. This type of steel contains elements such as chromium and vanadium, ensuring strength and toughness after subsequent heat treatment.
The raw materials undergo flaw detection to eliminate internal cracks, impurities, and other defects, ensuring uniformity and reliability of the base material.
2. Forming Process

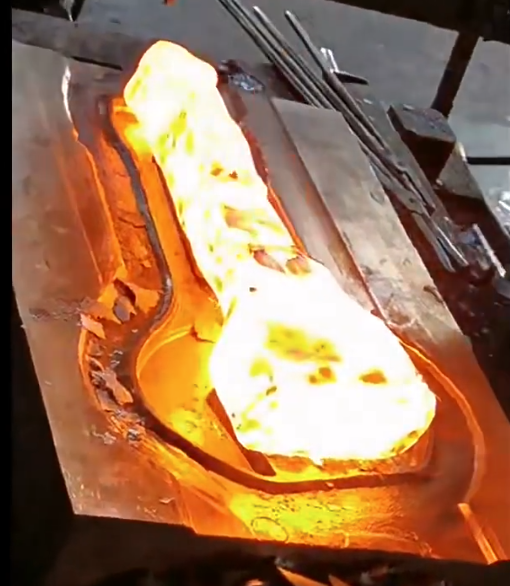

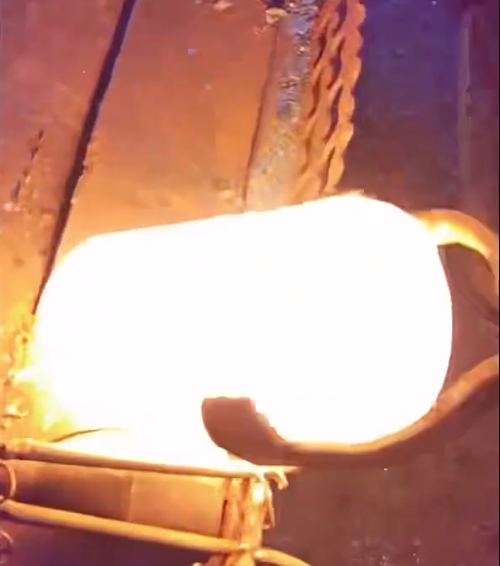

The hot die forging process is primarily used. A steel billet heated to a specific temperature is placed in a custom die and forged into the initial shape of the wrench using a press.
After forging, trimming is performed to remove flash generated by forging, resulting in a more regular shape for the wrench and paving the way for subsequent processing.
3. Precision Machining of Key Areas
The 12-point flanges of the wrench are milled or ground to ensure a perfect fit between the flange and the nut. The tolerances must be within the DIN standard to prevent slippage during use. The handle is polished or milled to ensure even force when striking and enhance grip and handling.
4. Heat Treatment
This process involves two core steps: quenching and tempering. During quenching, the wrench is heated to 850-900°C and then rapidly cooled to increase the steel's hardness. During tempering, the wrench is heated and held at 200-300°C to eliminate internal stresses and balance hardness and toughness, ultimately achieving a hardness of HRC 48-52.
After heat treatment, hardness and toughness testing are performed to ensure that each wrench meets strength requirements.
5. Surface Treatment and Quality Inspection
The surface is typically treated with phosphating or galvanizing. Phosphating creates a protective film that enhances rust resistance, while galvanizing provides both rust resistance and aesthetics.
Before shipment, each wrench undergoes multiple quality inspections, including dimensional accuracy testing, torque testing, and visual inspection, to ensure full compliance with DIN 7444 standards.
DIN 7444 Heavy-Duty Boxer Wrench Product User Guide
This wrench is designed specifically for the installation and removal of heavy bolts and nuts. Its use must adhere to the principle of "precise fit and standardized operation." The core content is divided into three sections: application scenarios, operating procedures, and precautions.

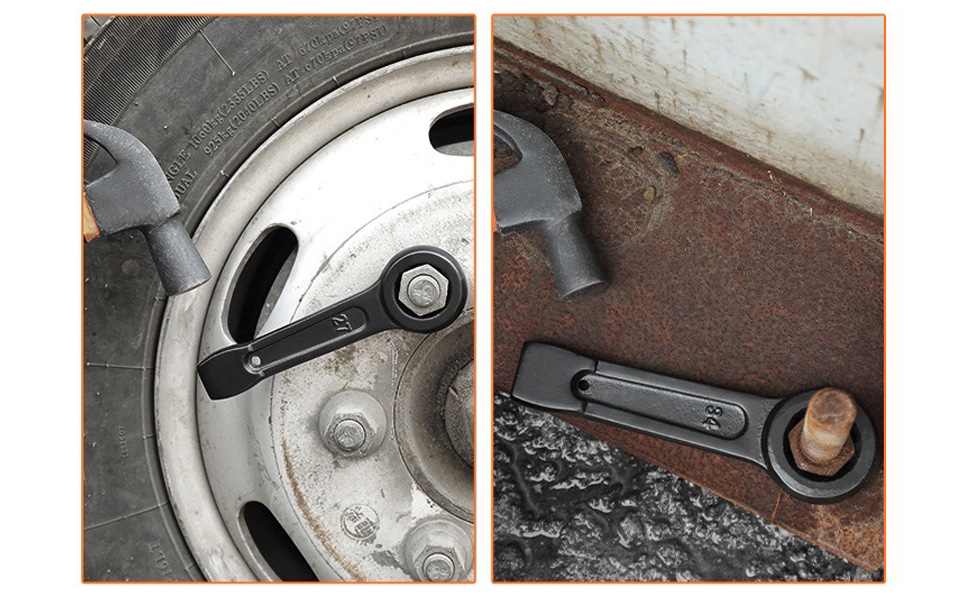

1. Application Scenarios
Heavy Industry: Tightening and removing large bolts in shipbuilding, petrochemical, and mining equipment.

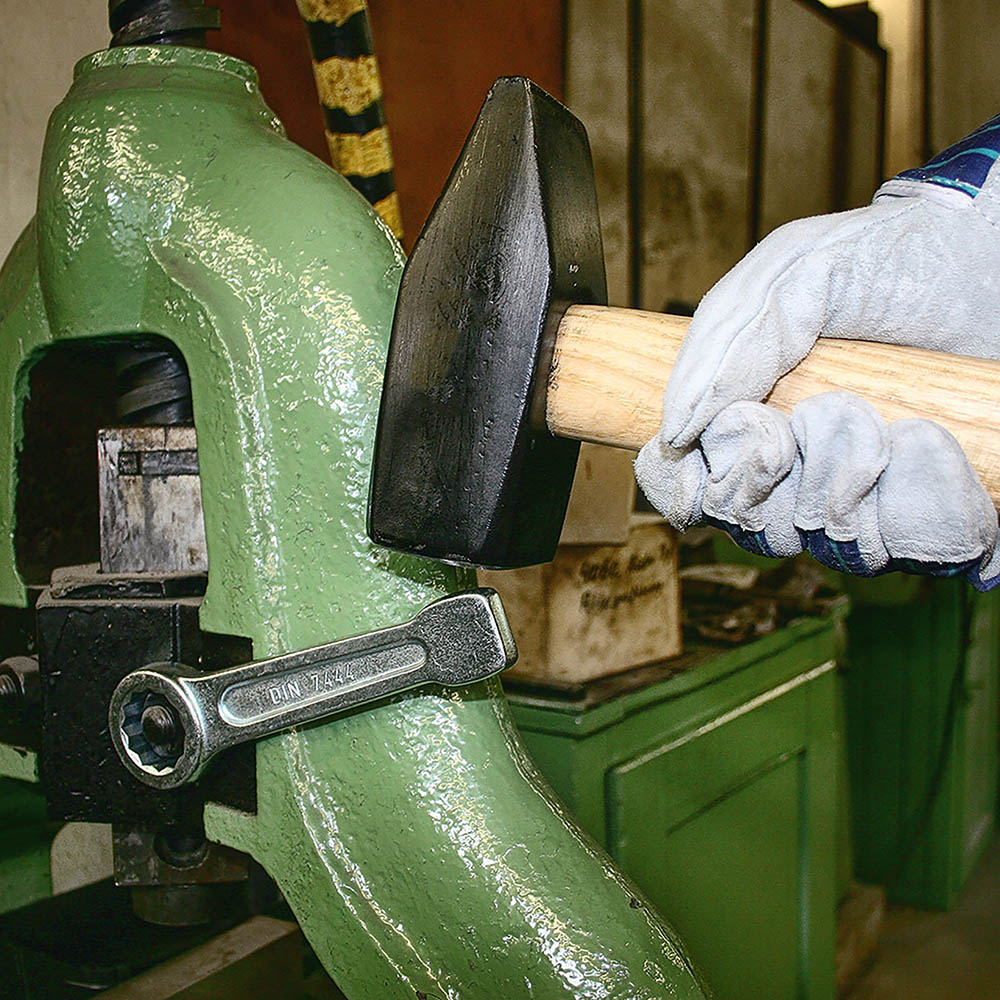

Specific Working Conditions: Suitable for applications where high torque is required and ordinary wrenches are insufficient, requiring the use of a hammer to assist in applying force.
2. Standard Operating Procedures
Selection and Adaptation: Select a wrench of the corresponding size based on the bolt/nut specifications, ensuring that the 12-point engagement ring fits the workpiece perfectly without looseness or misalignment.
Locking and Tightening: Align the wrench engagement ring with the hexagonal face of the bolt/nut and tighten firmly to prevent slippage during use. Applying Force: If tapping is necessary, apply force only to the designated tapping area on the wrench handle. Avoid tapping the latch or other non-load-bearing areas. When applying force manually, keep the force aligned with the wrench's centerline.
Complete Work: After disassembling or tightening, remove the wrench slowly to avoid damage to the workpiece or wrench due to falling.
Buy DIN7444 Heavy-Duty Ring Wrench from Yokelink
