Hello,
Are you still looking for the Infrared Binoculars Solutions up to 1200 meters? Now you see, it's JRT new Laser Range Finder Sensor measuring 1200m long range with 70% Reflectivity.
Some customers will use it in for Night Wision Binoculars or Thermal Imager. How about your application?

Some FAQs that customers care:
Q1: We are using the Arduino platform, do you by chance have any code or libraries to we could use to interface the range finder with the Arduino?
A2: Yes,JRT sensors all support apply to Arduino, sample code will be sent you for program logic reference.

Q2：Hello JRT,I would like solutions for measuring distances up to 1200m. Could you tell me which rangefinder modules can suit us?
A2：Yes, this TC22L us one of our New Laser Distance Sensor that can measure up to 1200m long range.

UART Port Configuration
USART Interface：
Baudrate：115200bps
Start bits：1 bit
Data bits：8 bits
Stop bits：1 bit
Parity：none
Flow control：none

Telescope Sensorsss Working Principle

The optical distance sensors achieve 600m long-range presence detection using a visible, focused laser beam spot. According to the latest version, customers can test the laser range components simply via using all available distance functions commond of the hexadecimal system. High resolution up to 1mm, the arduino distance measurement laser usually used to some samrt monitoring project.

Detailed parameters

Model: TC22L-1200m(b230217-2)

Measurement Range: 3-1200m, at 70%Reflectivity
Resolution: 0.1m
Frequency: 3Hz
Accuracy: +/-0.5m~+-1m

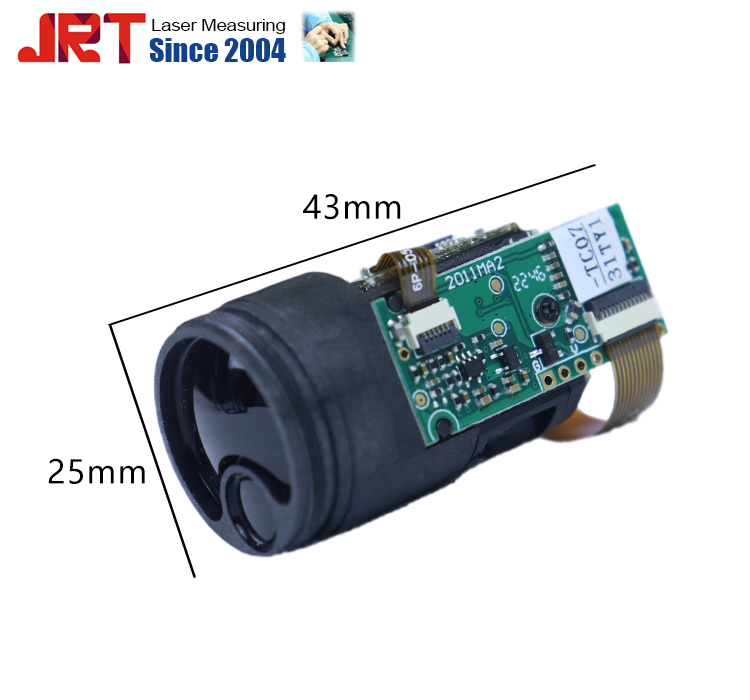

Size: 43*Φ22mm
Weight: 15 g
Operating Temperature: 0-50 ℃（Lower can be custimized）
Storage temperature: -20-50℃
Laser Class: Class I
Current: 100mA
Laser Type: 905nm
Power: 330mW, 3.3V
Baud rate: 115200bps(default)

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

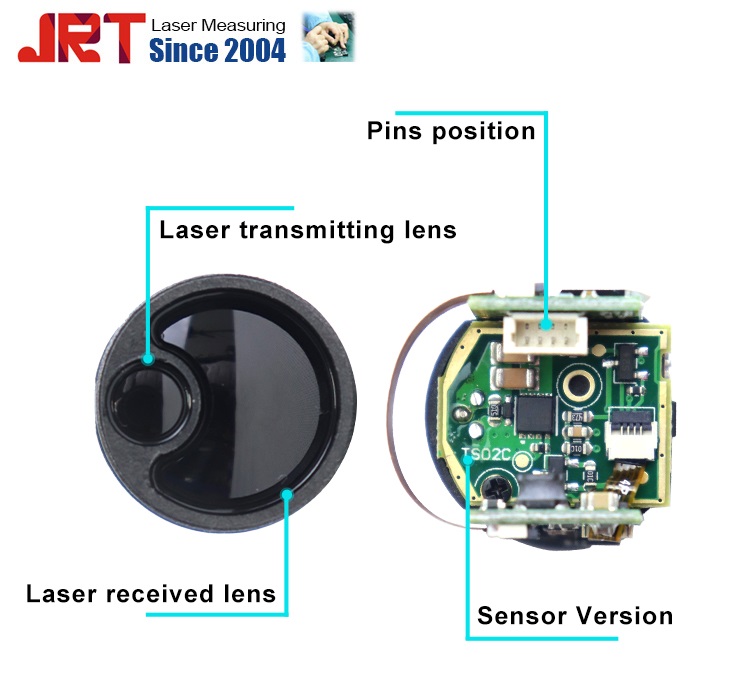

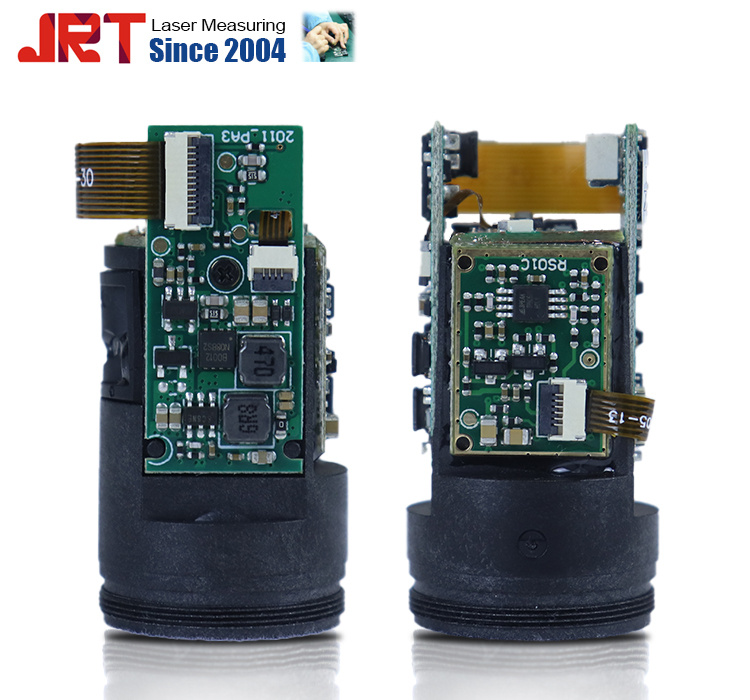

More Detailed Pictures:

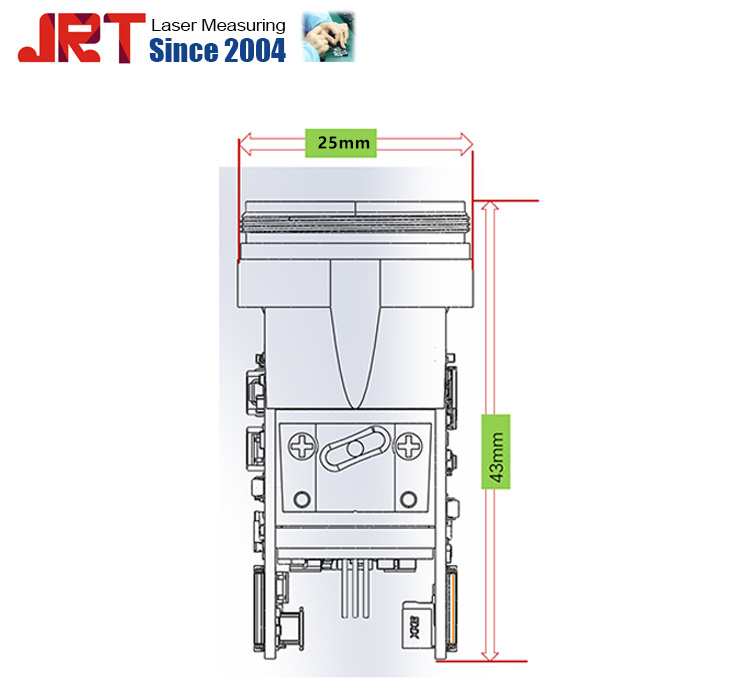

Diagram for the Laser Distance sensor:

Testing data from our cusomers
JRT Industrial Distance Sensor, we also called it long laser distance sensor, using single transmission single receving principle, low power consumptionan and high accuracy.

Feedbacks:
Customer to JRT:
Thank you,
TC22L works fine!
I would appreciate if you could send me the official invoice.
