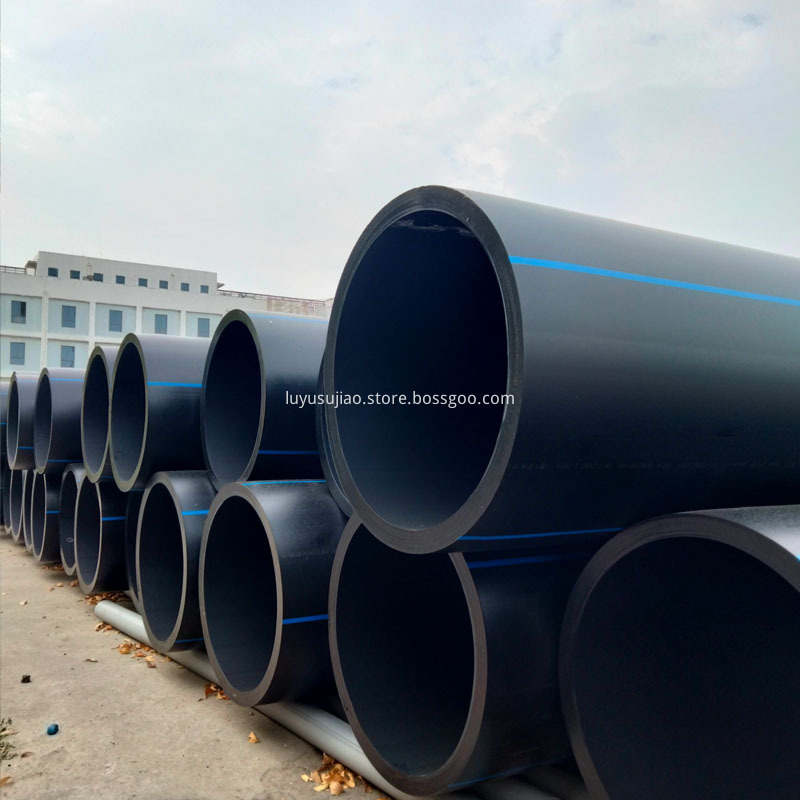

PE water pipe
3 month ago
Shandong Luyu Plastic Co., Ltd.
4 month
Product details
PE pipe precautions
1. ,HDPE Water Supply Pipes not be arranged on materials, products, and equipment that may cause combustion, explosion, or damage when in contact with water.
2. The installation location shall not hinder production operations, transportation, or the use of buildings.
3.PE water pipe not pass through flues or air ducts.
4. Plastic water pipe is not allowed to hang it in food warehouses, valuable commodity warehouses, ventilation rooms, and power distribution rooms.
5. Waterproof measures should be taken when PE water supply pipelines pass through the exterior walls of basements or underground structures.
6. Efforts should be made to avoid crossing rooms with high hygiene and installation requirements, such as bedrooms and wards, and to avoid approaching interior walls adjacent to bedrooms.
7. It shall not be arranged above the main and auxiliary food operation rooms in the living room, canteen, and kitchen; It cannot be installed in food storage rooms, halls, libraries, or factories with special hygiene requirements.
8. When there is a requirement for anti condensation in buildings, anti condensation measures should be taken in places where there is a possibility of condensation on the outer wall of PE water supply pipes.
HDPE Pipe for Water Supply product specifications
| Outside | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa |
| Diameter | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) | Thickness (mm) |
| Dn(mm) | ||||||
| 20 | 2 | 2.3 | 2.3 | |||
| 25 | 2.3 | 3 | ||||
| 32 | 2.3 | 2.4 | 3 | 3.6 | ||
| 40 | 2.4 | 3 | 3.7 | 4.5 | ||
| 50 | 2.4 | 3 | 3.7 | 4.6 | 5.6 | |
| 63 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 | 14 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 | 35.2 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | 70.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 |
PE water supply pipe construction plan
① Avoid passing through expansion joints and settlement joints. If passing through, corresponding technical measures should be taken to prevent the pipeline from being damaged due to settlement or expansion of the building's internal materials.
② lt should be avoided to arrange pipelines that may be affected by equipment vibration or heavy objects, so pipelines should not pass through the foundation of production equipment.
③ Pipelines should generally be buried underground or laid on the ground or exposed under floor slabs. If there are special requirements for construction or technology, they can be concealed in pipe troughs, pipe wells, pipe trenches, or suspended ceilings, but they should be easy to install and maintain.
④Try to avoid crossing PE water supply pipes with other pipelines or equipment as much as possible. When the watersupply pipe and the discharge pipe are arranged at the same place to enter and exit the building, in order to facilitate maintenance and avoid or reduce the phenomenon of soil moisture corrosion
and pollution of the water supply pipe caused by leakage of the drainage pipe, the horizontal distance between the PE water supply pipe and the outer wall of the discharge pipe shall not be less than 1.0m.
