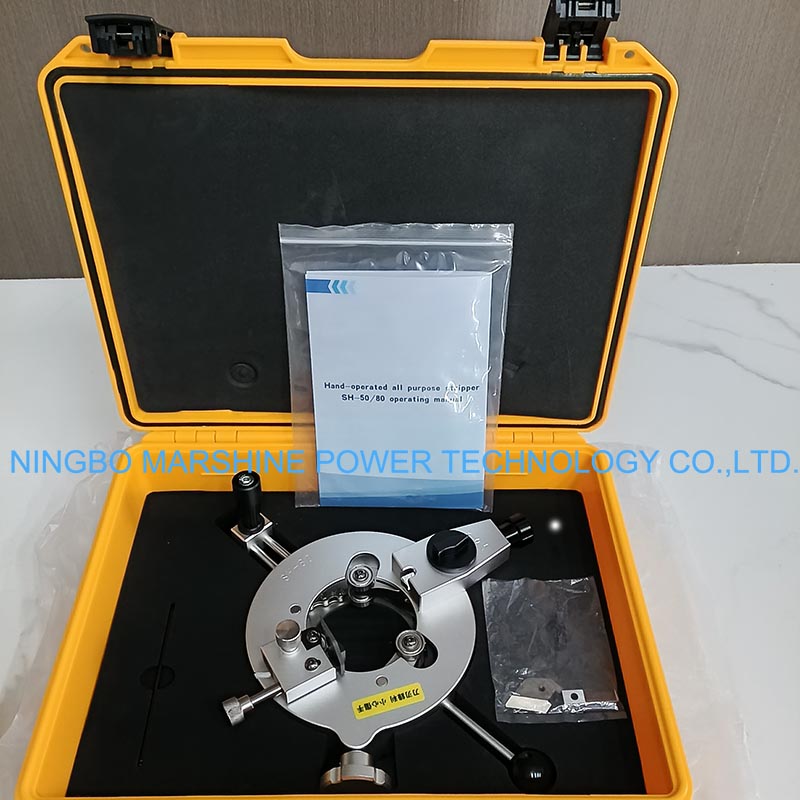

SH-80 Multi-Function Hand Tool Cable Stripping Machine

The MARSHINE insists on manufacturing the high-precision tools for the electrical, cable installation and the power-line construction applications. Among it, the SH-80 Multi-Function Hand Tool Cable Stripping Machine as a professional cable preparation device, and it can engineer to strip both the outer semi-conductive layer and the main insulation from the medium to the high-voltage cables. It also provides the users with a rugged and efficient means of the preparing cable ends.

This MARSHINE SH-80 Cable Stripping Tool can adjust for the cable diameters ranging from 48 mm to 80 mm.

The cable stripper supports a maximum semi-conducting layer peel length of 50 mm.

It maximum peeling depth is 1.5 mm when removing the semi-conductive layer.

The overall dimensions of the unit are approximately 345*435*165 mm, which can give a compact footprint for the site-use.

The weight of the device is around 2.5 kg, which make it portable enough for the field engineers.

The change-out blades and the adjustable guides enable the tool to maintain the precision under the long term repeat works across many cable ends.

This MARSHINE SH-80 Cable Stripper is an ideal choice for handling the medium size ends of the high voltage power cables in substation construction.

It works effectively for stripping the semi-conducting layer of 48–80 mm diameter cables ahead of the termination installation.

It serves well for the main insulating-layer removing operation when further jointing or connector fitting is required.

It supports the factory-based cable production lines where the large volumes of the cables need the precise end-preparation.

Product Parameter

Model	SH-80
Application Range(mm)	48-80
Max. Stripping Depth(mm)	1.5
Main Insulation Depth(mm)	20
Min. Semiconductor layer Length(mm)	50
Main Materials	Aluminum
Net Weight(KG)	2.5
Gross Weight(KG)	5
Dimension(mm)	345435165

SH-80 Multi-Function Hand Tool Cable Stripping Machines
