1000m Distance Detection Long Range Ir Sensors TTL

1km Distance Sensor Types Long Laser Measure ToF

Are you looking for a long distance sensor lidar to would allow to measure the drone/UAV height? Yes, the long distance laser measure module with 1000 m range, ±1 m accuracy, UART output, 905nm laser, is good for drone applications. If you need our more advice on choosing the right model, welcome to contact us.

Time-of-Flight (ToF) long distance sensors, designed for long-distance measurement applications such as those covering up to 1 kilometer, utilize advanced optical technology to achieve high precision and accuracy. These sensors function by emitting a laser pulse towards the target object and measuring the time taken for the light to reflect back, converting this period into distance using the speed of light. This non-contact method ensures minimal distortion from environmental factors while delivering rapid measurements at vast ranges. Often used in industrial applications, such underlying technologies benefit surveying, mining operations, or any scenario requiring extensive spatial analysis. Adopting state-of-the-art components like avalanche photodiodes enhances their sensitivity and reliability even under suboptimal lighting conditions. Furthermore, integrating such systems with automated workflows can significantly enhance efficiency and decision-making processes across various sectors. As such, ToF laser measure sensors exemplify cutting-edge solutions within advanced measurement innovation frameworks.

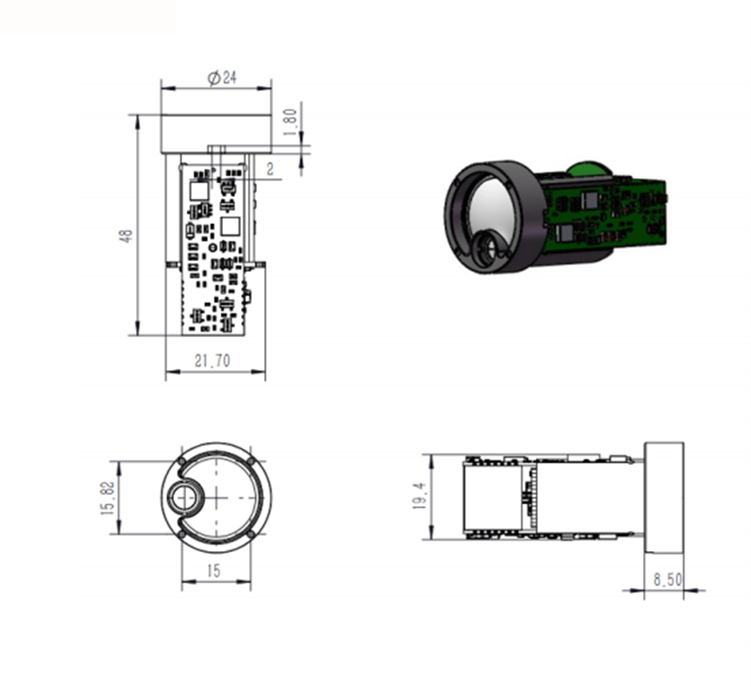

Machinical Dimensions

Technical Parameters:

Laser Wavelength: 905nm

Measuring Range: 5m-1000m

Measurement Accuracy: 5≤L≤100m: ±0.7m

                                       L＞100m: ±(0.7+L*0.4%)m

Display Resolution: 0.1m

Measurement Frequency: 1-3Hz

Measurement Success Rate: ≥98% (5-400m);

                                               ≥90% (401-1000m)

Divergence Angle: ≤10mrad

Communication Interface: UART-TTL (3.3V)

Baud Rate: 9600/115200bps selectable

Startup Time: ≤400ms

Protection Rating: IP67 (front lens)

Shock Resistance: 1000g/ms (10 times/s in optical axis direction)

ESD Rating: (Lens position)

Contact discharge 6kV

Air discharge 8kV

Safety Standard: IEC:60825-1 Class I

Electromagnetic Compatibility: Complies with CE/FCC certification

Environmental Protection: RoHS2.0

Physical characteristics

Weight: ≤25g

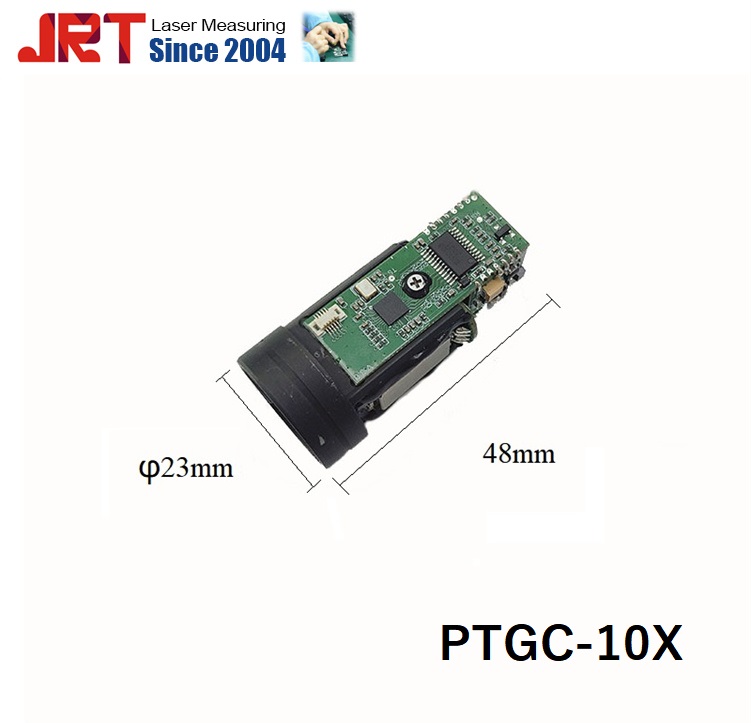

Dimensions: Ф23mm*48mm

Transmitting Aperture: 6.6mm

Receiving Aperture: 18mm

Electrical Source

Power Supply Voltage: 3.3+/-0.1V

Operating Power Consumption: ≤1.1W

Standby Power Consumption: ≤350mW

Environmental Features

Operating Temperature: -20℃-50℃

Storage Temperature: -45℃-70℃

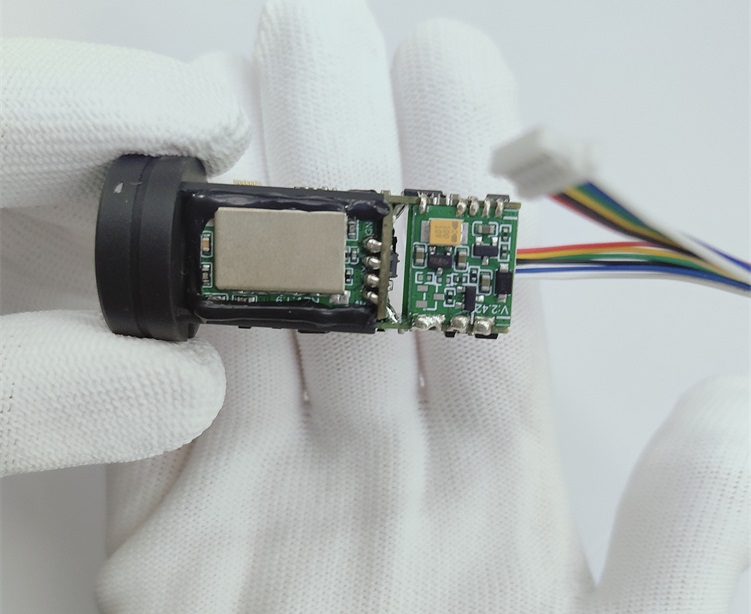

Close Pins Picture

Applications

This industrial-grade laser rangefinder sensor can be widely used in drones, agriculture and forestry, night vision devices, thermal imagers, power inspection, security monitoring, urban management, safety and security, fire fighting, and geological exploration.
