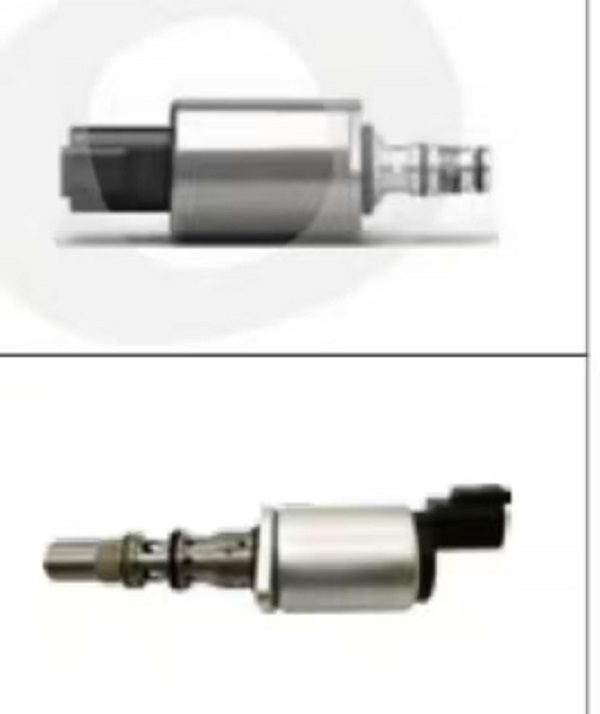

96030 ISPPCD04-001 24V PA50BAR Directional Control Valve

2 month ago

4 0 

4 year

Product details

1. Model Composition and Naming Convention

• 96030: Likely an internal brand or manufacturer code; verification via official channels is required.

• ISPP: May represent a product series or functional characteristic (e.g., "Intelligent Proportional Control"); refer to the brand manual for specifics.

• CD04-001:

• CD: Typically denotes "Directional Control Valve" (abbreviation).

• 04: May indicate the number of ports (e.g., 4-way) or a design code.

• 001: Version or serial number.

• 24V: Solenoid valve operating voltage is 24V DC, suitable for industrial automation systems.

• PA50BAR:

• PA: May refer to "Pressure Actuated" or "Nominal Pressure."

• 50BAR: Rated working pressure of 50 bar (≈725 PSI), designed for medium-to-high-pressure hydraulic systems.

2. Technical Specifications and Functional Characteristics

• Type: Solenoid-Operated Directional Control Valve, controlling fluid direction via electromagnetic force.

• Control Method:

• Electromagnetic drive (24V DC) with fast response, ideal for automation.

• May support proportional control (confirm if the model includes proportional functionality) for continuous flow/pressure adjustment.

• Pressure Rating:

• Rated working pressure: 50BAR; adaptable to high-pressure hydraulic systems (e.g., construction machinery, injection molding machines).

• Verify peak pressure (e.g., 70BAR) and low-pressure sealing performance.

• Ports and Flow:

• Port configuration depends on "CD04" (e.g., 4-way valve).

• Flow parameters require reference to the model manual (e.g., max flow rate: 50L/min or higher).

• Environmental Adaptability:

• Temperature range: Typically -40°C to +80°C (confirm for the specific model).

• Protection grade: Likely IP65 (dust/water-resistant) for harsh industrial environments.

3. Applications

• Industrial Automation: Hydraulic control of robotic arms, workpiece clamping in assembly lines.

• Construction Machinery: Hydraulic systems in excavators, cranes.

• Hydraulic Equipment: Mold opening/closing control in injection molding and die-casting machines.

• Special Scenarios: High-pressure, explosion-proof environments (e.g., mining equipment, marine systems).
