Product details

Product Introduction:

KDAS type sealing ring is a five-piece combined compression piston sealing ring composed of a special-shaped sealing ring,two retaining rings and two guide support rings.It has excellent sealing performance and is suitable for sealing pressure on both sides.It is suitable for pistons with rapid energy increase.It will not be squeezed into the radial sealing gap during sealing and can prevent the sealing element from twisting.

Technical parameters:

Working pressure:≤40MPa

Working temperature:-30℃~120℃

Surface speed:≤0.5m/s

Materials:

Sealing element:75 degree hardness of nitrile rubber NBR

Retaining ring:Nylon PA or reinforced POM

Guide ring:nylon PA or POM

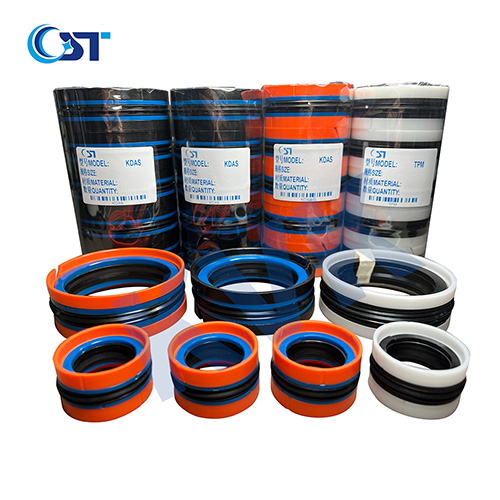

Product Picture:

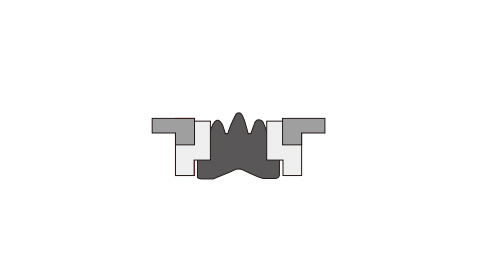

Section:

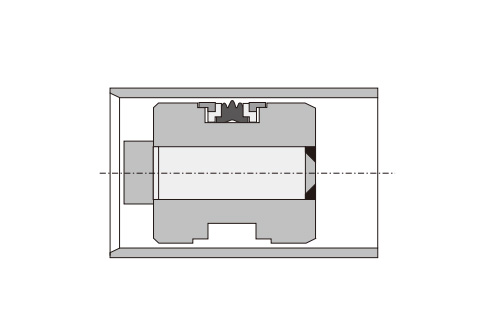

Assembly diagram:
