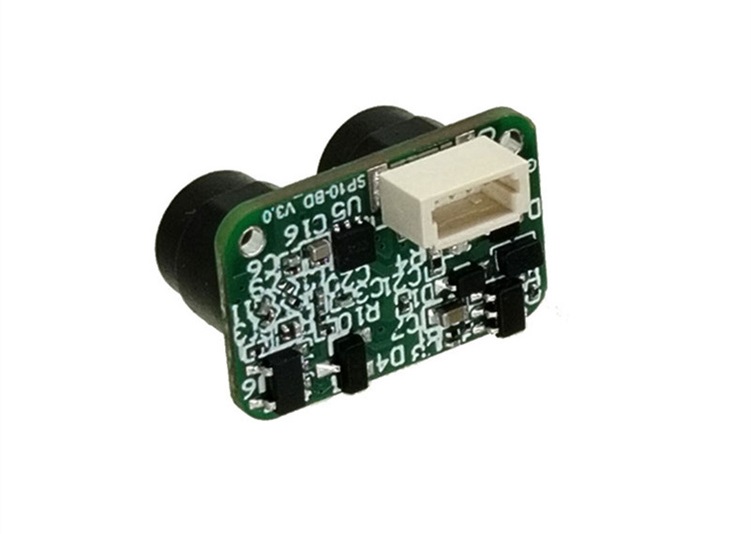

200Hz DTOF 50m Automotive Radar Detection Range Sensor

Are you looking for a 50m DTOF radar detection range sensor with speed measurement capability? Yes, the laser range finder sensor is able to measure the speed up to 200Hz of the targeted obiect.The dtof ranging sensor has USB connectivity, software and driver. It can be used on a drone project. How about your project? If you need two pieces of this DTOF Radar sensor to test, please contact us.

The 200Hz DTOF (Direct Time-of-Flight) 50m Automotive radar module represents a significant advancement in radar technology for automotive safety systems. This cutting-edge distance sensor, operating at a frequency of 200Hz, offers precise and rapid detection capabilities essential for autonomous driving applications.

With an extensive range of up to 50 meters, it ensures accurate detection of objects in various environmental conditions, enhancing vehicle navigation and collision avoidance systems. The integration of Direct Time-of-Flight technology enables high resolution and reliability by measuring the time interval between emitted signal pulses and their reflections from objects. Such precision facilitates real-time decision-making processes within vehicular AI systems, supporting smoother traffic flow and reduced accident rates.

Furthermore, its robust design allows for seamless installation in modern vehicles, contributing to increased efficiency and enhanced safety features that meet current regulatory standards in automotive technologies.

Key parameters:

1. Support secondary-development, accurate

Connection interface: UART

Accuracy: ±3cm (0.2~6m)

High frequency: 500 Hz

2.Small, long range

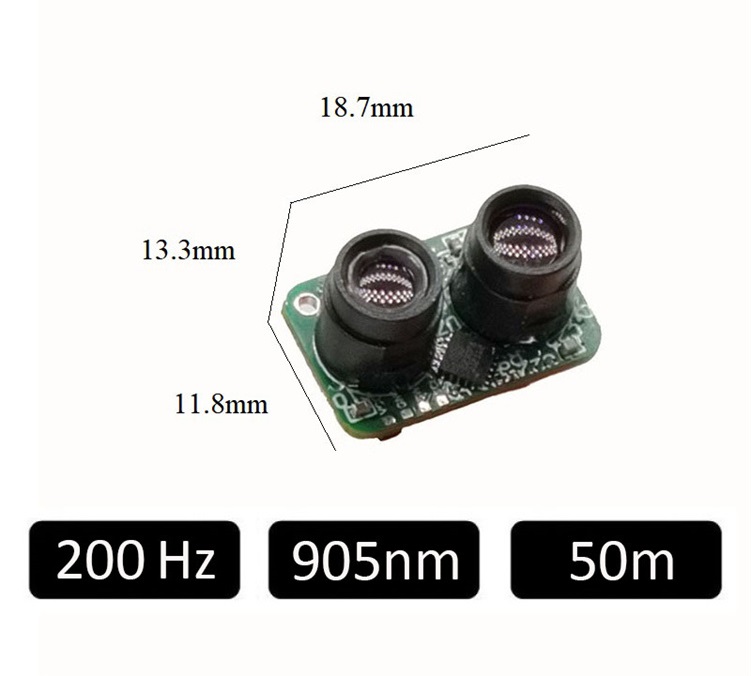

Size: 18.7*11.8*13.3mm

Measuring range, max up to 50 meters

Detailed parameters

1 Ranging: 0.03-50m (90% reflectivity)

2 Range hole: 3cm

2 Range frequency: 200Hz

3 Ranging accuracy: ±3cm (0.2~6m), 1%(≥6m)

4 Repeatability precision: ±10mm

  Resolution ratio: 1mm

5 Environmental light resistance: 100K Lux

6 Laser wave length: 905nm

7 Laser level: Class1

8 Angle of field: 1.7°

9 Indicate the laser wavelength: N/A

10 Indicate laser level: N/A

11 Levels of protection: N/A

12 Cable specifications: 4pin 1.25mm terminal, 10cm tinned loose wire

23 Customization scope: Supports customization of externalstructure, input voltage and output protocol

1. Mechanical characteristics:

Size (length x width x height): 18.7x11.8x13.3mm

Weight: 2g

2. Power Source:

Input voltage: 3.3-5V

Peak point current: 120mA

Average current: 80mA

Average power consumption: 0.4W

3. Interfaces:

Communication mode: UART TTL / IIC

3.2 Mechanical Interface

4. Communication Protocol:

Default rate: 46,608 (adjustable)

data bit: 8

stop bit: 1

even-odd check: not have

5. Environmental Parameters:

Working temperature: -30℃~+65℃

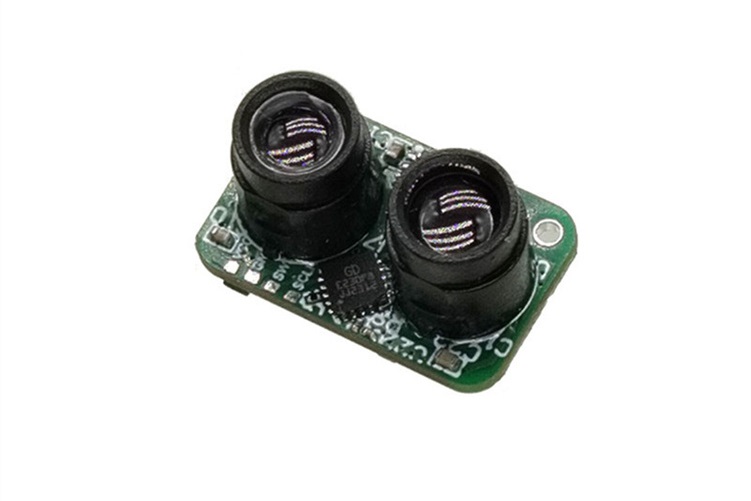

More Detailed Pictures:

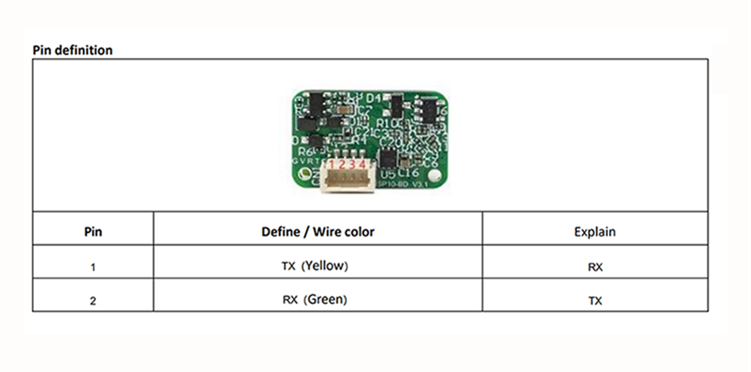

 Pins
